| Prod Model: |
abc cable |
| Voltage: |
High Voltage |
| Structure: |
1*3 1*7 1*19 1*37 |
| Product Name: |
Covered Line Wire PVC/XLPE Insulated ABC Cables |
| Usage: |
Power Transimision |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Application: |
Overhead |
| Conductor Material: |
Aluminum |
| Insulation Material: |
PVC |
| Certification: |
BV |
| Range Of Application: |
Overhead |
| Brand: |
Rmjt |
Product Description

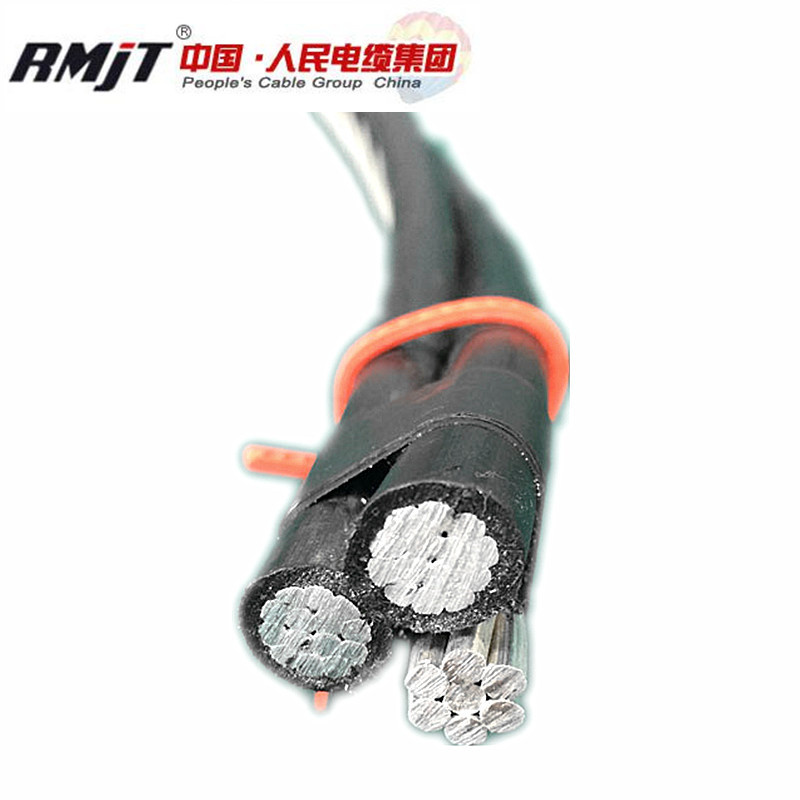

Overhead aerial bundled cable with XLPE insulated duplex / triplex / quadruplex
1.Application
Covered line wire is used primarily for 600v secondary overhead power distribution lines. It is not an electrically insulated conductor and often considered a bare conductor.
The aluminum conductors are 1350-H19 aluminum, 6201-T81 Aluminum Alloy, or ACSR conductors, concentrically stranded and covered for weather proofing with polyethylene, high density polyethylene (HDPE) or cross-linked polyethylene(XLPE).
2.Standard:
ASTM B-230 - Aluminum 1350-H19 Wire for Electrical Purposes
ASTM B-231 - Concentric-Lay-Stranded Aluminum Conductors, Coated-Steel Reinforced (ACSR).
ASTM B-1248 - Polyethylene Plastics Molding and Extrusion Materials.
ASTM C-8.35 - Specifications for Weather-Resistant Polyethylene-Covered Wire and Cable.
ICEAS-61-402
3.Specification
| Covered line Wire ( Bare Overhead Conductor ) |
|
| Code Name | Size | No. of wires | Insulation Thickness (mm) | Overall
Diameter
(mm) | Rated Strength (kg) | Nominal Weight (kg/km) | Allowable Ampacity+
A |
|
|
| AWG or kcmil | Aluminum | LDPE | HDPE | XLPE |
| AAC |
| Plum | 6 | 7 | 0.762 | 6.198 | 255 | 36.61 | 50.66 | 51.27 | 51.27 | 100 |
| Apricot | 4 | 7 | 0.762 | 7.239 | 400 | 58.19 | 75.57 | 76.33 | 76.33 | 135 |
| Peach | 2 | 7 | 1.143 | 9.703 | 612 | 92.56 | 126.09 | 127.55 | 127.55 | 180 |
| Nectarine | 1 | 7 | 1.143 | 11.481 | 789 | 116.67 | 167.31 | 169.52 | 169.52 | 210 |
| Quince | 1/0 | 7 | 1.524 | 12.395 | 903 | 147.48 | 203.7 | 206.14 | 206.14 | 240 |
| Haw | 1/0 | 19 | 1.524 | 12.522 | 980 | 147.48 | 204.49 | 206.96 | 206.96 | 240 |
| Orange | 2/0 | 7 | 1.524 | 14.834 | 1139 | 186.02 | 257.9 | 261.02 | 261.02 | 280 |
| Ironwood | 2/0 | 19 | 1.524 | 13.691 | 1211 | 186.02 | 250.41 | 253.21 | 253.21 | 280 |
| Fig | 3/0 | 7 | 1.524 | 16.307 | 1377 | 233.64 | 315.53 | 319.08 | 319.08 | 320 |
| Lemon | 3/0 | 19 | 1.524 | 14.986 | 1501 | 233.64 | 306.53 | 309.7 | 309.7 | 320 |
| Olive | 4/0 | 7 | 1.524 | 16.307 | 1728 | 296.14 | 378.04 | 381.58 | 381.58 | 370 |
| Pomegranate | 4/0 | 19 | 1.524 | 16.459 | 1823 | 296.14 | 379.09 | 382.69 | 382.69 | 370 |
| Sassalras | 250 | 19 | 1.524 | 17.628 | 2043 | 348.68 | 439.88 | 443.84 | 443.84 | 420 |
| Mulberry | 266.8 | 19 | 1.524 | 17.653 | 2182 | 372.19 | 463.59 | 467.55 | 467.55 | 430 |
| Basswood | 300 | 19 | 1.524 | 18.999 | 2404 | 419.66 | 520.91 | 525.3 | 525.3 | 478 |
| Anona | 336.4 | 19 | 1.524 | 19.964 | 2697 | 469.51 | 578.04 | 582.75 | 582.75 | 495 |
| Chinquapin | 350 | 19 | 1.524 | 20.269 | 2790 | 488.12 | 598.98 | 603.79 | 603.79 | 525 |
| Molles | 397.5 | 19 | 2.032 | 22.454 | 3123 | 555.08 | 707.29 | 713.88 | 713.88 | 550 |
| Sumac | 450 | 37 | 2.032 | 23.673 | 3719 | 628 | 791.79 | 798.89 | 798.89 | 600 |
| Huckleberry | 477 | 37 | 2.032 | 24.257 | 3810 | 665.21 | 834.63 | 841.98 | 841.98 | 610 |
| ACSR |
| Walnut | 6 | 6/1 | 0.762 | 6.553 | 540 | 36.64 | 69.94 | 71.43 | 71.43 | 105 |
| Butternut | 4 | 6/1 | 0.762 | 7.874 | 844 | 58.04 | 107.15 | 107.15 | 107.15 | 135 |
| Hickory | 4 | 7/1 | 0.762 | 8.052 | 1070 | 58.04 | 120.54 | 122.03 | 122.03 | 135 |
| Pignut | 2 | 6/1 | 1.143 | 10.312 | 1293 | 92.27 | 175.6 | 177.09 | 177.09 | 180 |
| Beech | 2 | 7/1 | 1.143 | 10.643 | 1651 | 92.27 | 199.41 | 199.41 | 199.41 | 180 |
| Chestnut | 1 | 6/1 | 1.143 | 11.303 | 1610 | 116.37 | 17.27 | 218.76 | 218.76 | 210 |
| Almond | 1/0 | 6/1 | 1.524 | 13.157 | 1987 | 146.73 | 282.75 | 284.24 | 284.24 | 235 |
| Pecan | 2/0 | 6/1 | 1.524 | 14.402 | 2404 | 184.98 | 348.23 | 349.72 | 349.72 | 290 |
| Filbert | 3/0 | 6/1 | 1.524 | 15.799 | 3003 | 233.34 | 430.08 | 433.05 | 433.05 | 305 |
| Buckeye | 4/0 | 6/1 | 1.524 | 17.348 | 3787 | 394.21 | 531.27 | 535.74 | 535.74 | 345 |
| Hackberry | 266.8 | 18/1 | 1.524 | 18.517 | 3121 | 372.63 | 525.32 | 528.3 | 528.3 | 356 |
| AAAC |
| Maple | 6 | 7 | 0.762 | 6.553 | 503 | 42.41 | 59.53 | 61.01 | 61.01 | 78 |
| Hornbeam | 4 | 7 | 0.762 | 7.874 | 798 | 67.56 | 89.29 | 90.78 | 90.78 | 145 |
| Linden | 2 | 7 | 1.143 | 10.312 | 1270 | 107.44 | 147.33 | 147.33 | 147.33 | 190 |
| Oilnut | 1/0 | 7 | 1.524 | 11.887 | 2023 | 170.99 | 238.11 | 247.03 | 247.03 | 250 |
| Waterash | 2/0 | 7 | 1.524 | 14.402 | 2445 | 215.63 | 291.68 | 302.01 | 302.01 | 290 |
| Shellbark | 3/0 | 7 | 1.524 | 15.799 | 3080 | 271.59 | 358.65 | 370.55 | 370.55 | 335 |
4.Packing
Packing in wooden drums,steel wooden drums or as customer's requirement.
5.Customer Visit
We have a professional sales team with each of them has engaged in this job for 3-10 years, so that we can provide the comprehensive and professional technology for you. With the perfect quality and after sales service, till now we have exported to more than 80 countries, welcome to visit us and establish win-win establish relationship!
6.Production process:
AAC conductor producing process is drawing stranding and cabling,our factory possess 2 subsidiaries,Zhulin factory is professional bare conductor workshop with 20 production line.
7.Certificate
As first rank of the cable supplier in China, we have obtained CCC, ISO9001, ISO14001, OHSAS certificates, passed the SGS and BV test, and our brand "RMJT" be given China famous brand.
