| Prod Model: |
DA-ABC004 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Specification Type: |
ABC-070mm |
| Conductor Type: |
Aluminium Stranded Wire |
| Size: |
1.5-800mm2 |
| ABC Standard: |
IEC61089;Nfc33-209;GB12527-9 |
| Type Of Conductor: |
Stranded |
| Core Material: |
Aluminium Wire |
| Voltage Type: |
Low Voltage, Medium Voltage |
| Color: |
as Customer Requirement |
| Guarantee: |
17 Years |
| Manufacturer: |
6 Years |
| Voltage: |
Low and Medium Voltage Cable |
| Current: |
DC & AC |
| Application: |
Telecommunication |
| Certification: |
TUV |
| Model: |
ABC-070mm |
| Brand: |
Dayuan Brand |
| Sheath Material: |
No Jacket |
| Insulation Material: |
XLPE/PE/PVC |
| Wire Core Material: |
Aluminium Stranded Conductor |
Product Description

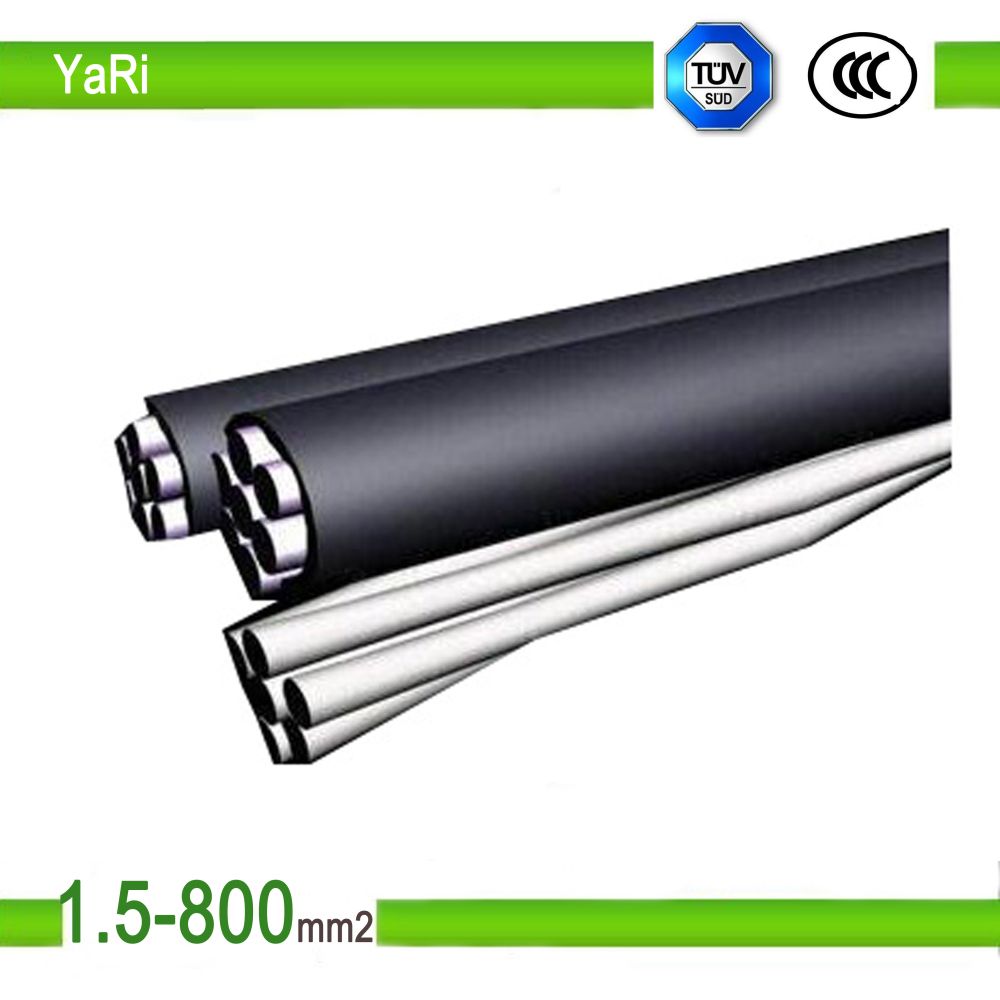

0.6/1kv 50mm2 overhead abc power cable/aerial bundle cable
ABC Cable:
We have one big workshop to produce the raw material: aluminium wire rod, many company buy it from us to produce various cable so that our monthly turnover of it has up to 100 million!
So our price is very competitive and can gurantee the delivery time!
Applications of twisted abc cable
Primarily used for 120 volt overhead service applications such as street lighting, outdoor lighting, and temporary service for construction. To be used at voltages of 600 volts phase-to-phase or less and at conductor temperatures not to exceed 75°C for polyethylene insulated conductors or 90°C for cross-linked polyethylene (XLPE) insulated conductors.
Specification of twisted abc cable
service drop cable meets or exceeds the following ASTM specifications:
· B-230 Aluminum Wire, 1350-H19 for Electrical Purposes.
· B-231 Aluminum Conductors, Concentric-Lay-Stranded.
· B-232 Aluminum Conductors, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR).
· B-399 Concentric-Lay-Stranded 6201-T81 Aluminum Alloy Conductors.
· B-901 Compressed Round Stranded Aluminum Conductors Using Single Input Wire
Construction of twisted abc cable
Conductors are concentrically stranded, compressed 1350 H-19 aluminum. Insulated with either polyethylene or cross-linked polyethylene (XLPE). Neutral messengers are concentrically stranded 6201, AAC, or ACSR.
| Type | Specification | Conductor | Insulation | Cable Dia | kg/km |
| Nomina Diameter | No. | Conductor Dia. | Thickness | Overall Dia. | mm | Aluminium | XLPE | kg/km |
| ABC | 2*10 | 1.35 | 7 | 4 | 1 | 6 | 12 | 55.478 | 32.284 | 87.762 |
| 2*16 | 1.7 | 7 | 4.9 | 1.2 | 7.3 | 14.6 | 87.974 | 46.805 | 134.779 |
| 2*25 | 2.12 | 7 | 6 | 1.2 | 8.4 | 16.8 | 136.813 | 55.176 | 191.989 |
| 2*35 | 2.52 | 7 | 7 | 1.4 | 9.8 | 19.6 | 193.311 | 74.598 | 267.909 |
| 2*50 | 3 | 7 | 8.4 | 1.4 | 11.2 | 22.4 | 273.967 | 86.958 | 360.925 |
| 2*70 | 2.52 | 14 | 10 | 1.4 | 12.8 | 25.6 | 386.622 | 101.083 | 487.705 |
| 2*70 | 2.54 | 14 | 10 | 1.4 | 12.8 | 25.6 | 392.783 | 101.083 | 493.866 |
| 2*70 | 2.72 | 12 | 10 | 1.4 | 12.8 | 25.6 | 386.079 | 101.083 | 487.162 |
| 2*95 | 2.52 | 19 | 11.5 | 1.6 | 14.7 | 29.4 | 524.702 | 132.104 | 656.805 |
| 2*120 | 2.85 | 19 | 12.9 | 1.6 | 16.1 | 32.2 | 671.121 | 146.168 | 817.289 |
| 2*120 | 2.54 | 24 | 12.9 | 1.6 | 16.1 | 32.2 | 673.343 | 146.168 | 819.511 |
| 2*150 | 2.58 | 30 | 14.5 | 1.8 | 18.1 | 36.2 | 868.397 | 184.160 | 1052.556 |
| 2*170 | 3.38 | 19 | 15.5 | 2 | 19.5 | 39 | 943.941 | 219.046 | 1162.987 |
| 2*170 | 2.52 | 37 | 15.5 | 2 | 19.5 | 39 | 1021.787 | 219.046 | 1240.833 |
| 2*185 | 2.58 | 37 | 16.1 | 2 | 20.1 | 40.2 | 1071.023 | 226.535 | 1297.558 |
| 2*240 | 2.96 | 37 | 18.3 | 2.2 | 22.7 | 45.4 | 1409.752 | 281.513 | 1691.266 |
| 2*300 | 2.58 | 60 | 20.5 | 2.2 | 24.9 | 49.8 | 1736.794 | 311.651 | 2048.445 |
Shipment terms:
By FOB or CIF by sea.
By DHL, UPS, Fedex are also available.
Our Services:
Luoyang Asian Sun Industrial Group Co., Ltd, a professional wires and cables manufacturer for 6 years in China. Asian Sun attends International Exhibitions every year, we support to offer many kinds of wires and cables, such as xlpe/pvc electrical power cable, control power cable, aerial cable, ABC, AAC, AAAC, ASCR cables, and XLPO/PVC Solar PV Cable etc. We can produce the standard: ASTM, BS, CSA, IEC, ASMC, DIN as your need.
1. Factory: 200,081 square meters, available for OEM&ODM;
2. Lead time: 5-7 working days after payment received;
3. Authentication: CCC,ISO9001, CQC, etc;
4. Payment terms: T/T, L/C;
5. Guarantee: 17 years;
6. QC inspection: Strict inspection before delivery;
After-sales Service:
1. All our cables will be tested well in production and before delivery.
2. Please contact us if any problem, we will respond within 24 hours.
Company Certifications:
National Products Safety Cerficcation;
ISO9001 Quality System Certification;
CCC Chinese National Compulsory Products Certification;
Occupational Health Safety Management System Certification;
Environmental Management System Certification;
Production License of Industrial Products;
International Standard Products Sysmbol Certificate, etc.
Started in year 2006, Luoyang Asian Sun Group - formerly known as 'Luoyang YaRi'- was a small factory with only tens of employees back then, but after years of growing and developing, now we are a group company with 5 branch companies, with more than 800 employees including 100 engineers and technicians, and with registered capital 410 million RMB. Our factories are located in county Yichuan, Luoyang, Henan, China, and our headquarters are in the beautiful historic city Luoyang. Totally we have 20, 000 square meters area for production and management, with fixed assets valuing 960 million RMB.
Our main products are power transformer, ABC cable, ACSR, AAC, Aluminum rod, PV bracket, screw pile, power cable, and aluminum bar etc. We also carry on projects of engineering, electrical installation and other general contracting. Our research, production and management are strictly in accordance with the ISO9001 quality system, ISO14001 environment system, OHSAS18001 occupational health and safety management system, the EU TUV, etc. The quality assurance is carried out in every aspect of design, material selecting, production, testing, inspection and management.
At home, we have reached strategic cooperation agreements with State Grid Corporation of China, GD Solar Co., Ltd., Huaneng China, Datang Corporation, China Power Investment Energy Conservation and Environmental Protection Group, and other large state-owned enterprises. At abroad, our products have been exporting to Russia, Middle East Asia, European Union, South America, Africa and other parts of the world.
Our continuing growth and success have been the direct result of the excellent word-of-mouth we consistently earn from both our new and established clients. Thinking of others' benefit and win-win cooperation is the core idea of our company culture. Perfection is not easy to achieve, but we chase it and we can catch excellence. Our excellence is the glamour which brings the good quality and service into every clients.
We guaranteed products at a competitive price and high quality. At present, our products have a very good sale in domestic and overseas market. We wish to cooperate with you to create a bright future and mutual benefit. Much appreciation for your prompt attention in advance, we are eager to look forward to hearing from you soon.
