Product Description

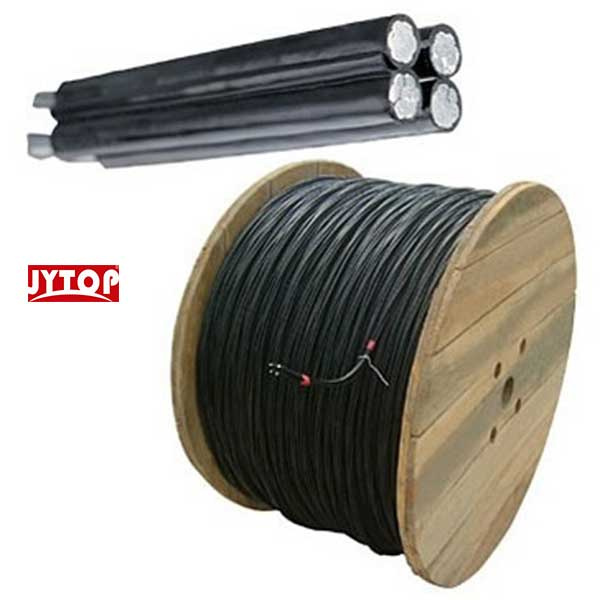

Overhead electrical cable with Bundled wire
1.Type:Duplex Service Drop, Triplex Service Drop, Quadruplex Service Drop
overhead abc cable 33kv abc aerial bundle cable.
a Duplex Service Drop
Applications:To supply 120 volt aerial service for temporary service at construction sites,outdoor or street lighting . For service at 600 volts or lower at a conductor temperature of 75 maximum.
b Triplex Service Drop
Applications: To supply power from the ulility`s lines to the consumer`s weatherhead. For service at 600 volts or less(phase to phase ) at a conductor temperature of 75 maximum for PE insulation or 90maximum for XLPE insulation .
c Quadruplex Service Drop
Applications: Used to supply 3 phase power , usually from a pole-mounted transformer to the use`s service head where connection to the service entance cable is made . To be used at voltages of 600 volts or less phase to phase and at conductor temperature not to exceed75 for PE insulated conductors or 90 for XLPE insulated conductors.
Construction
Conductor are concentrically stranded, compressed 1350-H19 aluminum, insulated with either polyethylene or XLP crosslinked polyethylene. Neutral messengers are concentrically stranded 6201, AAC, or ACSR. One conductor is manufactured with an extruded ridge for phase identification.
Standards
ASTM B-230, B-231, B-232, B-339 & ICEA S-76 -474
Code
name | Phase conductor | Bare neutral messenger | Weight per
1000 ft(lbs) | Rating(Amps) |
Size
AWG | Strand | Insulation
thickness
(mls) | Size
AWG | Strand | Breaking
strength
(lbs) | XLP | POLY | XLP | POLY |
| AAC NEUTRAL-MESSNGER |
| Clydesdale | 4 | Solid | 45 | 4 | 7 | 881 | 208 | 201.8 | 100 | 80 |
| Pinto | 4 | 7/w | 45 | 4 | 7 | 881 | 223 | 207.9 | 100 | 80 |
| Mustang | 2 | 7/w | 45 | 2 | 7 | 1,350 | 333 | 312.6 | 135 | 105 |
| Criollo | 1/0 | 19/w | 60 | 1/0 | 7 | 1,990 | 529 | 504.5 | 180 | 140 |
| Percheron | 2/0 | 19/w | 60 | 2/0 | 7 | 2,510 | 649 | 620.5 | 205 | 160 |
| Hanoverian | 3/0 | 19/w | 60 | 3/0 | 19 | 3,310 | 799 | 765.6 | 235 | 185 |
| Oldenburg | 4/0 | 19/w | 60 | 4/0 | 19 | 4,020 | 986 | 946.7 | 275 | 210 |
| Lippizaner | 336.4 | 19/w | 80 | 336.4 | 19 | 6,146 | 1,546 | 1,519.2 | 370 | 280 |
| ACSR NEUTRAL-MESSNGER |
| Morochuca | 6 | Solid | 45 | 6 | 6/1 | 1,190 | 152 | 147.4 | 75 | 60 |
| Chola | 6 | 7/w | 45 | 6 | 6/1 | 1,190 | 162 | 151.7 | 75 | 60 |
| Morgan | 4 | Solid | 45 | 4 | 6/1 | 1,860 | 226 | 220 | 100 | 80 |
| Hackney | 4 | 7/w | 45 | 4 | 6/1 | 1,860 | 241 | 226.1 | 100 | 80 |
| Palomino | 2 | 7/w | 45 | 2 | 6/1 | 2,850 | 362 | 342.6 | 135 | 105 |
| Costena | 1/0 | 19/w | 60 | 1/0 | 6/1 | 4,380 | 575 | 550.6 | 180 | 140 |
| Grullo | 2/0 | 19/w | 60 | 2/0 | 6/1 | 5,310 | 707 | 678.7 | 205 | 160 |
| Suffolk | 3/0 | 19/w | 60 | 3/0 | 6/1 | 6,620 | 872 | 838.9 | 235 | 185 |
| Appaloosa | 4/0 | 19/w | 60 | 4/0 | 6/1 | 8,350 | 1079 | 1039.2 | 275 | 210 |
| Bronco | 336.4 | 19/w | 80 | 336.4 | 18/1 | 8,580 | 1613 | 1568.2 | 370 | 280 |
| Gelding | 336.4 | 19/w | 80 | 4/0 | 6/1 | 8,350 | 1548 | 1494.3 | 370 | 280 |
| |
Code
name | Phase conductor | Bare neutral messenger | Weight per
1000 ft(lbs) | Rating(Amps) |
Size
AWG | Strand | Insulation
thickness
(mls) | Size
AWG | Strand | Breaking
strength
(lbs) | XLP | POLY | XLP | POLY |
| 6201 ALLOY NEUTRAL-MESSENGER |
| Bay | 6 | Solid | 45 | 6 | 7 | 1,110 | 145 | 140.0 | 75 | 60 |
| French Coach | 6 | 7/w | 45 | 6 | 7 | 1,110 | 155 | 144.3 | 75 | 60 |
| German Coach | 4 | Solid | 45 | 4 | 7 | 1,760 | 214 | 208.3 | 100 | 80 |
| Arabian | 4 | 7/w | 45 | 4 | 7 | 1,760 | 229 | 214.4 | 100 | 80 |
| Belgian | 2 | 7/w | 45 | 2 | 7 | 2,800 | 344 | 323.1 | 135 | 105 |
| Shetland | 1/0 | 19/w | 60 | 1/0 | 7 | 4,460 | 546 | 521.1 | 180 | 140 |
| Thoroughbred | 2/0 | 19/w | 60 | 2/0 | 7 | 5,390 | 670 | 641.5 | 205 | 160 |
| Trotter | 3/0 | 19/w | 60 | 3/0 | 7 | 6,790 | 825 | 791.8 | 235 | 185 |
| Walking | 4/0 | 19/w | 60 | 4/0 | 7 | 8,560 | 1019 | 979.7 | 275 | 210 |
Type & Description & Application:
| Type | Description | Main application |
JKV-0.6/1
JKYJ | 0.6/1KV Copper core,PVC insulated cable for overhead
10KV Copper core,XLPE insulated cable for overhead | Overhead fixed installation and service drop etc. |
JKLV-0.6/1
JKLYJ | 0.6/1KV Aluminium core,PVC insulated cable for overhead
10KV Aluminium core,XLPE insulated cable for overhead |
JKY-0.6/1
JKY | 0.6/1KV Copper core,PE insulated cable for overhead
10KV Copper core,PE insulated cable for overhead |
JKLY-0.6/1
JKLY | 0.6/1KV Aluminium core,PE insulated cable for overhead
10KV Aluminium core,PE insulated cable for overhead |
JKYJ-0.6/1
JKLGYJ | 0.6/1KV Copper core,XLPE insulated cable for overhead
10KV Aluminium-copper core,XLPE insulated cable for overhead |
JKLYJ-0.6/1
JKLYJ/Q | 0.6/1KV Aluminium core,XLPE insulated cable for overhead
10KVAluminium core,light-duty ,XLPE insulated cable for overhead |
JKLGYJ-0.6/1
JKLGYJ/Q | 0.6/1KV Aluminium core,steel-reinforced,XLPE insulated cable for overhead
10KV Aluminium-steel core,light-duty,XLPE insulated cable for overhead |
Advantages:
a. Excellent electric and mechanical characteristics.
b. Best Resistance chemical corrosion and heat-ageing,environment stress.
c. Simple in structure,Convenient to use.
Type & Core NO. & Nominal Cross-section Area as reference:
| Type | NO. of core | Nominal sectional area (mm²) |
JKV,JKLV,JKY,JKLY,
JKYJ,JKLYJ,JKLGYJ | 1 | 16~240 |
| 2,4 | 10~120 |
| JKLV,JKLY,JKLYJ | 3+K | 10~120 |
| JKYJ,JKLYJ | 1 | 25~300 |
JKY,JKLY,JKLGYJ,
JKLGYJ/Q,JKLYJ/Q,
JKLY/Q | 3 | 25~300 |
| 1 | 16~300 |
Zhengzhou JINYUAN Wire and Cable Co., Ltd, as a professional cable manufacturer. We have get ISO9001 and CE certificates. Our Professional and complete cable solutions make JYTOP Cables become to the partner of choice for international companies around the world,
PRODUCTS & STANDARDS & International Market:
1). Bare Conductor:
All Aluminum Conductor (AAC),
All Aluminum Alloy Conductor (AAAC),
Aluminum Conductor Steel Reinforced (ACSR),
Aluminum Alloy Conductor Steel Reinforced (AACSR),
Aluminum Conductor Aluminum Coated Steel Reinforced (ACSR/AW),
Aluminum Conductor Aluminum Alloy Reinforced (ACAR),
Aluminum Conductor Steel Supported (ACSS),
Aluminum Conductor Aluminum Coated Steel Reinforced (ACSR/AW)
All Copper Conductors(ACC),
Aluminum Coated Steel Wire(ACS),
Copper Coated Steel Wire(CCS),
Copper Coated Aluminum(CCA),
Galvanized Steel Wire(GSW),
Enameled Wire - Enameled round Aluminum Wire & Enameled round copper Wire
2). Overhead Cable:
Aerial Bundled Cable (ABC).
XLPE Cable,
Flexible Cable,
Single Core Cable,
2 Core Cable,
3 Core Cable,
4 Core Cable.
3). Building wire and cable:
THHN /THWN Cable
TW/THW Cable
PVC Insulated Wire,
XLPE Insulated cable.
4. Power Cable:
Armored /Non-armored Power cable
AWA Cable
SWA Cable
Standards: IEC, ASTM, AS/NZ, SANS, BS, DIN, NF, JISC, etc.
We can meet customers' special requirements, and provided OEM service.
Mainly Oversea Marketing: Southeast Asia, The Middle East, Africa, South America, so on.
We will be recognized as a professional Manufacturer in cable industry, through continuous improvement of our product quality, after sales service. We can give you the reliable solution for cable wires.
Company website: www.jytopcable.com
