Overhead Mounted Door Magnetic Switch with CE (SC-55Z)

Name: Overhead Mounted Door Magnetic Switch with CE (SC-55Z)
Brand: all-electronics-online.com
SKU: 689456282
Availability: InStock
Rating: 4.9 (125 reviews)

Price:	US $ 1.0/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10/Pairs
Pay Type:	L/C,T/T,D/P,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	SC-55Z
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Gap:	50-70, 60-70 Optional
Can Be Installed:	Window or Door
Output:	N.C. & N.O. & Changeover Available
Switch Dimension:	10547.59.5mm
Magnet Dimension:	882020mm
Certificates:	CE, FCC, RoHS
Signal Transmission:	Wired Alarm
Working Mode:	Passive
Sensor Type:	Electric Alarm
Working Principle:	Electromagnetic
Application:	Indoor
Type:	Anti-Theft Alarm

Product Description

Item Name
Overhead Mounted Door Magnetic Switch with CE (SC-55Z)

Parameters

Roller shutter sensor, heavy duty overhead door contact sensor

Armored cable in 380mm or 480mm length

Wider Gap for reduced false alarms

Closed Loop, open loop and SPDT types

1. Housing: zinc

2.Color: grey

3.Gap:50-70 mm

4.Certificates:FCC,CE ,ROHS

5.Surface mounted with screws, leads 530mm standard length, with armored cover cable of 380mm or 480mm

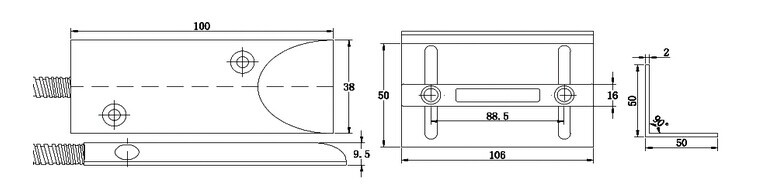

Diagram SC-61L

Diagram SC-60

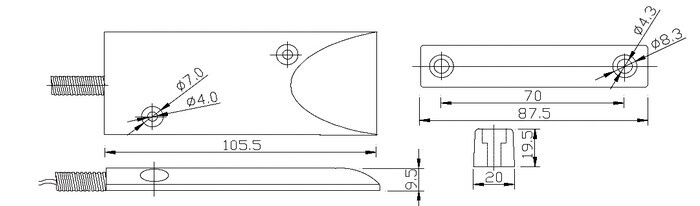

Diagram SC-55Z

Specification	Output	Casing Material	Action Gap(mm)	Max CUr./Vol./Power/Init.Ress(A/VDC/W/mΩ)	MOQ(PAIRS)
NC-ZN-6070	NC	zinc	60-70	0.5A/100V/10W/200mΩ	0
N0-ZN-5060	NO	zinc	50-60	0.2A/30V/3W/200mΩ	500
COM-ZN-5060	Changeover	zinc	50-60	0.2A/30V/3W/200mΩ	500

Ease Security is a Hi-tech enterprise which specializes in anti-theft security alarm products and fire alarm products. Our service range covers R&D, manufacture and marketing. Our current main products are fire alarm panel, home alarm system, outdoor active IR beam detector, PIR detector, smoke detector, gas leakage detector, door magnetic switch, panic button, alarm siren and etc.

Established in 2001, our manufacturing base is located in guangzhou, South of China, covering an area of 3, 000 square meters, with 150 professional employees and 6 advanced product lines. Equipped with advanced equipments, professional engineers and versatile service, the ODM/OEM and direct sales services are provided to the customers around the world. Including Europe, South-East Asia, Middle East, South America, Africa, and etc. We got reputed by quick R&D for new products, short manufacture period and competitive quality & price, as well as prompt delivery.

We are offering you following:

Top quality, product quality is the life of the company;

We have built a whole quality control system according to ISO 9000. Our QC inspects each product in every working procedure to ensure the quality exactly.

Competitive price, price helps our customer be competitive in the market;

We are trying to improve the efficiency in every process to lower the cost without affecting quality.

Excellent service, service is the basis of the company.

We always belive that "Win-Win" strategy is the basis of a long-term cooperation relationship. We are looking forward to establishing a good business relation with you.
