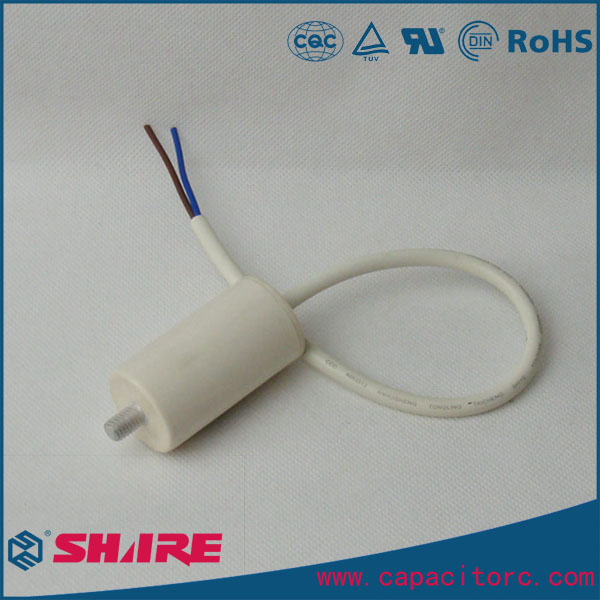

P2 Grade Lighting Lamp Capacitor

Name: P2 Grade Lighting Lamp Capacitor
Brand: all-electronics-online.com
SKU: 802096245
Availability: InStock
Rating: 4.5 (63 reviews)

Price:	US $ 0.1-3/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	CBB80
Appearance:	Plastic Can or Al Can Design
Delivery Time:	1 Week
Type:	Polypropylene Capacitor
Application:	Fan
Package Type:	Through Hole
Capacitance:	1-50uf

Product Description

CBB80 Halide Lamp Capacitor

CBB80 Capacitor Features:
Film capacitor(CBB80) lighting capacitor, polypropylene film lighting capacitors are widely used for illuminating lamps, etc.
1 plastic package outside the off, the appearance of consistency.
2 high-frequency loss, suitable for high current circuit.
3. High insulation resistance, good self-healing, long life.
4. Have a reliable security protection.
5.Applications of this series are particularly suitable for parallel compensation of discharge lamps.
Dielectric consists of self-healing polypropylene film,case and cover are made of self-extinguishing

Lamp Capacitor Technical requirements:

Rated Voltage	250V AC 50Hz 280V AC 50Hz
working Temperature range	-25~+85ºC
Dissipation factor (20ºC ,50Hz)	tg δ≤ 0.002
Discharge resistor	on request
Test voltage between terminals	2.15 Un for 2 seconds
Between terminal and case	2kV for 60 seconds (type test)
Reference standards	En 61048 ; Type B En 61049
Protection	Case in self-extinguishing plastic material
Terminals	Unipolar leads insulated in pvc
Mounting devices	M8 stud, clamp, captive feet
Capacitance tolerance Different tolerance values are available on request	±5%; ±10%

Reference standard	IEC1048,EN61048
Climatic Category	40/85/21
Rated voltage	125VAC~630VAC
Capacitance Range	1~50μF
Capacitance deviation	±5%(J)
Withstand Voltage	Between terminals	1.6UR(5s)
	between terminals and case	2000VAC
Dissipation factor	≤0.2%(20°C,1kHz)
Insulation resistance	≥7500s	(20°C,1min)
Discharge performance	Un after the next break between the residual voltage less than 50V 60S
Steady-state over-voltage	Allowed under the long-running 1.1Un
	Allowed under the long-running 1.5Un
