P20-2 Pol Cheap Cost Circular Connectors

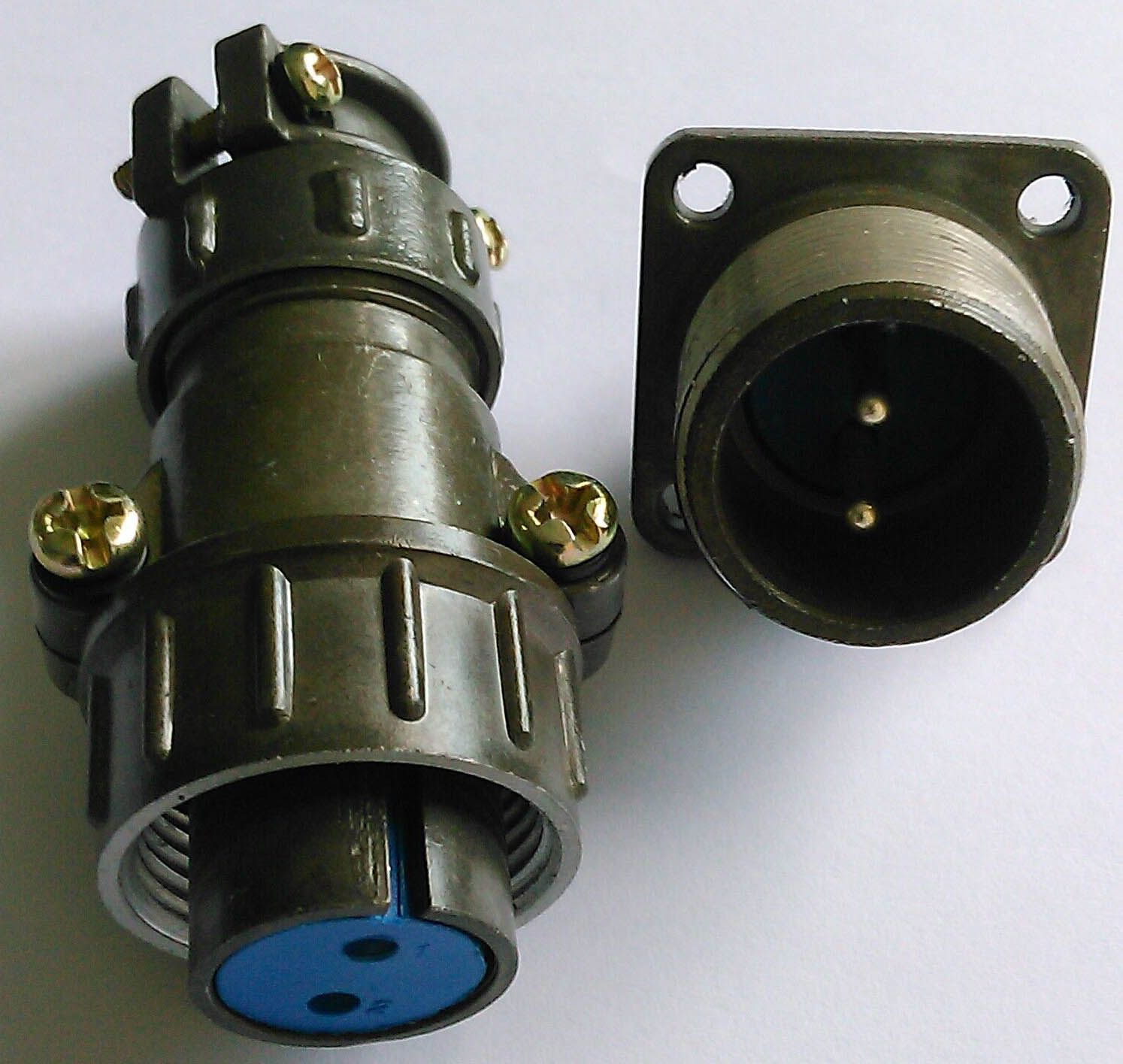

Name: P20-2 Pol Cheap Cost Circular Connectors
Brand: all-electronics-online.com
SKU: 798814775
Availability: InStock
Rating: 5 (78 reviews)

Price:	US $ 1.8-2.2/Set
Min Order:	5/Set
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	P20-2UQ
Size:	P20k2q
Size1:	P20j2a
Size2:	P20j2p
Size3:	P20k2a
Number Of Contacts:	2 Pins
Size4:	P20j2aq

Product Description

P series circular connectors are used extensively in line connections between electrical equipment, various instruments and meters. These connectors have the features of small volume, light weight, convenient application, high durability of plugging and unplugging, threaded coupling, good sealing performance, high conductivity and high dielectric strength. They are made according to the standard SJ/T10496. They are for military and industrial applications.
Product Ordering
P 20 J 2 A Q J
1 2 3 4 5 6 7
1. Name of series: P series circular connectors
2. Shell size: 16, 20, 28, 32, 40, 48, 55, 60
3. Type of contacts: J-Pin, K-Socket
4. Sign of contacts: Numbers
5. Type: Without mark-plug, A-normal receptacle, M-sealed receptacle
6. P-shield shell, Q-normal shell, R-angled shield shell, S-normal angled shell, the receptacle without shell: Without mark.
7. J-Au plated, without J: Ag plated

Temperature	Relative humidity	Atmosphere	Vibration	Shock	Endurance
-55°C ~ + 70°C	( 92~96 ) % at40 + 2°C	100KPa~2 KPa	10~200Hz, 100m /s²	250m /s²	500 cycles

The sealing connectors t emperature allow -55°C ~+ 55°C only.

Contacts diameter	Current	Voltage (pressure)				Contact resistance
		100Kpa	8.5KPa	4.4KPa	2KPa
Ø 1.5mm	10A	500V	250V	175V	150V	≤ 2.5mΩ
Ø 2.5mm	25A					≤ 1mΩ
Ø 3.5mm	50A					≤ 0.5mΩ
Ø 5.5mm	100A					≤ 0.3mΩ

Environment	Voltage proof	Insulation resistance
Normal	1500V	≥ 500MΩ
Lower pressure(2KPa)	300V	-
Moisture	1000V	≥ 2MΩ

Electronics supplier, China factory, connector manufacturer, plug supplier, Hangzhou Kaipu Electronic Technique Co., Ltd. is a company specializing in manufacture of circular connectors and rectangular connectors of high quality. We design and make water proof connectors, power plugs, electrical connectors.

ISO9001: 2008, Registration Number: 04005Q11376R0S.

Our products of connectors:

1. Circular series AISG, Y2, Y2M, Y3, Y4, Y4M, Y5, Y5A, Y11, Y27, Y50E(MIL-C-26482), PTB, YP21, YP28, YP36, YP50, JL5, JL16, JL33, FQ(IP67), FQ14, FQ18, FQ24, FQ30, FX16, FQN14, FQN18, FQN24,

FQN, FQC, FQX(IP68), kp11(IP67), kp22(IP68), KP32(C16), P20, P28, P32, P36, P40, P48, P55, P60, YD20, YD28, YD32, YD40, YD48, YD55, X, Q14, Q18, Q24, Q30, TY20, TY32, TY48, LYP, XC (similar as MIL-38999), 2PM, 2CX, CX, PC-4TB, PC-7TB, PC-10TB, PC-19TB, PC-32TB, PC etc.

2. Rectangular connector series B, C, F etc meet DIN41612, J7, J7A, J14A, J14B, J14D, J15, J36A.

Our connectors of KP32, FS1, FS2 have UL certificate: E308558.

Most of our connectors have CE certificates.
