P3 500 Trunk Coaxial Cable CATV Jcam

Name: P3 500 Trunk Coaxial Cable CATV Jcam
Brand: all-electronics-online.com
SKU: 704477025
Availability: InStock
Rating: 4.3 (124 reviews)

Price:	US $ 620-650/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10/Piece
Pay Type:	L/C,T/T,D/P,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	P3 500 P3 540
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Cable:	Qr540, P3 500
Jacket:	PE
Jacket Color:	Black Color
Impedance:	75 Ohm
Insulation Material:	Foamed PE
Certificate:	ISO9001, Cl2/CATV/Cm UL
Cable Series:	Jca, Jcam
Application:	Coaxial Cable
Conductor Material:	BC/CCS/CCA/TC/CU/CCAG
Cover Material:	PE
Certification:	RoHS
Type:	Coaxial Cable

Product Description

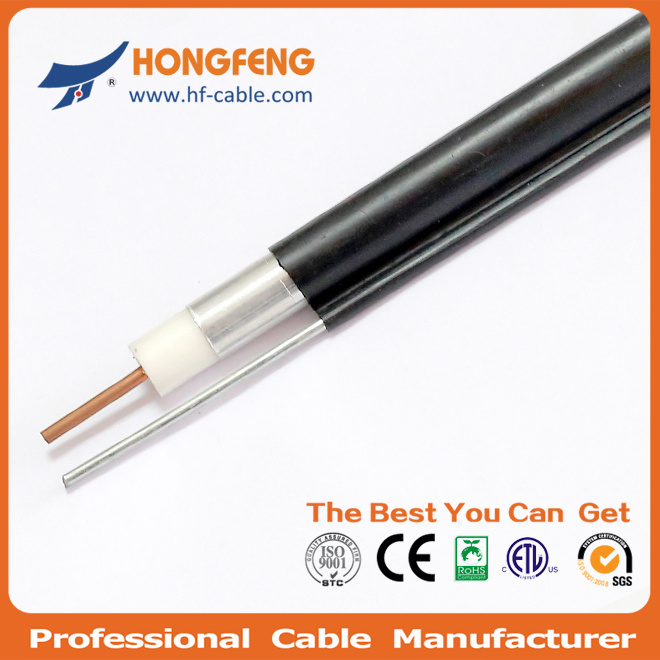

CATV trunk cable JCA JCAM P3 500 coaxial cable

Description

*Solid aluminum tube swaged onto dielectric code

*fully bonded Copper clad, center conductor PE jacket messenger

*Center Conductor: CCA, Φ 0.109"(2.77mm)

*Dielectric: Micro-celluar Foam PE, Φ 0.45" (11.43mm)

*Shield: Solid aluminum tube

*out conductor thickness: 0.024"(0.61mm)

*Jacket: PE jacket diameter: Φ 0.056(14.22mm)

*thickness of out jacket: 0.030(0.76mm)

Mechanical characteristic

Minimum Bend Radius: 10.2mm(0.253")

Maximum Pulling Tension: 10.2mm(0.253")

Electrical performance

Capacitance: 15.3± 0.1 pF/ft, (50± 3 nF/km)

Impedance: 75± 3 ohms

Velocity of Propagation: 87% (Nominal)

Maximum DC Loop Resistanc1.72 ohms/1000 ft (5.64 ohms/km)

Attenuation: @68 F(20° C)
