| Prod Model: |
P50 |
| P50: |
Current Clamp Plobe |
| Accuracy Class: |
0.1%, 0.2%, 0.5% |
| Ratio: |
1000: 1 or 2000:1 (Customized) |
| Primary Current: |
0 - 1000A AC |
| Secondary Output: |
1mv/a AC, 5mv/a or (Customized) |
| Max. Cont. Input Current: |
1200A |
| Over Voltage Category: |
Cat III 600V |
| Output Signal: |
333mv, 500mv,1V,2V,5V AC at Nominal Input Current |
| Weight (G): |
550 |
| Holding Wire Diameter (mm): |
φ50 |
Product Description
COMPANY PROFILE
Beijing GFUVE Electronics Co., Ltd. was established in 2005. It combined science, industry and trade together as one high-tech enterprise. GFUVE mainly produces high voltage ammeter recorder, IEC61850 test suite software, meter test equipment, reference standard meter, phantom load power source, electrical measurement instrument, relay test set, transformer test, and power analyzer, intelligent digital meter, transducer and current transformer models etc.
GFUVE is a leader manufacturer of energy meter test products and high voltage ammeter recorder in China. It is professional in energy meter test system, energy meter portable tester and related accessory. The product of high voltage ammeter recorder develops very quickly in the market. Our company has achieved certification to ISO9001. The products are sold to over 30 provinces in China and exported to overseas including South America, Middle East, Southeast Asia and Africa.
We have been contributing ourselves to developing the durable and stable products for the usage of the power system. Contact us now for further business relationship. We are here to provide you the best service.

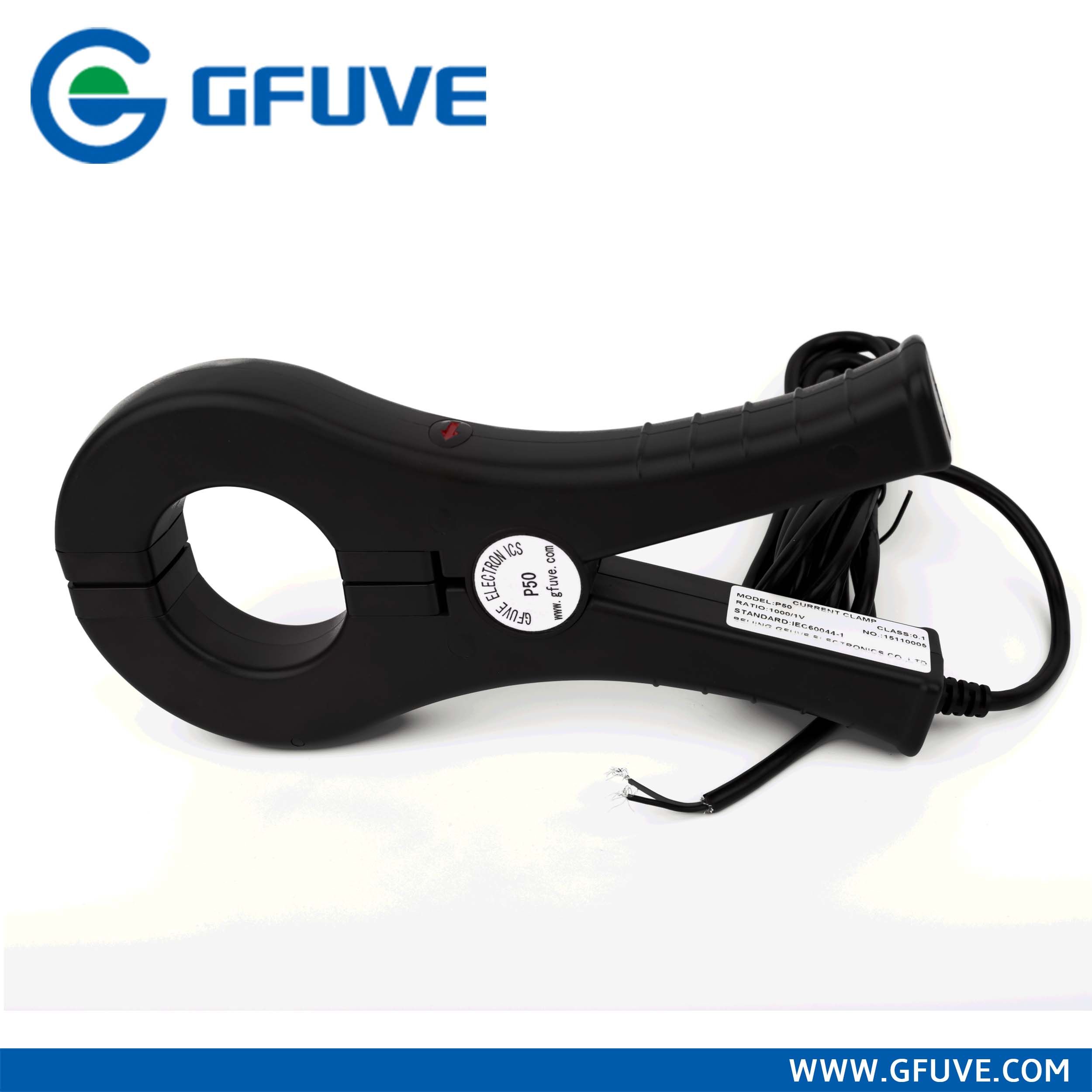

PRODUCT INTRODUCTIONP50 1000A Selected AC Measurement Clamp on Curent Probe
The round jaw design on the P50 Series AC current probes along with the high content nickel metal core makes them well suited for power quality applications where high accuracy and low phase shift along with wide frequency are important. Measurement range is 1mA to 1200A.
The P50 is a general purpose 1000A AC current probe designed for use with DMMs, loggers and other instruments that have a current input. It has a 1000:1 ratio and output of 1mA per amp or 1mV per amp measured in the jaw. The P50 has an integral 2.5m lead terminated. The rounded jaw design on this probe makes it well-suited for power applications where high accuracy 0.1% and low phase shift and wide frequency response are important.
Applications
Power quality measuringLarge industrial loadsMeasuring around cable bundlesPower load monitoringWaveform analysisEnergy meter calibrator
Features
Measurement range of 1mA to 1200A ACLarge jaw opening accommodates conductors up to two 500kcmilImproved ergonomic design and easy operationHigh content nickel metal coreConforms to EN 61010, 600V CAT IIILow phase shift for power measurementDesigned for DMMs, recorders, loggers, oscilloscopes, power and harmonic metersUL, CE mark
Parameters
| Electrical parameters |
|---|
| Ratio | 1000: 1 or 2000:1 (customized) |
| Accuracy class | 0.1%, 0.2%, 0.5% |
| Primary current | 0 - 1000A AC |
| Secondary current | 1mV/A AC, 5mV/A or (customized) |
| Max. Cont. Input current | 1200A |
| Over voltage category | CAT III 600V |
| Output signal (AC current) | 333mV, 500mV,1V,2V,5V AC at nominal input current |
| AC Accuracy(1000A Range) |
|---|
| 0-10A | ≤0.5% |
| 10-100 | ≤0.2% |
| 10-1200A | ≤0.1% |
| AC Phase Shift(1000A Range) |
|---|
| 0-10A | ≤0.5° |
| 10-100 | ≤0.2° |
| 10-1200A | ≤0.1° |
| Frequency range | 40Hz-2000Hz |
| Dielectric strength | 3KV 50Hz/60Hz at 1 minute |
| Temperature range | -20°C to +55°C |
| Output | 2.5 meter cable with D01 connector |
| Max. voltage not insulated conductors | 600 V |
| Standard | EN 61010-1, EN 61010-2-032, IEC60044-1 |
| Installation | Clamp type |
| Output mode | Lead output (2.5m) |
| Mechanical parameters |
|---|
| Dimensions (L x W x H)(mm) | 102.9 x 219.6 x 28 |
| Weight (g) | 550 |
| Holding wire diameter (mm) | φ50 |
| Max. jaw opening (mm) | 50 |
| Color | Gray or blue |
| Material | PC+ABS+Polycarbonate, UL94 V0 |
Download CatalogueP50-1000A Selected AC Measurement Clamp on Curent Probe(671KB)
