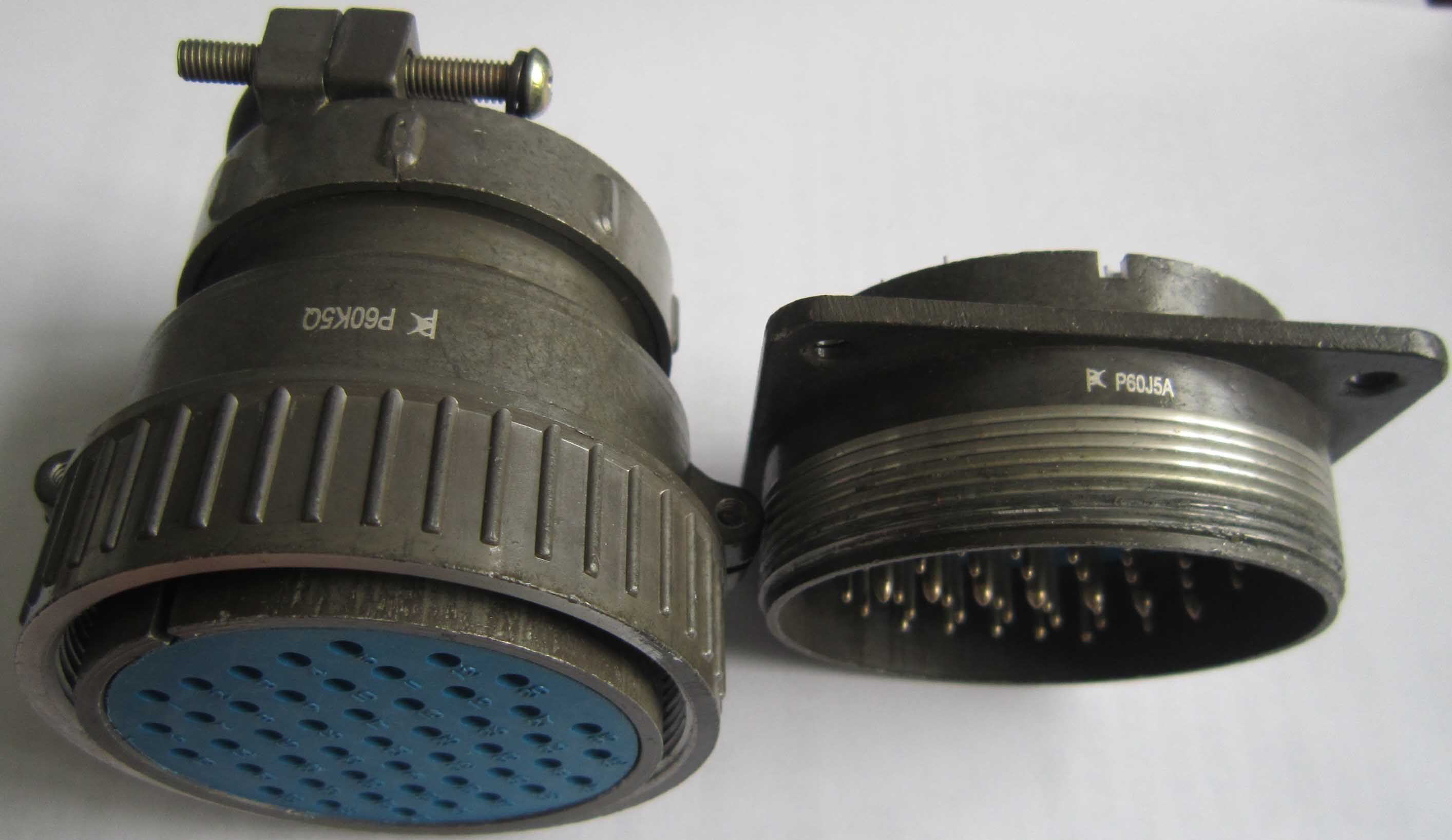

P60-47pins Normal Circular Multipole Connector

Name: P60-47pins Normal Circular Multipole Connector
Brand: all-electronics-online.com
SKU: 798813805
Availability: InStock
Rating: 4.9 (48 reviews)

Price:	US $ 14.2-15.8/Set
Min Order:	5/Set
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	P60-5UQ
Value:	Cheaper
Series:	P60k5q+J5a
Number Of Contacts:	47 POS

Product Description

P series circular connectors are used extensively in line connections between electrical equipment, various instruments and meters. These connectors have the features of small volume, light weight, convenient application, high durability of plugging and unplugging, threaded coupling, good sealing performance, high conductivity and high dielectric strength. They are made according to the standard SJ/T10496. They are for military and industrial applications.
Product Ordering
P 60 J 5 A P J
1 2 3 4 5 6 7
1. Name of series: P series circular connectors
2. Shell size: 16, 20, 28, 32, 40, 48, 55, 60
3. Type of contacts: J-Pin, K-Socket
4. Sign of contacts: Numbers
5. Type: Without mark-plug, A-normal receptacle, M-sealed receptacle
6. P-shield shell, Q-normal shell, R-angled shield shell, S-normal angled shell, the receptacle without shell: Without mark.
7. J-Au plated, without J: Ag plated.
Technical characteristics

Temperature	Relative humidity	Atmosphere	Vibration	Shock	Endurance
-55°C~ +70°C	(92~96)% at40+2°C	100KPa~2 KPa	10~200Hz,100m/s²	250m/s²	500 cycles

The sealing connectors temperature allow -55°C~+55°C only.

Contacts diameter	Current	Voltage (pressure)				Contact resistance
		100Kpa	8.5KPa	4.4KPa	2KPa
Ø1.5mm	10A	500V	250V	175V	150V	≤2.5mΩ
Ø2.5mm	25A					≤1mΩ
Ø3.5mm	50A					≤0.5mΩ
Ø5.5mm	100A					≤0.3mΩ

Environment	Voltage proof	Insulation resistance
Normal	1500V	≥500MΩ
Lower pressure(2KPa)	300V	-
Moisture	1000V	≥2MΩ

Electronics supplier, China factory, connector manufacturer, plug supplier, Hangzhou Kaipu Electronic Technique Co., Ltd. is a company specializing in manufacture of circular connectors and rectangular connectors of high quality. We design and make water proof connectors, power plugs, electrical connectors.

ISO9001: 2008, Registration Number: 04005Q11376R0S.

Our products of connectors:

1. Circular series AISG, Y2, Y2M, Y3, Y4, Y4M, Y5, Y5A, Y11, Y27, Y50E(MIL-C-26482), PTB, YP21, YP28, YP36, YP50, JL5, JL16, JL33, FQ(IP67), FQ14, FQ18, FQ24, FQ30, FX16, FQN14, FQN18, FQN24,

FQN, FQC, FQX(IP68), kp11(IP67), kp22(IP68), KP32(C16), P20, P28, P32, P36, P40, P48, P55, P60, YD20, YD28, YD32, YD40, YD48, YD55, X, Q14, Q18, Q24, Q30, TY20, TY32, TY48, LYP, XC (similar as MIL-38999), 2PM, 2CX, CX, PC-4TB, PC-7TB, PC-10TB, PC-19TB, PC-32TB, PC etc.

2. Rectangular connector series B, C, F etc meet DIN41612, J7, J7A, J14A, J14B, J14D, J15, J36A.

Our connectors of KP32, FS1, FS2 have UL certificate: E308558.

Most of our connectors have CE certificates.
