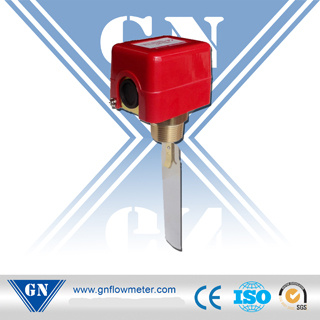

Paddle flow switch(liquid flow switches, flow switch) ZZS FLOW SWITCH

Specifications:
Our Liquid Switches are Single-Pole-Double-Throw(SPDT) flow switches that are used in liquid lines carrying water, ethylene glycol, or other liquid not classified as hazardous. They can be wired to energize one device or powered from the same source when liquid flow either exceeds or drops below the set flow rate.

The rate of the flow can be adjustable and it is stable
Liquid temperature range: 0~+100
Max. Working Pressure: 13.5bar
Flow switch can not be used where the liquid in the pipes will drop below the liquid's freezing point

Product Flow Switch
Maximum Liquid Pressure 150psig()1034kpa
Minimum Liquid Temperature 32oF(16)
Maximum Liquid Temperature 250oF(121)
Electrical Ratings 120VAC 208VAC 240VAC 277VAC 24VDC
Horsepower 1 1 1 -
Full Load Current 16 8.8 8.8 -
Locked Rotor Current 96 52.8 48 -
Non-inductive Current 16 16 16 -
Pilot Duty 125VA at 24/277VAC
Wiring Connection Screw Type Terminals
Pipe Connector 1", 1.5" NPT Threads

Type Connection size Range of required to actuate switch (L/min)
Min. Flow Max. Flow
Decrease of flow Increase of flow Decrease of flow Increase of flow
ZZS 1 18 21 45 50
2001-1-2 30 35 100 105
2 50 58 150 155
2002-1-2 75 86 187 200
3 100 115 225 260

Model	Connection	Notes	Accuracy
HFS-25	1″-11½NPT Screw	Red case	5%
HFS-20	¾″-14NPT Screw
HFS-15	½″-14NPT Screw
JYF-25	1″-11½NPT Screw	White case	2-3%
JYF-20	¾″-14NPT Screw
JYF-15	½″-14NPT Screw

Rated Voltage ⁄ Rated Amps	A.C.125 ~ 250V	Power (Cosmp.)
Non-inductive Current	12A	1
Full Load	12A	0.75
Locked Roter	72A	0.45

Required Flow for actuating switch (m3/hr)
Pipe size (in)		1	1-¼	1-½	2	2-½	3	4	5	6	8
Min. Flow	Flow lower, 1-2 closed	1	1.3	1.7	3.1	4.1	6.2	8.4	12.9	16.8	46.6
Min. Flow	Flow lower, 1-3 closed	0.6	0.8	1.1	2.2	2.8	4.3	6.1	9.3	12.3	38.6
Max. flow	Flow lower, 1-2 closed	2	3	4.4	6.6	7.8	12	18.4	26.8	32.7	94.2
Max. flow	Flow lower, 1-3 closed	1.9	2.8	4.1	6.1	7.3	11.4	17.3	25.2	30.7	90.8

Cixi flowmeter Co., Ltd. Was established in 2008 and since then has been dedicating itself to research and manufacture of various kinds of flowmeter. With sophisticated experience in technology and management, CIXI Flowmeter has made a name for itself as an excellent manufacturer of various kinds of flowmeter. In 2007, we have especially set up Shanghai Cixi Instrument Co. Ltd for handling the deals of Export.

Thanks to outstanding performance of products, CIXI Flowmeters are being applied in more and more fields where there' S liquid to measure. CIXI Flowmeters have found users in many countries besides China, such as Malaysia, India, Thailand, Vietnam, South Africa and so on. Increasing number of users are finding that CIXI Flowmeter are kind of product with super performance and reasonable price.
