| Prod Model: |
FS-M-PD017A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Principle: |
Eddy Current |
| Max. Current: |
5A |
| Wiring Connection: |
DIN 43650 Connector/Attached Cable |
| Output: |
Spdt Micro Switch (Factory Set N/O) and Optional S |
| Pressure: |
25bar(Can Be Custom-Made Higher) |
Product Description
We are first class retailer, wholesaler, and exporter for Paddle Type Flow Switch FS-M-PD017A in China since 2009. Quick response, fast delivery.
Introduction:

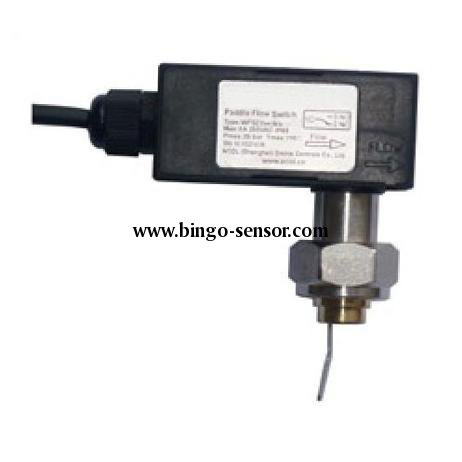

FS-M-PD017A Baffle flow switch is DIN connector flow switch. From the structure, it greatly improve the reliability of the flow switch, best than the non-traditional red hat target flow switch, and there is built-in micro trigger switch and plug-in installation in it.
This flow switch can used with female branch tee, male thread tee, welding or adhesive socket welding tee and glue connection tee. (their material is brass)
Any question during using:
1. If you encounter FS-M-PD017A baffle flow switch is not closed during debugging, you can adjust the flow protection value after confirming the water flow is normal. The judge form is putting your hand along the flow direction to promote the baffle to make the micro switch closed position.
2. Don't pull the shell, may change the site and lead the switch out of action.
3. Any other question, please contact with us freely.
Advantage:
1. Minimal pressure loss, good repeatability, anti-fouling, accurate switch settings
2. Isolate the Mechanical parts and electronic parts
3. Completely avoiding the question of easy broken, best for central air conditioning and industrial fluid control.
4. It has a plurality of types for customers to choose to adapt different applications.
Installation:
1. Baffle flow switch is generally installed between Pump outlet and equipment outlet, and should not in Pump suction piping, because it is easy to make the pump with a bad absorption, flow switch cannot open.
2. This flow switch can be horizontal and vertical
3. The direction of flow must be consistent with the arrow which is on the shell, if not, the flow switch will be does not work. Also, Don't pull the black shell, may lead the switch out of action.
| oltage | With status indicator lamp: max voltage 250V, Without status indicator lamp: 24VDC± 10% |
| Max. current | 5A |
| Wiring connection | DIN 43650 connector/attached cable |
| Output | SPDT micro switch (factory set N/O) and optional status indicator |
| Pressure | 25bar(can be custom-made higher) |
| Average pressure loss | 0.01 bar (Max. flow) |
| Working temperature | -10-85º C |
| Protection class | IP65 |
| Material | Housing: nickel-plated brass/PPO plastic Paddle: stainless steel/brass Electrical shell: ABS |
