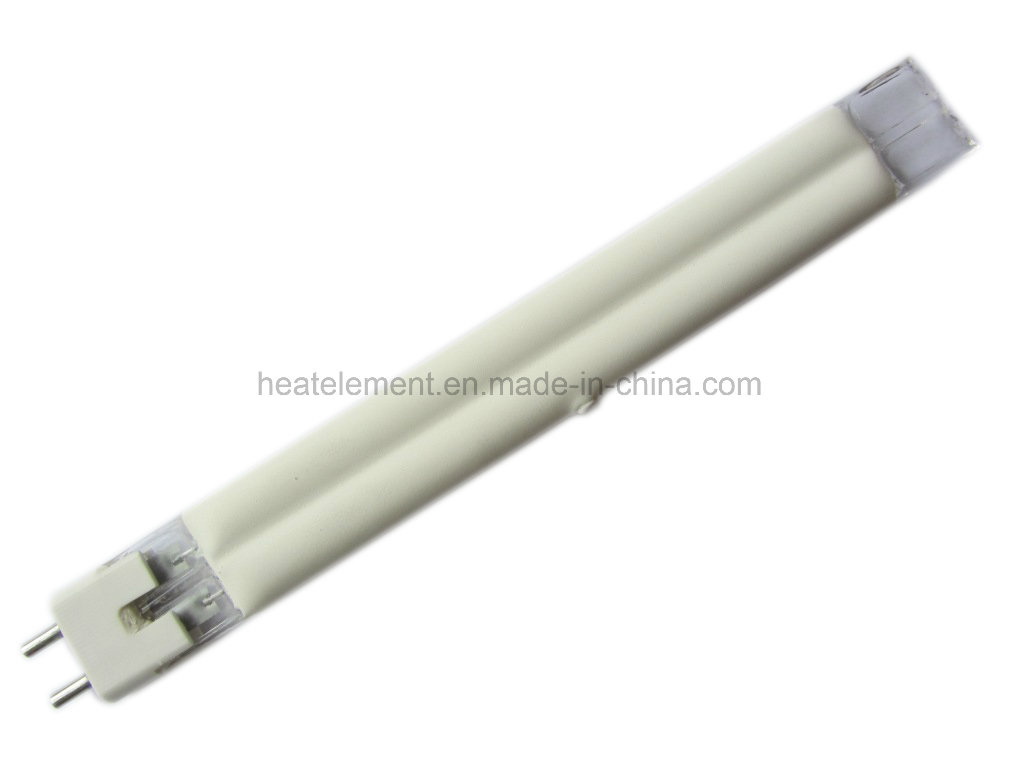

Paint Infrared (IR) Heating Element

Paint Infrared (IR) Heating Element
Price: US $ 8/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 50/Piece
Pay Type: L/C,T/T
Prod Model: TM-IR-P1
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Light Source: Halogen
Source Number: Per The Customer's Requirements
Installation: Horizontal or Vertical, Can Be Customized
Lamp Installation: Per The Customer's Requirements
Application: Engineering

Product Description

Features:

1. Halogen type

2. The ideal, high-power heat source for a wide range of industrial heating applications

3. Economic heat source, 90% of energy is transmitted as Infrared heat

4. Short wave Infrared radiates

5. Clean, Safe, Green

6. Compact Infrared heat source

7. Fast response, reaching 100% power after be electrified and fast to reducing the temperature

8. Long Lifetime, Rating life 5000 hours







Advantages:

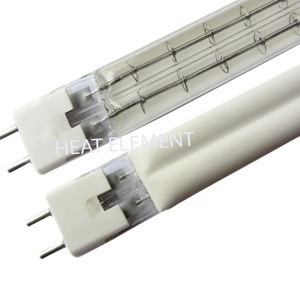

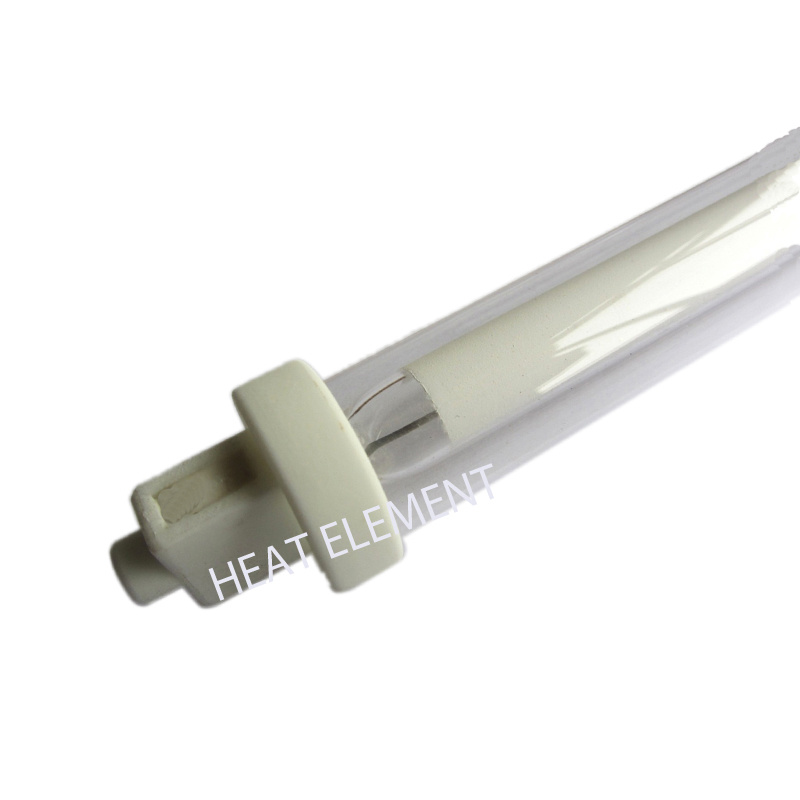

Without white reflector IR heat lamp radiate 50% of the infrared radiation to the rear and 50 forwards.
Consequently, only 50% of the potential radiation is available to heat a surface. With the Heatelement
White reflector IR heat lamp 80% of the available radiation is directed at the workpiece surface.


Applications:

Space heating

Drying of lacquer, paint, printing ink

Curing, oven

Plastic thermoforming

Blowing of PETP

Catalogue:

Please E-mail us to get our catalogue, or you can send us the specifications match your application.


ModelPower       (W)Voltage
     (V)
Color temperature
              (K)
The peak wavelength
             (um)
Life
 (H)
Diameter
  (mm)
   Size
 (mm)
LW-1300100-2407504-9.565008-10250-600
LW-1500100-2409803.0-9.3650010-11.5250-600
LW-1600100-24010002.8-8600010-11.5250-600
LW-1800100-24010502.7-7.6600010-11.5350-800
LW-1900100-24011002.6-5.5500010-11.5350-800
LW-11000100-24012002.5-5500010-11.5350-800
LW-11200100-24012502.3-4.8500010-11.5550-1000
LW-11500100-24013002.3-4.5500010-11.5550-1000

Workshop:
All our lamps were manufactured by experienced staff


Packing and Shipment



Lamp Quality & Lifetime

We guarantee 5000 hours lifetime for the short wave infrared heating tubes.



HEAT ELEMENT was founded in 1995 for the purpose of providing top quality Infrared technological solutions to the industrial/commercial heat application. Right from the start the factory distinguished itself for excellent products: Our dedication to research and increasingly reliable technology have made us pioneers and world leaders in infrared technologies. Our customers, whether they are small paint shops or multinationals, choose us because they want to maintain their competitive advantage and they see our company as a solid efficient partner. Creativity and innovation, research and passion, quality and after-sales service are the elements of success that guide HEAT ELEMENT every day throughout the world.

Today Heat Element not only can produce the IR lamps with any length, any power, any shape, any configuration to match your specification, but also has the capability to design, manufacturing, fabricating the whole set of IR equipment (IR ovens, IR furnace, IR modular and system) to fit your facility. Customer-specified design or OEM services are both available to ensure 100% customer satisfaction.

For further information, please call us or email us today, our Sales and Engineer will work out the heating solution to you.

Please find our products range below

1) Gold Coating Infrared heat Lamp

2) Gold Reflector Infrared Heat Lamp

3) White Reflector Infrared Heat Lamp

4) Clear Tubular Infrared Heat Lamp

5) Carbon Fiber Infrared Heat Lamp

6) Printing Infrared Heat Lamp

7) PAR38 Infrared Heat Lamp

8) Accessories & Fixture for Infrared Heat Lamp

9) Quartz Tube

Please contact HEAT ELEMENT for further information.
