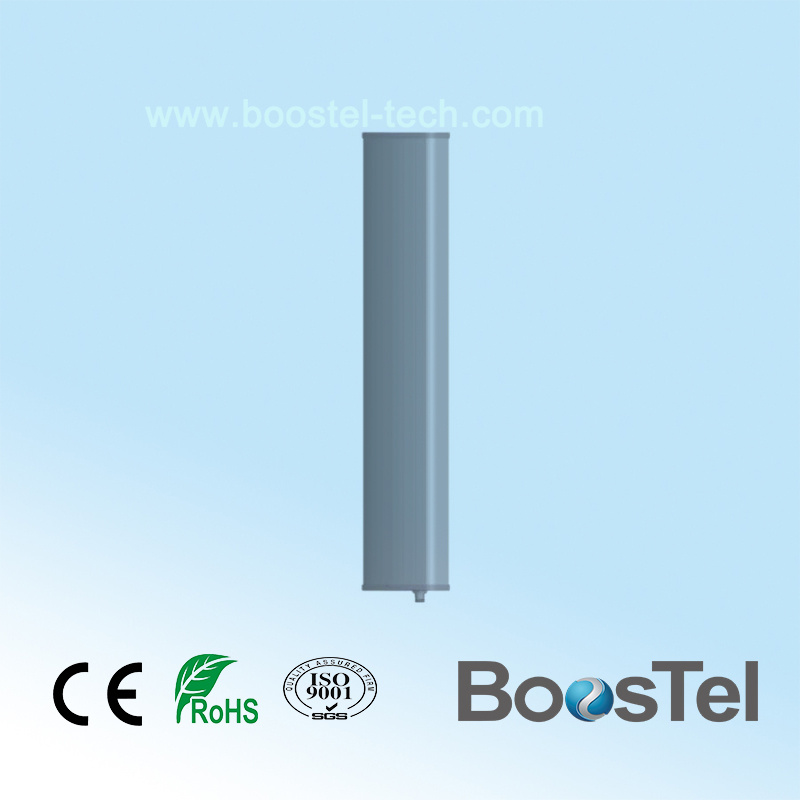

Panel Antenna

Panel Antenna
Price: Negotiable/Piece
Min Order: 1/Piece
Pay Type: T/T
Prod Model: BT-65VP17-1820AT0/ BT-65VP17-1820RT0/ BT-65VP18-18
Usage: Radar Antenna
Operating Wavelength: Medium Wave
Material: Steel Plate
Directionality: Directional Antenna
VSWR: 1.5~2

Product Description

Specifications of Panel Antenna
Model: BT-65VP17-1820AT0/ BT-65VP17-1820RT0/ BT-65VP18-1820RT0
ItemsSpecification
Working Frequency1710~1880 MHz1850~1990MHz1920~2170 MHz
PolarizationVertical
Gain16.5dBi/16.5dBi/17.5dBi16.5dBi/16.5dBi/17.5dBi17dBi/17dBi/18dBi
Electrical Downtilt

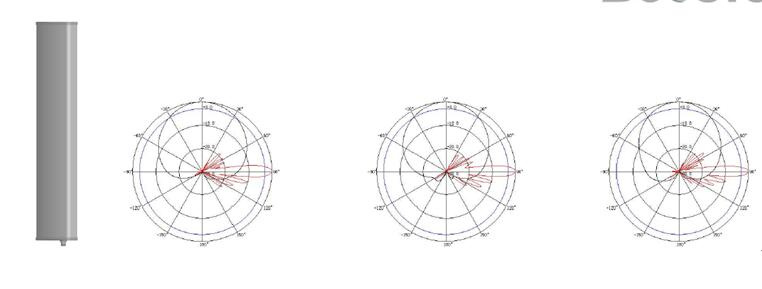

Horizontal Beam Width68°/68°/68°65°/65°/65°62°/62°/62°
Vertical Beam Width8.5°/8.5°/7°/8°/6.5°7.5°/7.5°/6°
Front-to-Back Ratio≥25dB
V.S.W.R.1.4/≤1.5/≤1.5
Input Impedance50Ω
Intermodulation IM3≤-150dBc
Max. Power200W/300W/300W
Lighting protectionDC Ground
Connector7/16DIN-Female
Connector PositionBottom
Height/width/depth1080*160*80mm1080*160*80mm1320*160*80mm
Packing Size1190*210*150mm1190*210*150mm1440*210*150mm
Weight7kg5.5kg6.5kg
Radome MaterialUPVC
Radome ColorGray
Mechanical Tilt0~15°0~15°0~12°
Operating Temperature-40~60°C
Suitable Pole Diameter50 ~115mm
Mounting KitJM-1800 BZJM-1800RZJM-1800RZ





Shenzhen Boostel Technologies Co., Ltd. is a high-tech company integrating scientific R&D, manufacturing and marketing, with factory in Shenzhen China, and headquarters in Hongkong, mainly engages in scientific research, production, marketing, project and engineering service of the radio telecommunication system.

Since the inception, we have been a professional manufacturer and solution provider of RF network optimization system. Our products, including RF repeaters, IBS, BTS filters, combiners and amplifiers as well as NMS software system, have been deployed in more than 100 cities in China and 30 countries in Southeast Asia, Africa, European, South America and Middle East. We provide the infrastructure and total solutions to mobile operators and enterprises to enhance the cellular network.

Our products including High power Repeaters and Pico Repeaters which covering all the working frequency bands of TETRA Repeaters, iDEN Repeaters, LTE800MHz, GSM900MHz, DCS1800MHz, PCS1900MHz, WCDMA2100MHz and LTE2600MHz.

Since 1995, the first set of Fiber optic Repeater was manufactured in our factory, we have developed all kinds of Repeaters and sold it the opeartors all over the world.

We will provide the total solution of Repeaters with best quality and full technical supporting to you based on our more than 20 years experience of manufacturing Repeaters.
