| Prod Model: |
NM-USB-1001 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Western Europe |
| Od: |
5.5mm |
| Connector Color: |
Nickel |
| Shieldig: |
Braid |
| Gender: |
Male to Female |
| Place Of Origin: |
Guangdong Shenzhen |
| Application: |
Mobile Phone |
| Material: |
Copper |
| Interface Type: |
USB |
| Feature: |
Explosion-proof |
| Power Cable Type: |
Three-pin |
| Shape: |
Round |
| Computer Cable Type: |
Data Line |
| Printer Cable Type: |
USB |
| Pin: |
a Male to a Female Panel Mount |
| Color: |
Black |
Product Description

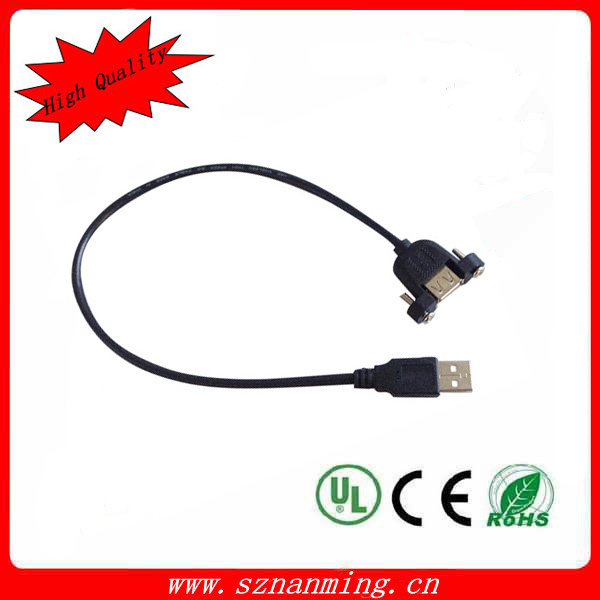

Panel mount 2.0 usb cable AM AF
UL2725,24#+28#,1P+2C+AL+B+D,OD:4.5mm
UL2725,28#+28#,1P+2C+AL+B+D,OD:3.8mm
As custom requirements,we could make only 2 cores to work as data cable or power cable
All material are RoHs complaint,cable is UL certificated.
Features:
1.USB2.0 A TYPE A Male to Female.A Plug/A Socket
2.Optional gold and nickel plating.
3.Conductor:Tinned copper
4.Edition:USB2.0,3.0 Optional
5.Gauge:28AWG+24AWG,1P+2C+1+B(AL)
6.Length: 20-60cm,generally as customer's requirements
7.Jacket color: Black,Bule ,Grey,Transparent, and according to the clients'requirements.
PVC as the jacket outface,45 P PVC is used to mold the connector
8.Braid shield according your requirements.(64 AL Braids)
Electrical:
1.100% open & short test
2.Hi-Pot: DC 300V 10ms
3.Insulation Resistance: 10M OHM /300V Min.
4.Contact Resistance: 0.01 OHM Max.
5.Shield up to 65% braid.
6.Working Temperature: -25 oC ~ +85 oC
Mechanical:
Over mold: PVC 70Pa UL94V-0 Black
Pre mold: PE Low Density
Contact: Copper Alloy.
Insertion Force: 35 N Max.
Withdraw Force: 10 N Min
Best Quality+Good Warranty,do not hesitate to contact with us

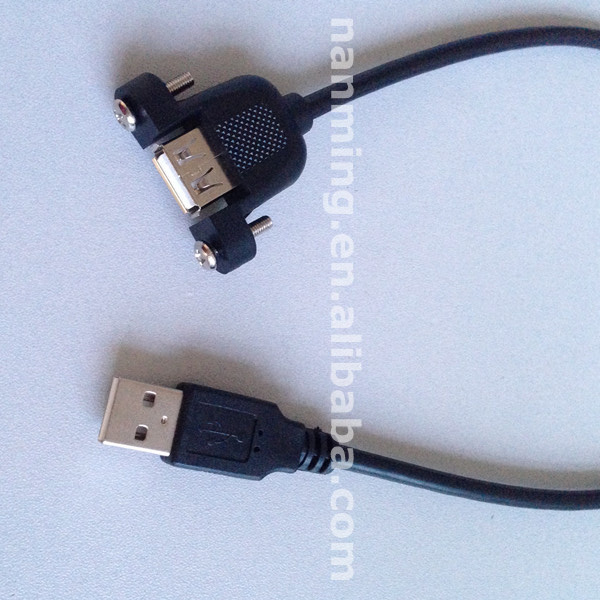

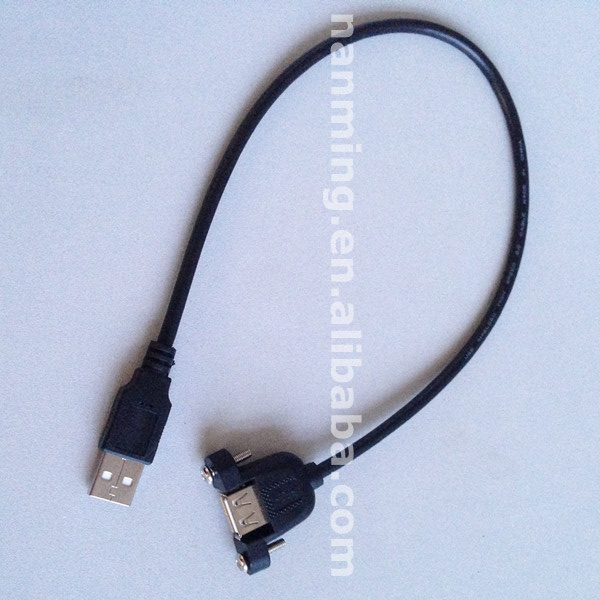

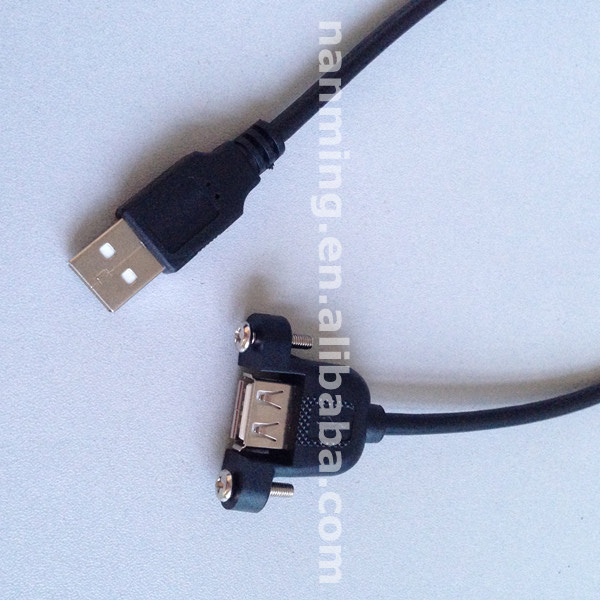

Cable pictures:
Transportation:
All available shipping ways could be applied, by courier, air or sea.
Your appointed forwarders or our own forwarders all could be used for shipment.
Full-way tracking the cargos for you before the goods arrive.
Globe Market:
Depending on advanced technology and knight service, we establish a good and diligent team and keep nice business relationship with a large amount of worthy clients in global market. We are prepared to provide the best products to clients at competitive price. In addition to control of cost and quality, our stipulated lead-time, variety of designs, capability of product development and flexibility of service bring convenience and value added services to the clients.
Contract us:
We highly appreciate your any enquiry by email, fax or instant message.
We will reply your email or fax within 12 hours.
Please fell free to call us at any time if you have any questions.
FAQ:
1. Do you provide samples?
Yes, Two samples for free .Dear ,freight fee charged by your side.
2. What is your minimum order quantity?
The MOQ is 100 pcs , but the quantity for OEM should be 2000 pieces or more.
3. What about your production capacity?
We can produce 30k boxes or 10,0000 pieces a month.
4. Where is your company?
Our company and factory all are in Shenzhen.
5. Can you make OEM?
Of course.
| 1) Type: | USB 2.0 female panel mount cable with lock screw |
| 2) Connecor: | Gold ,Nickel plated; |
| 2) Conductor: | Pure Copper; Tinned Copper |
| 4) Gauge: | 30AWG,28AWG,26AWG optional; |
| 5) Length: | 0.5M,1.5M,2M,5M Customized; |
| 6) Jacket color: | Beige,Black,Transparent; |
| 7) Edition: | 1.1/2.0/3.0 Version Optional. |
| ？Guarantees 100% compliance with current USB specifications. |
| ？Molded-strain relief construction for flexible movement, durability, and fit. |
| Reduces cross talk and interference with aluminum undermold contact. |
| ？Complies with fully rated cable specification using braid-and-foil shield protection. |
| ？Power strands are 24AWG x 2, data strands are 28AWG x 2. |
