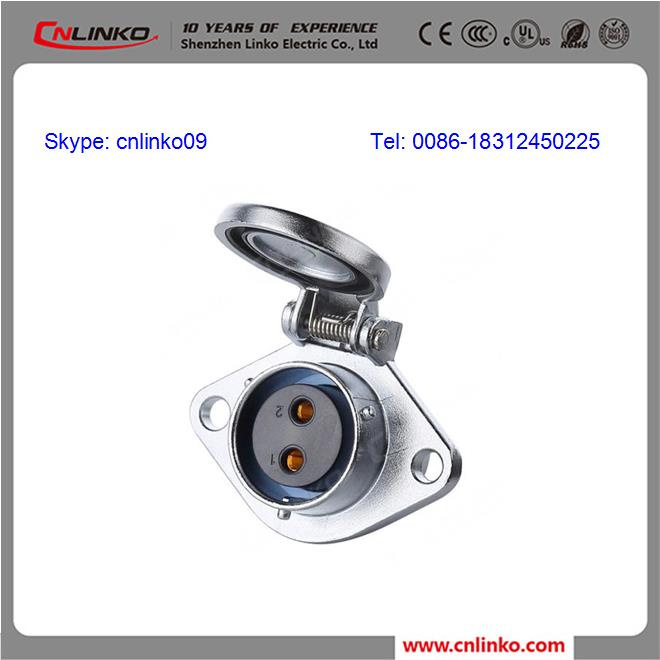

Panel Mount 2pin Female Socket Connector

Name: Panel Mount 2pin Female Socket Connector
Brand: all-electronics-online.com
SKU: 781916545
Availability: InStock
Rating: 4.3 (43 reviews)

Price:	US $ 2.42/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	100/Piece
Pay Type:	L/C,T/T,Paypal,Money Gram,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	YA-20-J02SX-01-001
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Connector Pin:	2pin
Connector Type:	Female Socket
Rated Current:	20A
Operating Voltage:	500V
Withstanding Voltage:	2500V
Gender:	Male
Application:	UHF

Product Description

Panel mount 2pin female socket connector

Our connector has been widely used in :
1.LED display
2.Lighting equipment ,
3.AUDIO,Live stage action,DMX lighting.
4.industrial control test and measurement equipment
5.AV systems,broadcast television and communications industry and other fields.

Product Specification:

YA-20-J02SX-01-001 female socket
Specifications:
Connecting mode:	plug & unplug
Protection level:	IP65/IP68
Cable specification:	2.5mm2 ~ 4 mm2 /14~12 AWG
Diameter range:	Φ8mm ~Φ12mm
Contact diameter×Qty:	Φ2.7×2
Current rating(A):	20A
Operating voltage(AC.V.rms):	500V
Withstand voltage(AC.V)1min:	2500V
Contact resistance:	<1mΩ
Insulation resistance:	>500MΩ
Durability:	≥500 mating&unmating cycles
Temperature rating:	-40°C~80°C
Method of connecting cable:	Solder
Prevent the combustion level:	UL94-V0
Temperature rise:	20A per contact at 30°C, 25A per contact at 40°C, 30A per contact at 50°C.

Material:
Shell&insulated parts:	High performance engineering plastics
Hardware metal:	Zinc alloy(pearl hard chromium)
Contact pin:	Copper alloy(gold-plated)
Spring:	Stainless steel
Sealing:	Silica gel

Main characteristics:
- Sealed against dust and fluid (IP65/IP68)
- Vibration resistance,impact resistance,stretching resistance
- 1/4 bayonet connect; socket with Metal cover

Packaging & Shipping

Normally, our price is based on our box packing.
Customized packing is welcome , MOQ of printing customized box is 1000 pcs/model
Delivery Detail: 7-10 working days after received deposit .
You may choose our shipping partner or your own partner .
100% T/T in advance is required after confirming the order.

Our Services

CE,CCC,CUL,UL, ROHS, ISO9001:2008 Standard.
Supply OEM service .
We have professional quality control system and R&D department to strictly manufacture each product.
100,000 pcs per month .
National level laboratory , and have flexible production line, to make quick action to urgent customized needs.
We will supply the best service to you . Anything ,please feel free to contact us at:
Eunice Tan Mobile: +86-18312450225/15013650758

Founded in 2004, Shenzhen Linko Electric Co., Ltd is a manufacturer in designing and manufacturing and marketing in the field of connectors.

We adhere to such principles"Integrity-base, quality-first, technological precedence&greater perfection. " After 10 years stabled developed, perfect management system was established, with creative, efficient, dedicated, rigorous R&D team, advanced production line.

Powerful product testing and quality testing laboratory and also covers dozens of professional files testing, excellent sales team and strong channels distribution net work.

Specializing in design high-performance industry connectors and approved by identification UL(E365869), CE, CCC, ISO9001-2008 and also with more than dozens of patents and international certifications.

We will always keep skills fresh and up-to data with international.

Cnlinko's products are widely used in variety of challenging enviroments, such as LED screen, LED lighting, Audio visual equipment, stage lighting, industrial automation equipment, heavy industrial equipment and the others.

Welcome to visit us and joint designing and develop new products, For the goal win-win cooperation and mutual benefit.
