Panel Mount RJ45 Socket Connector

Name: Panel Mount RJ45 Socket Connector
Brand: all-electronics-online.com
SKU: 785695685
Availability: InStock
Rating: 4.7 (38 reviews)

Price:	US $ 3.2/Piece
Trade Terms:	FOB,EXW
Min Order:	100/Piece
Pay Type:	L/C,T/T,Paypal,Money Gram,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	YT-RJ45-JSX-16-001
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Connector Type:	RJ45 Socket
Waterproof Level:	IP65/67
Certification:	Ce, RoHS, CCC, ISO9001
Flammability Rating:	UL94-V0
Connecting Mode:	Plug/Unplug
Gender:	Female
Application:	UHF

Product Description

Panel mount rj45 socket connector

Product Datasheet:

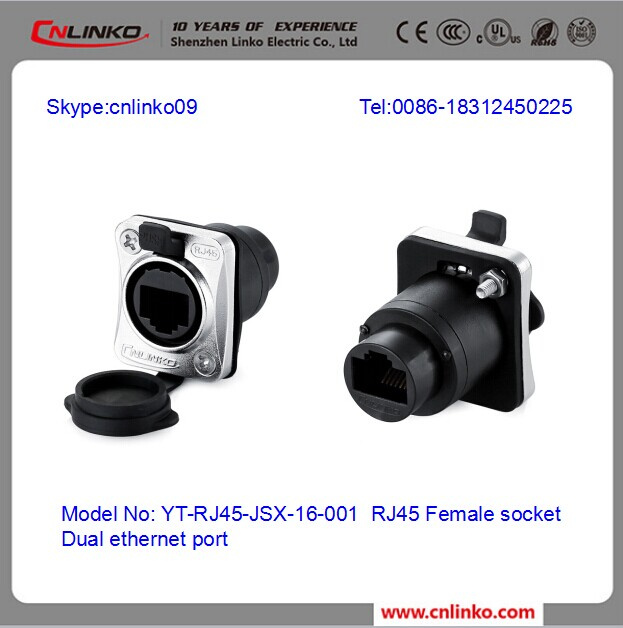

YT-RJ45-JSX-16-001 Female socket
Specification
Connecting mode:	Quickly connect
Protection level:	IP67
Cable specification:	0.15 mm2 ~ 0.2mm2 /26~24AWG
Diameter range:	Φ5.5mm ~Φ7mm
Contact diameter×Qty:	8
Current rating(A):	1.5A
Withstand voltage(AC.V)1min:	1000V
Contact resistance:	<30mΩ
Insulation resistance:	>500MΩ
Durability:	≥500 mating&unmating cycles
Temperature rating:	-40°C~80°C
Method of connecting cable:	solder
Prevent the combustion level:	UL94-V0
Produce type:	RJ45

Material:
Shell&insulated parts:	High performance engineering plastics
Hardware metal:	Zinc alloy(pearl hard chromium)
Contact pin:	Copper alloy(gold-plated)
Spring:	Stainless steel
Sealing:	Silica gel

Main characteristics:
- Sealed against dust and fluid (IP65/IP67)
- Vibration resistance,impact resistance,stretching resistance
- With one hand, can quickly insert or pull out

Application industries:
- Stage equipment	- The smart grid
- Medical equipment	- Server
- Solar energy equipment	- Ship equipment
- Electric power equipment	- Vehicle equipment
- Communications equipment	- Heavy machinery

Packaging&Lead time& Payment term

Packageing: 10pcs/small box, 100pcs/middle box, 240pcs/master box
Lead time: 3-5 working days after got the full payment
Payment term: T/T in advance or Western union

Contact information:

Contact person: Eunice Tan
Mobile phone: +86-18312450225/1513650758

Website: www.cnlinko.com

Founded in 2004, Shenzhen Linko Electric Co., Ltd is a manufacturer in designing and manufacturing and marketing in the field of connectors.

We adhere to such principles"Integrity-base, quality-first, technological precedence&greater perfection. " After 10 years stabled developed, perfect management system was established, with creative, efficient, dedicated, rigorous R&D team, advanced production line.

Powerful product testing and quality testing laboratory and also covers dozens of professional files testing, excellent sales team and strong channels distribution net work.

Specializing in design high-performance industry connectors and approved by identification UL(E365869), CE, CCC, ISO9001-2008 and also with more than dozens of patents and international certifications.

We will always keep skills fresh and up-to data with international.

Cnlinko's products are widely used in variety of challenging enviroments, such as LED screen, LED lighting, Audio visual equipment, stage lighting, industrial automation equipment, heavy industrial equipment and the others.

Welcome to visit us and joint designing and develop new products, For the goal win-win cooperation and mutual benefit.
