Panel Outlet Socket/IEC60309 Connector for Distribution Cabinet

Name: Panel Outlet Socket/IEC60309 Connector for Distribution Cabinet
Brand: all-electronics-online.com
SKU: 789673165
Availability: InStock
Rating: 4.5 (91 reviews)

Price:	US $ 10/Piece
Min Order:	100/Piece
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	163RC6W/323RC6W
Gender:	Female
Application:	UHF

Product Description

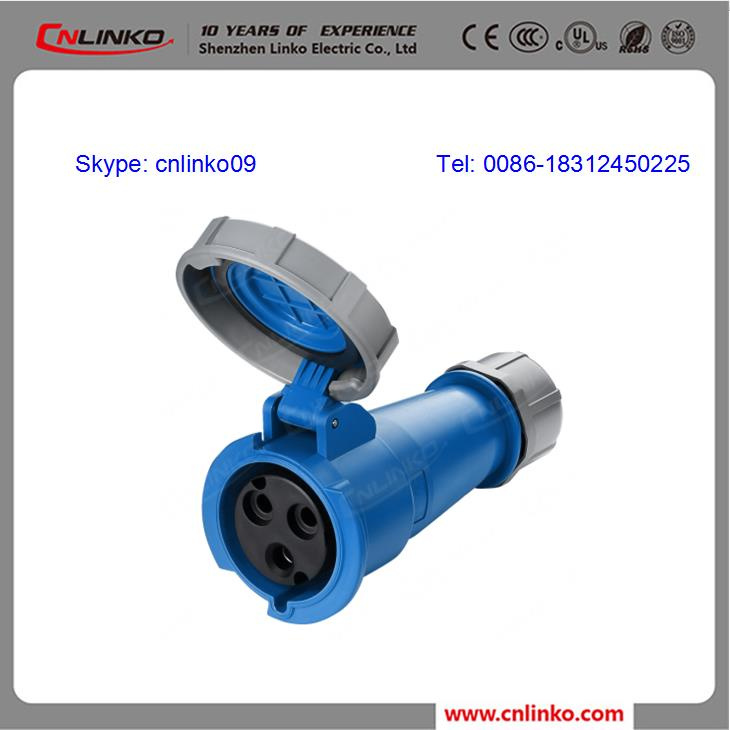

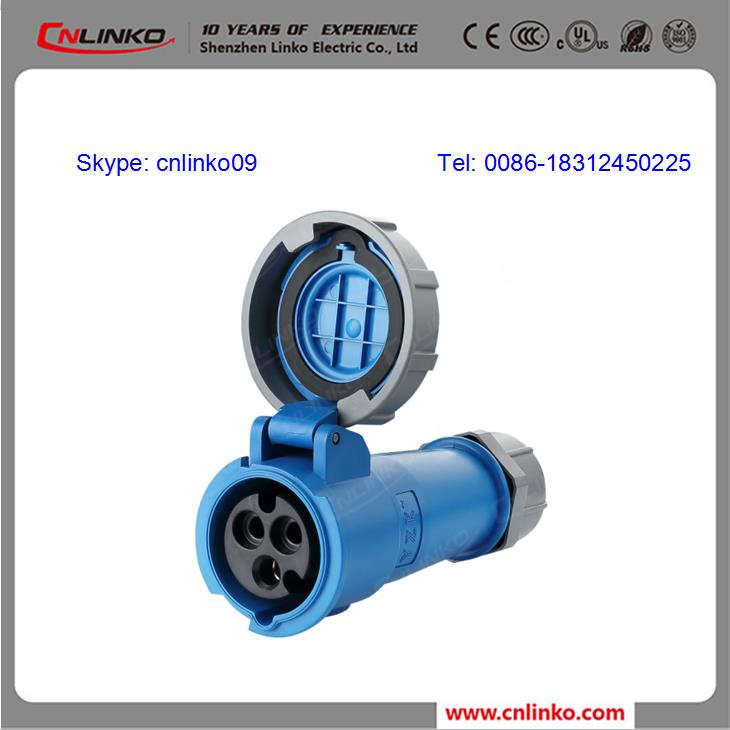

Panel Outlet Socket/IEC60309 Connector for Distribution Cabinet

Product Description

1.Portable installation,with dustproof,moistureproof,corrosionproof,flame retardant,high temperature resistant,anti-aging,toughness,impact resistance and high current.
2.High quality and performance , IEC60309 connectors are widely used in mining,petrochemial construction,cocks,factories,covention centers and municipal engineering.
3.Products comply with international standard IEC60309-2 and consistent with national standards GB/T11918-2001,GB/T11919-200 and also have passed CE&ROHS certification.
4.Product passed the rigorous testing,test frequency 10-500HZ ,acceleration of 10g,displacement 1.5mm ,vibration free within the product off 0.1 microsecond transient process.
5.Waterproof,wiring safety which face a variey of practical applications in the top programs wiring safety,screw preventing device,manually install,simple flexible and fast.
6.Using high quality of beryllium copper contact terminals ,spring contacts and gold-plated technology to control temperature and reduce the friction during the plug and pull,also easy to plug and self-cleaning.

Electrical
Dielectric Voltage:Withstands 3,000V AC Min.
Working Voltage:440V AC RMS.
Operations:Mechanical 10,000 cycles, electrical 6,000 cycles.

Mechanical
Impact Resistance:In accordance with UL 746C.
Terminal Identification:In accordance with UL, CSA and international conventions.
Product Identification:Identification and ratings are part of the external label and molded into
the receptacle mount.
Mounting:External adjustable feet.

Environmental
Moisture Resistance:Outdoor - 4X (Watertight, Washdown)
Indoor - 12 (Dusttight, Falling Dirt and
Noncorrosive Liquids).
Ingress Protection:IP67 Suitability.
Flammability:UL94-5VA and V-0 Classification.
Operating Temperature:Max. Continuous +75 ° C; Min.
Continuous -40 ° C.
UV Resistance:All materials are UV stabilized.
