Parallel Four Cores Medical Cable

Name: Parallel Four Cores Medical Cable
Brand: all-electronics-online.com
SKU: 829551245
Availability: InStock
Rating: 4.9 (73 reviews)

Price:	US $ 600-700/Roll
Min Order:	2/Roll
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	CC2-500-4
Length:	1500m/Spool
CTN Size:	360mm360mm260mm
Weight:	9kg
Application:	Medical Cable
Conductor Material:	Plastic
Cover Material:	PVC
Certification:	Reach
Type:	Plastic Optical Fiber Cable
Conductor Type:	Step Index
Wire Core Material:	PMMA
Model:	Cc2-500-4
Brand:	Hypof

Product Description

Feature

1. Low cost for maintenance, saving cooper resource, energy-saving and environment protection.

2. Immune to electromagnetic wave radiation, no noise effect, good capacity of resisting disturbance.

3. Low weight, flexible, high resist flutter and determinate cleavage, durability.

4. High bandwidth, high speed, good performance.

5. High privacy protection, reliable safety.

6. Optimum bandwidth, high speed, good performance.

7. Close coupling, high illumination, stabile attenuation.

8. Easy installation, needlessness for special tools and fusion welding, and cut at will by your request.

9. Waterproof, Dampproof, Antimagnetic, free of magnetic and thunders

Application

1. FTTH (fiber to home)

2. Consumer electronics

3. Automobile intelligence

4. Industry control and monitor system

5. Military communication

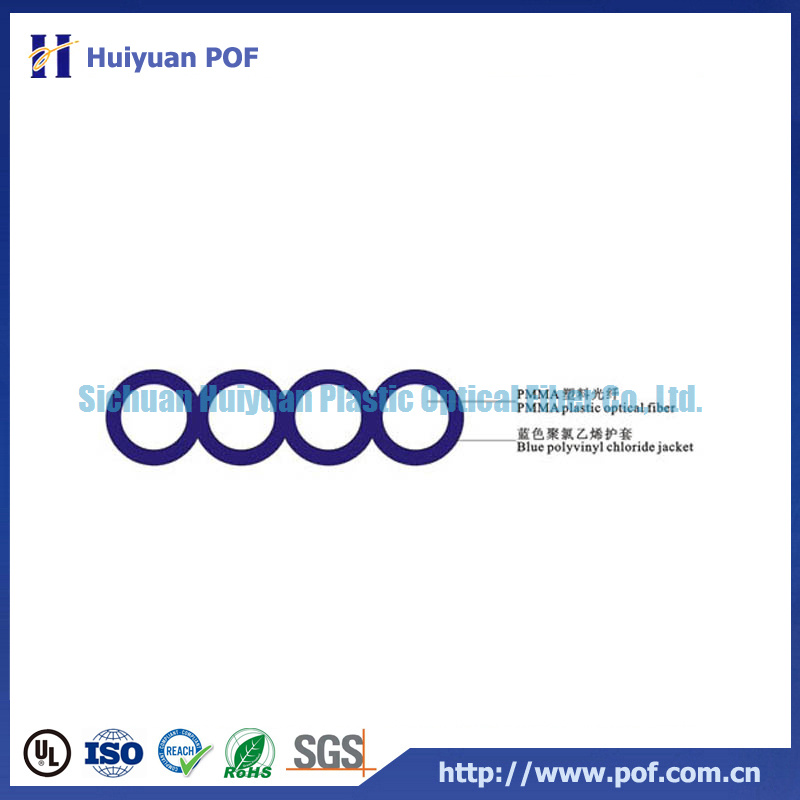

Product structure

Item		Specification	Unit
Plastic Optical Fiber	Core Material	Polymethyl Methacrylate	-
	Cladding Material	Fluroresin	-
	Core Refractive Index	1.49	-
	Cladding Refractive Index	1.41	-
	Refractive Index Type	Step Index	-
	Numerical Aperture	0.50±0.05	-
	Core Diameter	485±30	μm
	Cladding Diameter	500±30	μm
Jacket	Material	PVC	-
	Color	blue	-
	Diameter	1.0±0.1/4.0±0.1	mm
Unit Weight		3.4	g/m
Certification		ISO9001,RoHS,REACH	-

Sichuan Huiyuan Plastic Optical Fiber Co., Ltd is a high-tech company which specializes in researching, manufacturing and marketing of low-loss PMMA plastic optical fiber, optical cable as well as its applications.

Launched in 2000, the company had realized the mass production of Low Loss PMMA POF through independent R &D of optical fiber raw materials, manufacturing equipment and production process in 2003, which was recognized as the first success in China. The company's products have broken the monopoly of foreign companies and filled the gaps in the domestic industry. Based on this success, the company had undertaken and accomplished the technological breakthrough task of the National Science and Technology Department, the Industrialization Upgrading Project of the State Development and Reform Commission, and the independent manufacturing of fluorine resin clad material, with the optical attenuation < 0.2dB / m, which has achieved an advanced level among the similar products in the world>.

It has developed the technology of lighting products, and has cultivated a large number of lighting manufacturers and lighting dealers; PMMA POF is widely used in decorative lighting in China.

We are expanding our market to oversea market! Sincerely welcome any contact from dealer in communication and lighting area around the world!
