| Prod Model: |
SPT Cable |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Insulated |
| Conductor Material: |
Copper |
| Conductor Type: |
Solid |
| Insulation Material: |
PVC |
| Application: |
Underground |
| Certification: |
SGS,Son |
| Brand: |
Zhenhua |

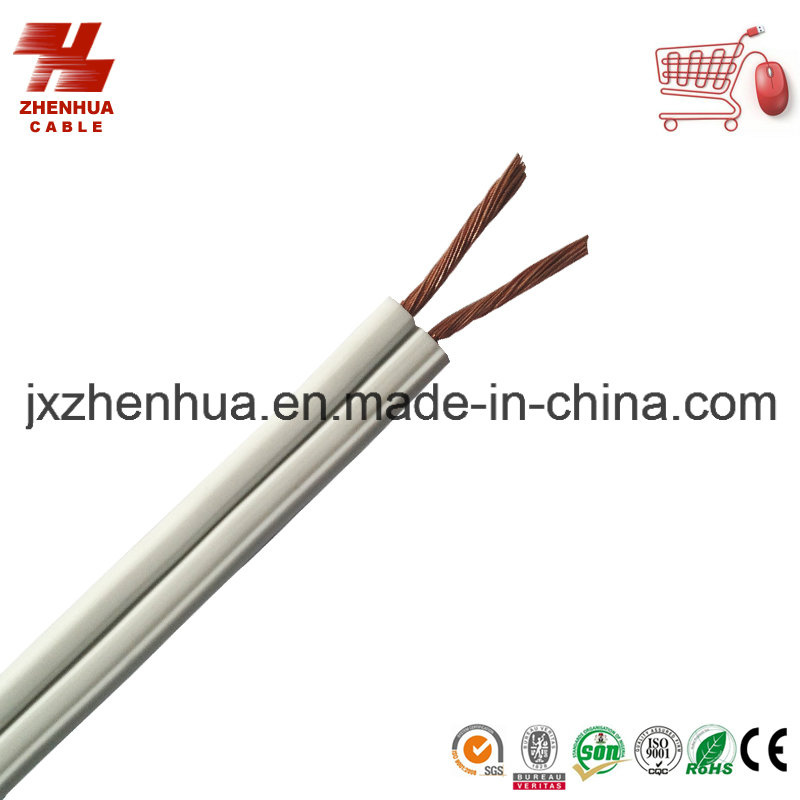

Product Description
Product Description: 1. Conductor: Stranded Annealed Copper wire or CCA Wire
2. Insulation: PVC sheathed
3. Rating Voltage: 300V 60°c- 105°c
4. PVC Color: White/Grey/Black
5. SIEZ: 10AWGx2C 12AWGx2C;14AWGx2C;16AWGx2C ;18AWGX2C ;20AWGx2C .
6.UL standard Approval
TYPE SPT-1 : LAMP CORD: LAMP CORD: 60°C- 105°C 300V (UL/CSA)TYPE SPT-2 : LAMP CORD: Same as SPT-1, but heavier construction, 300V
TYPE SPT-3: LAMP CORD : Same as SPT-2, but heavier construction, 300V
Applications: SPT-1 Lamp Cord is indended for use in household appliances, including clocks, lamps, radios and fans.Conductors: Annealed, bunch stranded copper per UL 62Insulation: Polyvinylchoride (PVC) per UL 62SPT-1 Lamp Cord Features: Resist Oils, Water, Acids, Alkalies, Ozone SPT-2 Lamp Cord is indended for use in household appliances, including clocks, lamps, radios and fans.Conductors: Annealed, bunch stranded copper per UL 62Insulation: Polyvinylchoride (PVC) per UL 62 SPT-2 Lamp Cord Features: Resist Oils, Water, Acids, Alkalies, Ozone SPT-3 Lamp Cord Features:Resist Oils, Water, Acids, Alkalies, OzoneTwo Conductor cord for use as internal wiring of air conditional and refrigeration equipment Three conductor
SPT-3 cord fror power supply to domestic refrigeration equipment and window type air conditioners
Contact Info.:
JIAXING ZHENHUA WIRE&CABLE CO., LTD
Add:Zhangqiao Village ,Shiquan Town,Haiyan County,ZhejiangProvince,P.R.China Attn: Roy Cell:0086-18658163419 Web:www.zhenhuacable.com.cn
Detail Specifications:
|
Application: The cables are used as connecting line or inner wiring in power installation, household appliances, electric tools, machines etc. |
|
Type: SPT-1 : Thermoplastic, parallel-jacketed, light duty cord use in damp locations, 300V |
|
SPT-2 : Same as SPT-1, but heavier construction, 300V |
|
SPT-3 : Same as SPT-2, but heavier construction, 300V |
|
Reference Standard: UL 62 approved |
Rated Voltage: 300V |
Rated Temperature: 60°C –105°C |
|
Conductor: Stranded Bare Copper/copper clad Aluminum (CCA) |
Insulation : PVC |
|
Type |
AWG/No.of cores |
NO./Normal Diameter of strand(mm) |
Normal Thickness of Insulation(mm) |
Over Diameter of Cable(mm) |
|
SPT-1 |
20 x 2c |
21/0.18 |
0.78 |
2.55 x 5.1 |
|
18 x 2c |
41/0.16 |
0.76 |
2.7 x 5.4 |
|
18 x 3c |
41/0.16 |
0.76 |
2.7 x 8.0 |
|
SPT-2 |
18 x 2c |
41/0.16 |
1.14 |
3.4 x 6.8 |
|
16 x 2c |
65/0.16 |
1.14 |
3.7 x 7.4 |
|
18 x 3c |
41/0.16 |
1.14 |
3.5 x 8.6 |
|
16 x 3c |
65/0.16 |
1.14 |
3.8 x 9.6 |
|
SPT-3 |
18 x 2c |
41/0.16 |
1.52 |
4.4 x 8.7 |
|
16 x 2c |
65/0.16 |
1.52 |
4.8 x 9.5 |
|
14 x 2c |
41/0.254 |
2.03 |
6.0 x 12.0 |
|
12 x 2c |
65/0.254 |
2.41 |
7.4 x14.0 |
|
10 x 2c |
105/0.254 |
2.79 |
9.1x18.2 |
|
18 x 3c |
41/0.16 |
1.52 |
4.4 x 10.7 |
|
16 x 3c |
65/0.16 |
1.52 |
4.8 x 11.8 |
|
14 x 3c |
41/0.254 |
2.03 |
6.0 x 14.5 |
|
12 x 3c |
65/0.254 |
2.41 |
7.4x16.5 |
|
10 x 3c |
105/0.254 |
2.79 |
9.1 x 18.8 |
Jiaxing Zhenhua Wire & Cable Co., Ltd. Was established in 1999, who is a professional cable manufacturer and specializing in various wire & cable. Covering Electrical building wire (Single, Twin, Multi-core), Power Cable(Armoured Cable), Welding Cable(AUTO&Battery Cable), Speaker cable, Audio &Vedeo cable, Telephone Cable, Coaxial Cable(RG59/6), LAN Cable(Cat5e/6),
Alarm Cable, PV Solar cable etc.
We have strict quality control system and pass the ISO9001: 2008 QUALITY MANAGEMENT SYSTEM CERTIFICATE as well as we have CE and SONCAP Certificate
Our cable factory is located in Haiyan county, Zhejiang Province which is very close to Shanghai and Ningbo Port with convenient transportation access, So we can deliver the goods by all kinds of transportation for saving the customer`s cost on inland freight.
Welcome to visit our cable factory and we are expecting to cooperate with all kinds of cable importers, wholesaler &retail trader from all over the world as well as double-win with our partners and build long-time business relationship. Since the establishment, we have implemented the business philosophy"QUALITY FIRST, CUSTOMER FIRST, HONEST FIRST. "That is our presistent persuit to offer you excellent service and quality guarantee.
It`s your best choice to use ZHENHUA CABLE!
