Pass Fluke Text UTP Cat5e Cable

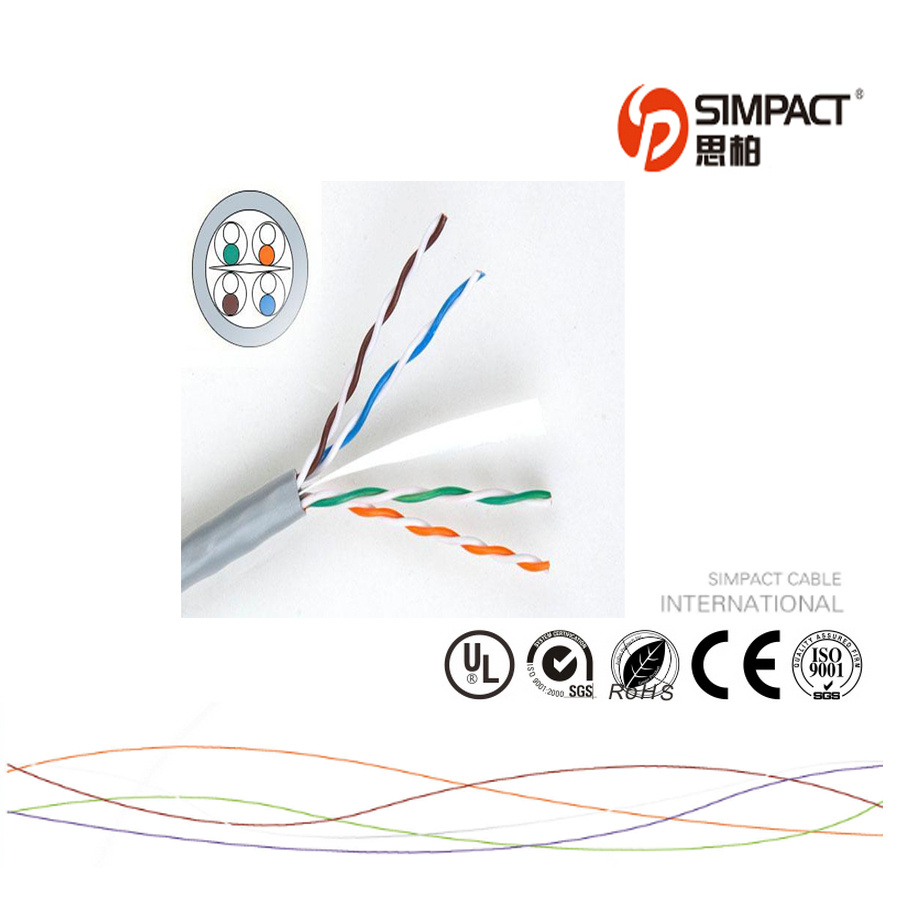

Name: Pass Fluke Text UTP Cat5e Cable
Brand: all-electronics-online.com
SKU: 780283405
Availability: InStock
Rating: 4.9 (140 reviews)

Price:	US $ 30-44/Box
Trade Terms:	FOB,CFR,CIF
Min Order:	50/Box
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	HSYV-5E
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Structure:	Single Strand Bare Solid Copper Wire, PE Insulatio
Flame Resistance Level:	Cmx. Cm, MP, Cmg, Mpg, Cmr, Mpr
Conductor Od:	0.48mm
Rated Temperature:	75 Degrees Centigrade
Standards:	UL444, Tia/Eia568b, ISO/IEC11801
1.0`100.0MHz Impedance(Ohms):	100+/-15
1.0~350.0MHz Delay Skew(Ns/100m):
20c Conductor D.C, Resistance(Ohms/Km):
Unbalance Of Pair(%):
Flame Resistant Type:	Cmx. Cm, MP, Cmg, Mpg, Cmr, Mpr
Application:	LAN Cable
Conductor Material:	Copper
Cover Material:	PVC
Certification:	UL
Type:	Cat5e
Model:	Hsyv-5e
Brand:	Simpact/ OEM

Product Description

Structure: Single strand bare solid copper wire, PE insulation, two insulated conductors twisted to be one pair

Applicable to network for audio and (ISDN), 10Base-T, 100 Base-T4, 100Base-TX, 100VG-Any LAN, 155Mbps ATM, 622Mbps ATM TPDDI Fast speed and Extreme Networks.

Electrical Characteristics:

Frequency	RL	SRL	ATTEN	NEXT	PSNEXT	ELFEXT	PSELFEXT	DELAY
(MHZ)	(db)	(db)	(db/100m)	(db/100m)	(db/100m)	(db/100m)	(db/100m)	(ns/105700m)
0.772	16.7	25.2	2.0	68.9	67.5	68.0	69.2	560
1	18	28.0	2.0	66.2	64.9	65.4	65.4	554
4	19.8	28.0	4.0	57.9	57.2	53.7	54.8	545
8	20.8	27	5.2	56.2	55.0	49.0	50.3	544
10	22	25.0	6.2	51.9	48.3	44.7	44.7	542
16	22	26.0	7.9	49.5	46.3	42.5	42.5	540
20	22	26.2	8.6	47.2	44.5	40.2	39.8	539
25	20.2	26.5	9.7	45.9	42.9	37.3	37.3	536
31.3	19.6	25.8	16.5	41.2	38.2	30.9	30.9	536
62.5	18	25.7	21.2	38.4	34.8	25.6	25.6	535
100	17	22.4	18.7	32.8	28.6	22.6	23.7	533

Guangdong Simpact Technology Corp. Is located in Huadu District, Guangzhou Overseas Chinese Science and Technology Industrial Park, a land area of 90 acres, 50.08 million yuan of registered capital of the company, has a staff of 500 people. Is a research and development, production and sales in one of the digital communication cable manufacturer specializing in the production and sales of the network wire, communication wire, the production capacity and the largest in the forefront of the industry in the province, China Telecom, China Unicom, China Mobile Communications co-production supplier of wire, the current annual turnover of over $ 500 million annual tax amount of thousands of yuan.

Products comply with ISO9001-2008 standard certification, copper, fiber products by UL U. S. Federal certification, the European RoHS certification, CE certification and national Theil, the technical indicators meet the requirements, "Simpact" brand by China' S industry and commerce administration trademark Office registered the prestigious both at home and abroad.

Simpact has branches and offices in the major cities of Guangzhou, Shenzhen, Beijing, Shenyang, Chongqing, Chengdu, Hangzhou, Shijiazhuang, In addition to the domestic market, but also exported to Europe, the Americas. The company adhering to the "quality first, customer first" business philosophy, in recent years, in the increasingly severe market competition, Simpact excellence, strict quality control, attention to after-sales feedback to ensure the survival of enterprises in the competition in the development of competition, and move forward in the competition.

Work Simpact, the better!
