| Prod Model: |
ul2464 |
| Name: |
UL2464 Hook up Cable |
| Model Number: |
UL2464 |
| Rated Voltage: |
300V |
| Test Voltage: |
2000V |
| Insulation: |
Special Hardness Heat-Resistant and Flame-Retardan |
| Conductor: |
Solid or Stranded Bare or Tinned Copper |
| Flame Test: |
UL VW-1 & CSA FT1 and Jqa F-MARK Flame Retardane T |
| Rated Temperature: |
80 Degree |
| Advantage: |
Heat Resistance,Cold Resistance,Flame Retardant |
| F-MARK Flame Test Application Standard: |
UL 758, UL 1581 & CSA C22.2 No.210.2 |
| Type: |
Insulated |
| Conductor Material: |
Copper |
| Insulation Material: |
PVC |
| Certification: |
VDE |
| Conductor Type: |
Solid or Stranded |
| Application: |
Internal Wiring of Electronic or Electrical Equipm |
| Range Of Application: |
for General Purpose Internal Wiring of Electronic |
| Brand: |
Jiukai |
Product Description

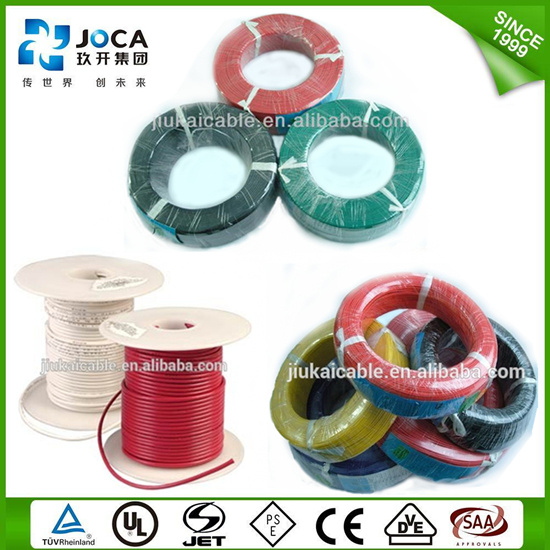

Item: pass ULvw-l flame test ul2464 300v fireproof electrical wire --- Code:8544492100
Product Description & Parameters
| Conductor | Insulation | Drain wire | Braiding | Jacket | Max. conductor resistance at 20ºC (Ω/km) | Compressive strength(VAC,1min) |
| Size AWG | Structure NO./mm | O.D. mm | Core No. | Thick mm | O.D. mm | Structure | Structure NO./mm | Thick mm | O.D. mm |
| 28 | 7/0.127 | 0.38 | 2 | 0.41 | 1.2 | 7/0.127 | 64/0.1 | 0.8 | 4.50 | 239 | 2000 |
| 3 | 0.41 | 1.2 | 64/0.1 | 0.8 | 4.70 |
| 4 | 0.41 | 1.2 | 80/0.1 | 0.8 | 5.00 |
| 5 | 0.41 | 1.2 | 80/0.1 | 0.8 | 5.40 |
| 6 | 0.41 | 1.2 | 80/0.1 | 0.8 | 5.70 |
| 7 | 0.41 | 1.2 | 80/0.1 | 0.8 | 5.70 |
| 8 | 0.41 | 1.2 | 96/0.1 | 0.8 | 6.10 |
| 26 | 7/0.16 | 0.48 | 2 | 0.41 | 1.3 | 7/0.16 | 64/0.1 | 0.8 | 4.70 | 150 | 2000 |
| 3 | 0.41 | 1.3 | 64/0.1 | 0.8 | 4.90 |
| 4 | 0.41 | 1.3 | 80/0.1 | 0.8 | 5.20 |
| 5 | 0.41 | 1.3 | 80/0.1 | 0.8 | 5.60 |
| 6 | 0.41 | 1.3 | 96/0.1 | 0.8 | 6.00 |
| 7 | 0.41 | 1.3 | 96/0.1 | 0.8 | 6.00 |
| 8 | 0.41 | 1.3 | 96/0.1 | 0.8 | 6.40 |
| 24 | 11/0.16 | 0.61 | 2 | 0.41 | 1.45 | 11/0.16 | 80/0.1 | 0.8 | 5.00 | 94.2 | 2000 |
| 3 | 0.41 | 1.45 | 80/0.1 | 0.8 | 5.20 |
| 4 | 0.41 | 1.45 | 80/0.1 | 0.8 | 5.60 |
| 5 | 0.41 | 1.45 | 96/0.1 | 0.8 | 6.00 |
| 6 | 0.41 | 1.45 | 96/0.1 | 0.8 | 6.40 |
| 7 | 0.41 | 1.45 | 96/0.1 | 0.8 | 6.40 |
| 8 | 0.41 | 1.45 | 112/0.1 | 0.8 | 6.80 |
| 22 | 17/0.16 | 0.76 | 2 | 0.42 | 1.6 | 17/0.16 | 80/0.1 | 0.8 | 5.30 | 59.4 | 2000 |
| 3 | 0.42 | 1.6 | 96/0.1 | 0.8 | 5.50 |
| 4 | 0.42 | 1.6 | 96/0.1 | 0.8 | 5.90 |
| 5 | 0.42 | 1.6 | 96/0.1 | 0.8 | 6.40 |
| 6 | 0.42 | 1.6 | 112/0.1 | 0.8 | 6.90 |
| 7 | 0.42 | 1.6 | 112/0.1 | 0.8 | 6.90 |
| 8 | 0.42 | 1.6 | 120/0.1 | 0.85 | 7.50 |
| 20 | 26/0.16 | 0.94 | 2 | 0.43 | 1.8 | 26/0.16 | 80/0.1 | 0.8 | 5.70 | 36.7 | 2000 |
| 3 | 0.43 | 1.8 | 96/0.1 | 0.8 | 6.00 |
| 4 | 0.43 | 1.8 | 96/0.1 | 0.8 | 6.50 |
| 5 | 0.43 | 1.8 | 112/0.1 | 0.8 | 7.00 |
| 6 | 0.43 | 1.8 | 112/0.1 | 0.85 | 7.60 |
| 7 | 0.43 | 1.8 | 112/0.1 | 0.85 | 7.60 |
| 8 | 0.43 | 1.8 | 120/0.1 | 0.88 | 8.20 |
APPLICATION: Suitable for electronic equipment matching wiring, inside and outside of machine (such as office computer system, recorder, X machines etc.)
Can be used as a measurement, detection and control cable.Used in machine tool manufacturing, equipment installation, power plant, heating and air-conditioning systems, refrigeration equipment, office automation equipment and data processing system.
Good heat resistance, cold resistance and flame retardant.
Able to bear external mechanical forces and certain wear resistance.
Wire clear core color, simple and convenient for installation.
Shielding anti-interference characteristics
STRUCTURE: Conductor: Single or stranded bare copper or tinned copper
Insulation: Special hardness heat-resistant and flame-retardant PVC
Jacket:Mixed 80degree heat resistant and flame retardant PVC, Pass the VW-1 flame test standard
Colour: Any color
Sheilding: PET-AL-PET Tape+bare copper or tinned copper braiding+same specifications of drain wire
CHARACTERISTIC: Uniform thickness of wire to ensure easy stripping and cutting.
Oil-resistance, resistant to acid and alkali
Moistureproof,mould proof, environmenal friendly, etc.
TECHNICAL PARAMETERS: Voltange rating: 300V
Test voltage:2000V
Temperature: 105 ºC(80 ºC/90 ºC Selectable )
Flame test: UL VW-1 & CSA FT1 and JQA F-mark flame retardant test
