Passive Component Fiber Optic Connector

Passive Component Fiber Optic Connector
Price: US $ 0.28/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 100/Piece
Pay Type: T/T,Western Union,Paypal
Prod Model: TK-5002
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color Customization: Available
Delivery Time: Within 2 to 4 Days
Free Sample: Available
Transmission Medium: Singlemode or Multimode
Structure: Sc/LC/FC/St
Number Of Cores: Single or Multi Core
Ferrule Endface: PC/Upc/APC/Spc
Connector Type: Sc/LC/FC/St

Product Description

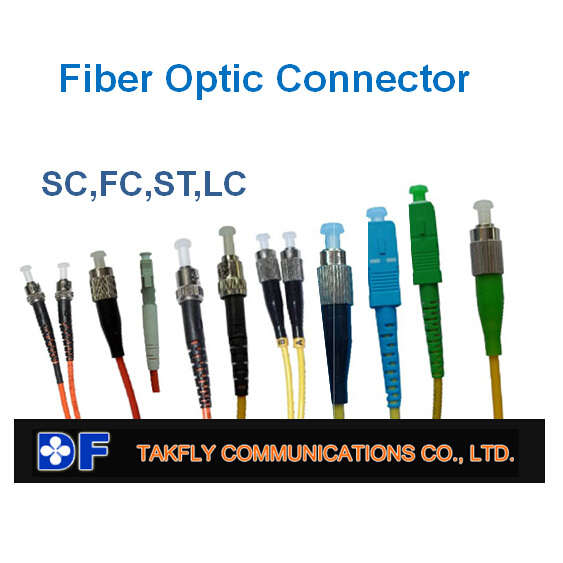

Fiber Optic Connector


Feature:

Low insertion loss and return loss
Free-floating ceramic ferrule
UL-rated plastic housing and boot
Boots in a variety of colors
High precision alignment

Availability:
-The connector can be supplied as a pre-assembled one-piece connector or as connector kits.
Housing kits without ferrule are available.
-UPC, PC and APC are available


Application:
1. CATV, metro test equipment; FTTH;
2. Telecommunication networks;
3. Local area networks (LAN);
4. Wide area networks (WAN);
5. Premise installations;
6. Data processing networks;
7. Video and military active device termination.
8. Optical Distribution Frame
9. Optical Network Equipments

ItemSingle modeMulti mode
Insertion lossPC≤0.20dB, UPC ≤0.25dB, APC ≤0.25dB<0.3dB
Return lossPC ≥50 dB, UPC ≥55 dB & APC ≥60 dB>25dB
Insert-pull test1000(times) <0.2dB
Operating temperature-40°C~ +80°C
Ceramic ferrule spec125.5um concentricity deviations: <1um127um concentricity deviations: <3um
Suitable fiberPC/APC(9/125um)PC(50/125um, 62.5/125um)
Takfly Communications Co., Ltd. is a Hi-Tech enterprise having its own brand and specializing in R&D, manufacture and sales of fiber optical communications equipments.

The main products of TAKFLY include fiber optic patch cord, connector, adapter, optical coupler, attenuator, optic media converter, optic splice closure, optic terminal box, ODF etc, which are widely used in telecommunications, broadband, broadcast, CATV and network industry. All the products acquired the approval of the Network Access License for Telecommunication Equipment Ministry of Information Industry, PRC, ISO9001, UL and CE standard, which ensure the reliability and make them sold very well not only in the domestic market but also the overseas market.

TAKFLY was establish in 2000, grow up rapidly. Now it has workshop area about 3000 square meters, more than 200 workers, the production capacity of fiber optic connectors is about 600, 000PCS per month. It controls the quality constantly and strictly in order to give the best products to the users. The outstanding features and advantage are the high technology, professional and excellent sales team, efficient and sound management, competitive price, wide and superior channels, as well as high-quality and flexible service.

Many international exhibitions upgraded "TAKFLY" as the well-known brand in the world. To be the super leader of the optical communications scopes in China is the goal of TAKFLY. In the next five years, TAKFLY will keep the strategic pattern of development ---"based in South China, penetrate into whole country, extend over the world". It will bring the fiber optic industry into a brilliant future. TAKFLY--- Your Honest Team, will be always ready for you.
