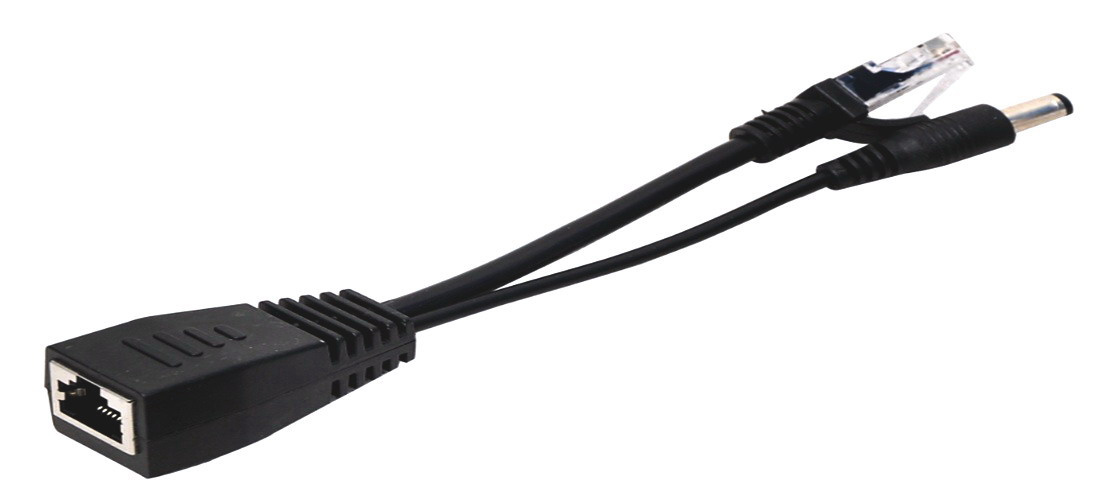

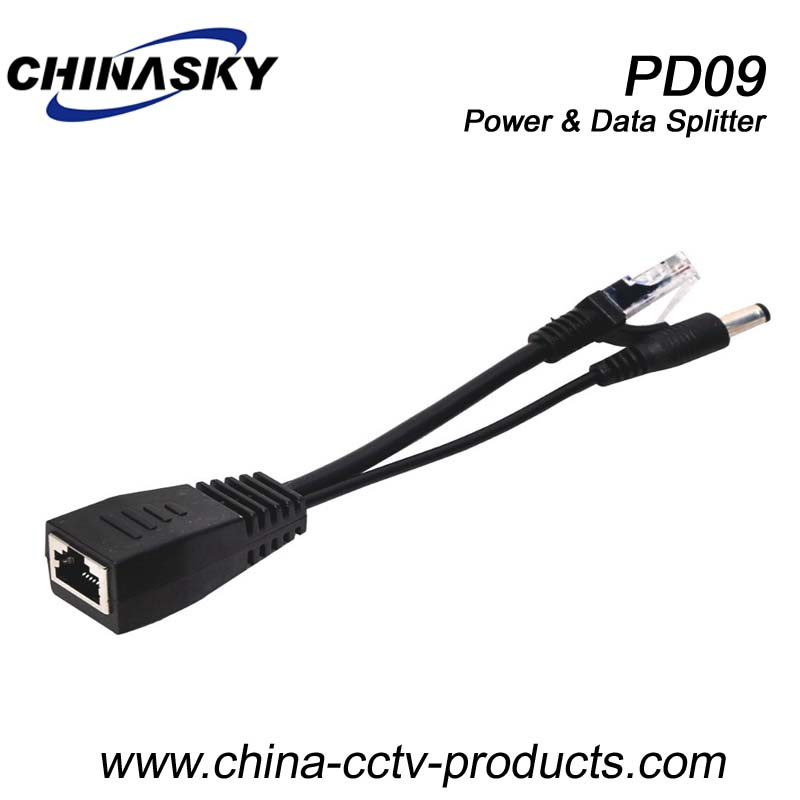

Passive Poe Splitter Cable with Poe Splitter and Poe Injector (PD09)

Name: Passive Poe Splitter Cable with Poe Splitter and Poe Injector (PD09)
Brand: all-electronics-online.com
SKU: 781264435
Availability: InStock
Rating: 4.6 (57 reviews)

Price:	US $ 0.71-0.75/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	PD09
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Product:	Passive Poe Splitter Cable
Application:	IP Camera, Wireless Ap, IP Phone
LED Indicator:	Poe Power/LAN Network Working State
Connectors:	1 RJ45 and 1 DC Male
Input Voltage:	DC12V-24V-48V
Output Voltage:	DC12V-24V-48V
Size:	150mm
Weight:	0.025kg
Port:	1 Single Port
Poe Power Supply Method:	4/5+, 7/8-

Product Description

Passive PoE Splitter Cable with PoE Splitter and PoE Injector (PD09)

Advantage
This type of splitter can be separated power from data signal through net cable transmission. Supporting the use of PSE equipment which meet IEEE802.3AF/AT standard, it also provides data and power for which doesn't support PoE network equipment. This product supports width voltage DC12-24-48V input and output, cooperated with power supply equipment, used in the places where lack of power cable or away from power plugs, for example, IP Camera, Wireless AP, IP Phone, etc. Through this way to solve no power wiring restrictions.

Specification

Product	PoE Splitter
Model	PD09
Basic Function	Max. transmission distance is 30m Plugs and play, without management
LED Indicator	PoE Power/LAN Network working state
Input Voltage	DC12V-24V-48V
Output Voltage	DC12V-24V-48V
Using Environment	Working Temperature: -10ºC~50ºC Storage Temperature: -40ºC~70ºC Working Humidity : 10%~90% non condensing Storage Humidity : 5%~90% non condensing
POE Power Supply Method	4/5+,7/8-
Size	150mm
Weight	0.025kg
