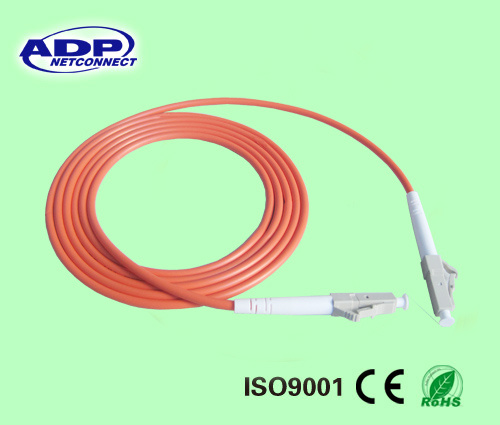

Patch Cord Fiber Cable Orange (LC-LC)

Prod Model:	Patch Cord Fiber Cable Orange (LC-LC)
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Orange, Yellow, Blue......Optional
Length:	1/2/3m....Optional
Connector:	LC-LC
Delivery Time:	20days
Application:	Communication
Type:	Multi-mode Fiber
Connection Structure:	LC
Certification:	ISO9001
Brand:	ADP

Product Description

Patch cord fiber cable orange(LC-LC)
Fiber Type: OS1 9/125 Corning fiber Operating Wavelength: 1310 nm
Connector Type Polishing: SC/UPC SC/APC LC/UPC LC/APC D4 MU DIN ST/UPC E2000/UPC E2000/APC SMA ESCON MTRJ
Fiber Cable Jacket Type: PVC /LSZH Simplex/ Duplex 3.0mm/ 2.0mm/0.9mm
Insertion loss ≤ 0.20dB,
Return loss UPC≥ 50 dB, APC≥ 60 dB
Radius of curvature nm 10 ≤ R ≥ 25
Curvature eccentricity um <50
Fiber core undercut nm <50
Insertion loss change<0.1, Return loss change<5, No flab, No distortion
Repetitiveness (dB): Insertion loss change<0.1, Return loss change<5
Insert & pull out: Max: 2KG
Tensile strength dB 0- 10KG per minutes
Fully tested cables to ensure superior quality and durability
RoHS Compliant
Optical Fiber Jumper
For Multi Mode:
Fiber Type: 62.5/125(OM1) 50/125 (OM2) 10GIG(OM3)
Operating Wavelength: 850 nm
Connector Type Polishing: SC/UPC LC/UPC D4 DIN ST/UPC MU E2000/UPC SMA ESCON MTRJ
Fiber Cable Jacket Type: PVC /LSZH Simplex/ Duplex 3.0mm/ 2.0mm/0.9mm
Insertion loss ≤ 0.20dB,
Radius of curvature nm 10 ≤ R ≥ 25
Curvature eccentricity um <50
Fiber core undercut nm <50
Insertion loss change<0.1, Return loss change<5, No flab, No distortion
Repetitiveness (dB): Insertion loss change<0.1, Return loss change<5
Insert & pull out: Max: 2KG
Tensile strength dB 0- 10KG per minutes
Fully tested cables to ensure superior quality and durability
RoHS Compliant
FeaturesLow insert loss; Good repeatability; Good changeability; Good temperature stabilization.
Mechanism Features: Insert and pull frequency > 1000; Changeability(dB) ≤ 0.20Tensile strength <0.1; Ascillating test <0.1.
Condition Features: High temperature <0.2; Low temperature <0.2.
Use: Applied in optical fiber communications system, fiber optic data transmission, LAN, optical fiver sensors and optical CATV.
Description SC/PC-SC/PC SM 9/125 Φ 3.0 Simplex 3M Patch Cord
Item No. Test Item Unit Standard & Requirement
1 Appearance / No crack, No scar, good conformability
2 Ferrule polished end / No scar, No spot
3 Insertion loss dB SM≤ 0.2,
4 Return loss dB APC≥ 60 PC≥ 50
5 Curvature eccentricity um <50
6 Fiber core undercut um - <50
7 Fall apart test dB H=1M, connector free-falling 5 times Insertion loss change<0.1, Return loss change<5, No flab, No distortion
8 Repetitiveness dB Insertion loss change<0.1 Return loss change<5
9 Insert & pull out / Max: 2KG
10 Tensile strength dB 0- 10KG per minutes Insertion loss change<0.1, Return loss change<5, No flab, No distortion
11 Addition dB 2.5Kg, 200times, 10times/minutes, ± 80° Insertion loss change <0.1, Return loss change<5, No flab, No distortion
12 Package / Clean, Correctitude, No dirt
13 Allowable bending radius mm
