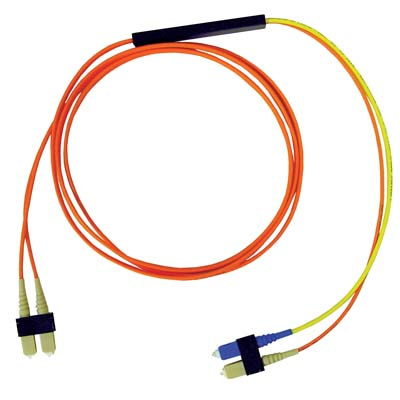

Patch Cord for Mode Conditioning Patchcord

Name: Patch Cord for Mode Conditioning Patchcord
Brand: all-electronics-online.com
SKU: 716284075
Availability: InStock
Rating: 4.7 (21 reviews)

Price:	US $ 8-10/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	PCMC
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Insert Loss:	< 0.20db
Return Loss:	> 50db
Durability:	< 0.20 Db Typical Change, 1000 Mating
Features:	Mode Conditioning Patch Cord
Application:	Communication
Type:	Multi-mode Fiber
Connection Structure:	SC
Certification:	ISO9001
Brand:	Datolink

Product Description

Name: Patch Cord for Mode Conditioning patchcord

Features:

Permanent displacement seal, low loss
Adapt update cable design
Other connection mode available according customer requirements
Screen different value delay effection.
Substitute standard equipment-cable equipment patch cord

Fiber patch cord Complies with IEC, Telcordia GR-326-CORE standard
Low insertion loss and high return loss
PC/UPC/APC polishing
Diameter: 0.9, 2.0, and 3.0mm
Single or multi mode is available
4 fiber, 6 fiber, 8 fiber 12 fiber or 24 fiber is available
10G fiber or LSZH cable is available
Excellent changeability and repeatability
Tensile strength: 10N
Operating temperature range: -40 to 80° C
Storage temperature range: -40 to 80° C
Color of cable: Yellow (SM), Orange (MM), and Aqua (OM3)

Other
Pack Qty	1
Lengths	0.5mt, 1mt, 2mt, 3mt, 5mt, 10mt, 15mt, 20mt
Outer Jacket	LSZH/PVC
Fibre Patch Leads
Connector Type/s	FC,SC,ST,LC,MTRJ
Fibre Sizes Available	62.5/125 (OM1), 50/125 (OM2), 50/125 (OM3)
Number of Cores	2/Duplex

Shenzhen Datolink Communication Technology Co., Ltd. Was founded in the January of 2007 by several engineers, who have had many years of working experience in fiber optical as well as in structured cabling industry. Datolink is a high technology oriented company with fiber optical products and structured wiring. We are dedicated to the design, manufacture and sales, meanwhile, we can provide customers with complete cabling solutions in installation and maintenance.

The company has a strict and comprehensive system of quality control and approved the standard ISO9001: 2000. Is well connected with raw materials providers and factories worldwidely, to offer customers a broad line of products with competitive prices and very soon time of delivery.

Our products have been exported to over 20 countries and regions such as Europe, Middle East, Southeast Asia, Latin America, etc. Datolink Ltd is committed to offer the partners high quality products and professional services, we look forward for the successful development with mutual-benefits, for casting the future of fiber optical and structured cabling!
