| Prod Model: |
Fiber Optic Patch Cord |
| Fiber Type: |
G657A/G652D/Om2/Om3/Om4 |
| Operating Wavelength: |
850/1310/1550nm |
| Material: |
PVC, LSZH |
| Mode: |
Sm, mm Optional |
| Insertion Loss: |
≤0.15dB |
| Connection Type: |
Sc, LC, St, FC,Mu,E2000, etc |
| Polish: |
Upc/APC |
| Application: |
Probe |
| Connection Structure: |
SC-SC |
| Certification: |
ISO9001 |
| Type: |
Fiber Optic Patch Cord |
Product Description

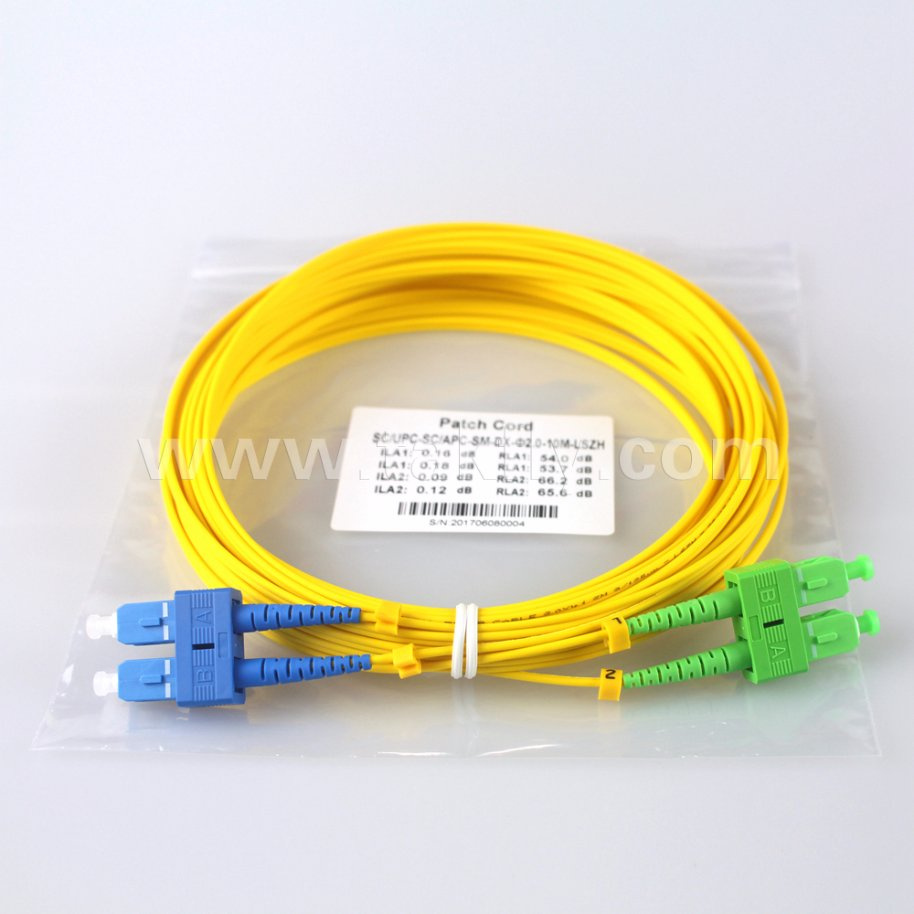

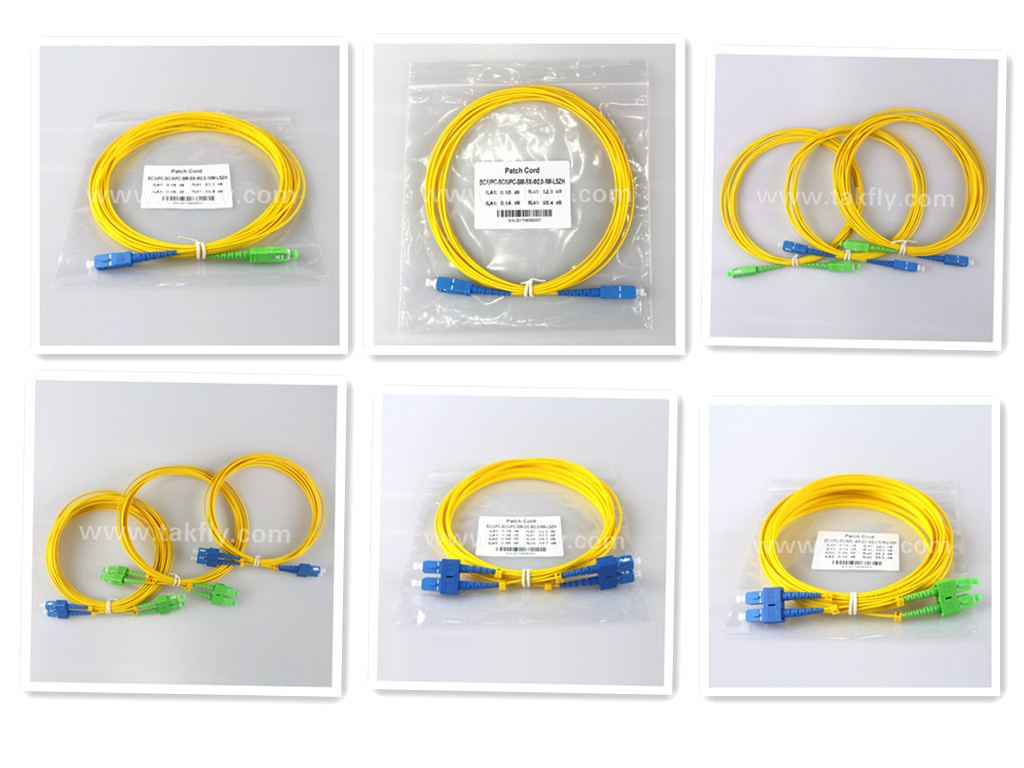

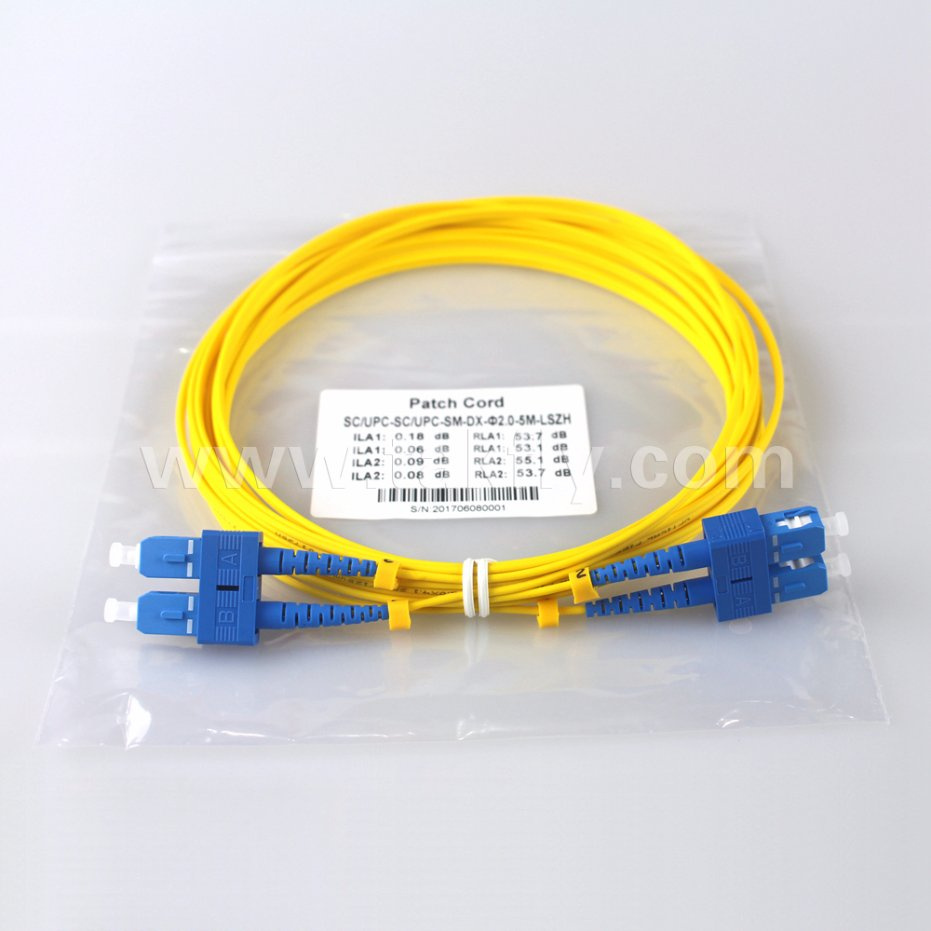

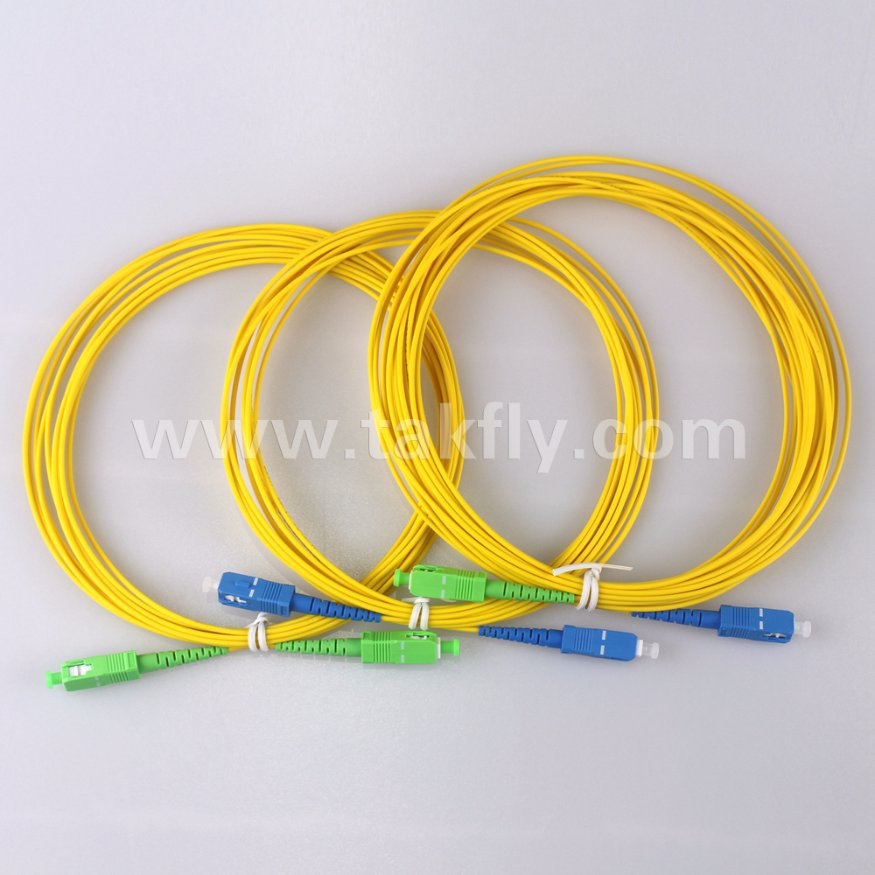

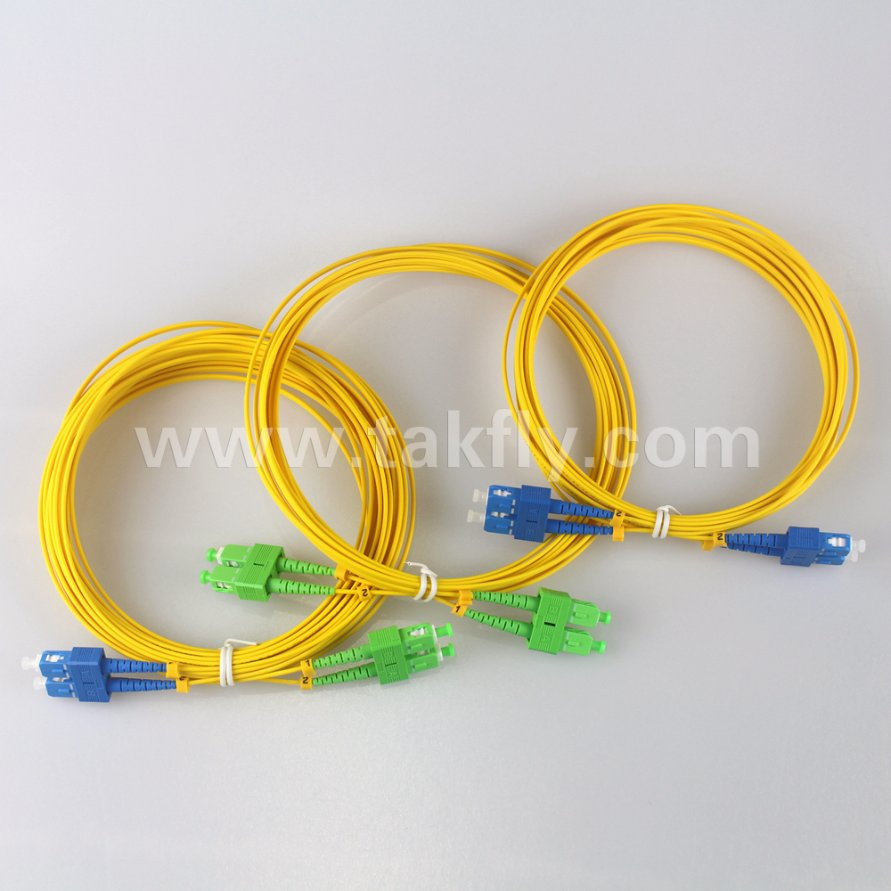

Patch Cord SC-SC SX DX A/UPC Fiber Optic Patch Cord
FEATURES:
Type LX.5 Fiber Optic Patchcord and Pigtail
Single mode and Multimode
PC or 8 degree APC 9 degree APC
Cable 0.9mm, 2.0mm, 2.4mm or 3.0mm with simplex or duplex and 4,6,8,12,24,48 CoreCustom order length
Cable color green, yellow, orange or Customized
DesignsCable PVC,Hytrel,LSZH,OFNP,OFNRAll parts compliant with ROHS
IEC standard compatibleGR-326-CORE Compliant
APPLICATIONS:
Telecommunication
CATVLAN & WANNetwork
Broadband
FTTH
PARAMETER:
| Item | Mode Type | PC | SPC | UPC | APC |
| Insertion Loss | SM | ≤0.25dB | ≤0.20dB | ≤0.20dB | ≤0.15dB |
| MM | ≤0.30dB | ≤0.20dB | ≤0.20dB | ≤0.30dB |
| Return Loss | SM | ≥45dB | ≥50dB | ≥55dB | ≥65dB |
| MM | ≥35dB | ≥35dB | ≥35dB | ≥35dB |
| Repetition Test | Additional Loss≤0.1dB,Reture Loss Variability<5dB |
| Temperature Stability(-40ºC~85ºC) | Additional Loss≤0.2dB,Reture Loss Variability<5dB |
| Operating Temperature | -40ºC~+75ºC |
| Storage Temperature | -40ºC~+75ºC |
ORDER INFORMATION:
| CODE | CONNECTOR | CABLE SIZE | FIBER TYPE | CABLE TYPE | FIGURE |
| H03 | 1.SM Simplex
2.MM Simplex
3.APC Simplex
4.SM Duplex
5.MM Duplex
6.APC Duplex | 1. 0.9
2. 2.0
3. 3.0
| 1.9/125
2.OM3
3.50/125
4.62.5/125 | 1.Yellow PVC
2.Orange PVC
3.White PVC
4.Yellow LSZH
5.Orange LSZH
6.White LSZH | 1.Blue
2.Beige
3.Green
4.Black
5.Blue and Yellow
6.Red and Black
|
Company Information:

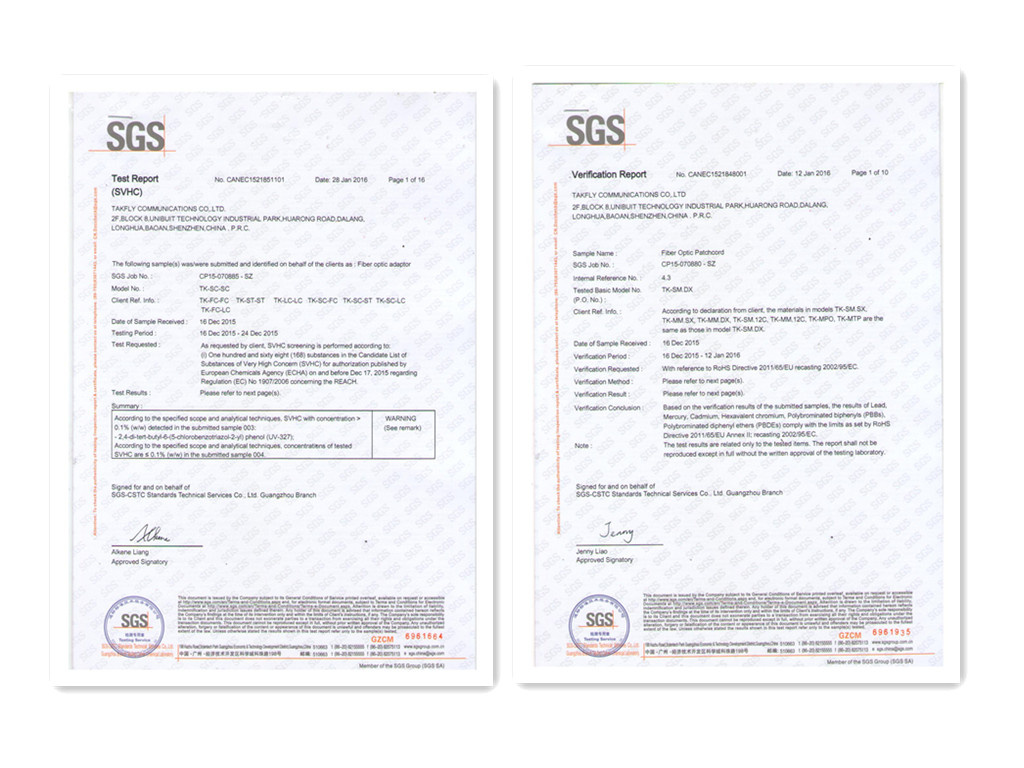

Takfly, established in 2000, has been manufacturing and exporting in fiber optic communications for more than 15 years. Mainly supplying fiber cable, adapter, attenuator, connector, coupler, splitter, termination box, ODF, fiber instruments, media conceiver, switch, optical module, CWDM/DWDM, etc. Takfly's products have passed the management verification: ISO14001: 2004. Our goods have passed RoHS, CE, ISO9001, FCC, etc. verifications.
With the development of optical communications, Takfly's turnover has been increasing steadily. To strengthen the brand recognition and communication with more clients, Takfly participates in several industrial exhibitions every year in the whole word.
The products we sell is manufactured by our own factories. Our main aim is to supply high quality goods to our customers. Therefore, Takfly has imported foreign advanced production equipment 5 years ago, mainly made in German, Japan. The skilled technicians and professional sales team are available. Standard production management system has been built. Any requirements and inquiries will be processed with 24 hours. Strict test is a must before delivery. Apart from these, we have steady transport service. So, we can provide you the optimal transportation.
No complaints is one of our aims. We believe that our products can help you win good reputation and market share.
Hereby, we sincerely hope to establish a long-term business relationship with you in the future.
Welcome to visit Takfly Communications Co., Ltd. We are waiting for your coming!
Why choose Takfly ?
Service
1.Customer's logo: Acceptable
2.General inspection on fixing before packing
3.Third party inspection: Acceptable
Quality Control
All products must go through five checks before manufacturing process
1.Material incoming inspection before production
2.Full check after every individual process finished
3.Full check after production half-done
4.Full check before packing
5.Spots check after production packed before shipping
Advantage
1.15 years experience in manufacturing fiber optic products..
2.Availability of R & D with more than 10 engineers.
3.Available of design and making mold with special molding house.
4.High quality, attractive price and fast delivery(2-7days)
5.OEM, ODM customer designs are also welcomed
6.More than 200 workers
7.Excellent service
Delivery:
1.Packing: Plastic bag& carton, Neutral packing or as your required.
2.Sample time: 1-3 days after confirm
3.Order lead time: 2-7working days depend on quantity and products.
4.Shipping port: Shenzhen China or HK
5.Shipping term: EXW or FOB
