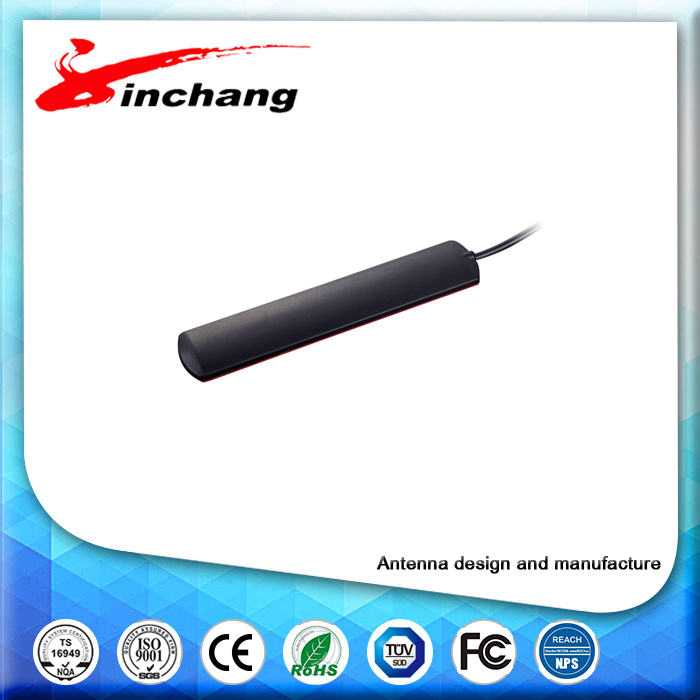

Name: Patch GSM Antenna 3G
Brand: all-electronics-online.com
SKU: 818427545
Availability: InStock
Rating: 4.9 (127 reviews)

Price:	US $ 0.95/Piece
Min Order:	100/Piece
Pay Type:	L/C,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	JCG017L
Usage:	Communication Antenna
Operating Wavelength:	Microwave
Directionality:	Omnidirectional Antenna
VSWR:	1.5~2
Material:	ABS

Product Description

Item		Specifications
Antenna	Frequency Range	824~960/1710~2170/2400~2500MHz
	Polarization	Linear
	Gain(Zenith)	GSM:2.0dBi WIFI:3.0dBi
	V.S.W.R	<2.0
	Impendance	50Ω

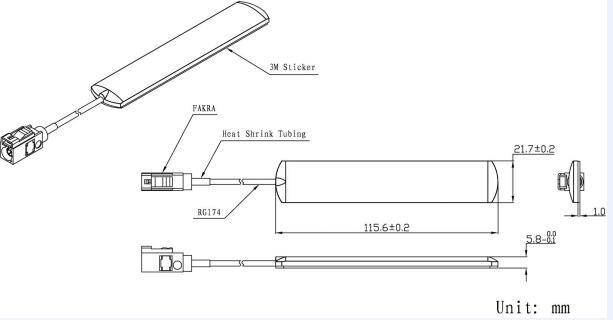

	PCB Dimension	104.6151mm
Mechanical	Cable	RG174
	Connector	FAKRA/SMA or others
	Radome Material	ABS
	Mounting Method	Adhesive
Environmental	Operating Temperature	-40ºC~+85ºC
	Relative Humidity	Up to 95%
	Vibration	10 to 55Hz with 1.5mm amplitude 2hours
	Environmentally Friendly	ROHS Compliant

Jiashan Jinchang Electronic Co., Ltd. is professionally engaged in the R&D, designing, manufacturing, and selling GPS and GSM antenna. It is a high and new technology company of Zhejiang Province and a leading manufacturer in high frequency antenna in China-mainland. Jinchang locates on Hang-Jia-Hu plain, and near Shanghai economic development zone, having a convenient traffic.

Main products: GPS antenna, GSM antenna, WiFi antenna, GPS/GSM combo antenna, GPS/GSM/FM antenna, GPS/GSM/WiFi antenna, all kinds of connectors and cable assemblies.

Jinchang has 12 patents till now. Its antenna serial products acquired new technology prize of Zhejiang Province, and won National New Production Creation Fund. Jinchang has passed ISO9001: 2000 certification while the products passed CE certification, and comply with RoHS directive.

Jiashan Jinchang Electronic Co., Ltd. is professionally engaged in the R&D, designing, manufacturing, and selling GPS and GSM antenna. It is a high and new technology company of Zhejiang Province and a leading manufacturer in high frequency antenna in China-mainland. Jinchang locates on Hang-Jia-Hu plain, and near Shanghai economic development zone, having a convenient traffic.

Main products: GPS antenna, GSM antenna, WiFi antenna, GPS/GSM combo antenna, GPS/GSM/FM antenna, GPS/GSM/WiFi antenna, all kinds of connectors and cable assemblies.

Jinchang has 12 patents till now. Its antenna serial products acquired new technology prize of Zhejiang Province, and won National New Production Creation Fund. Jinchang has passed ISO9001: 2000 certification while the products passed CE certification, and comply with RoHS directive.
