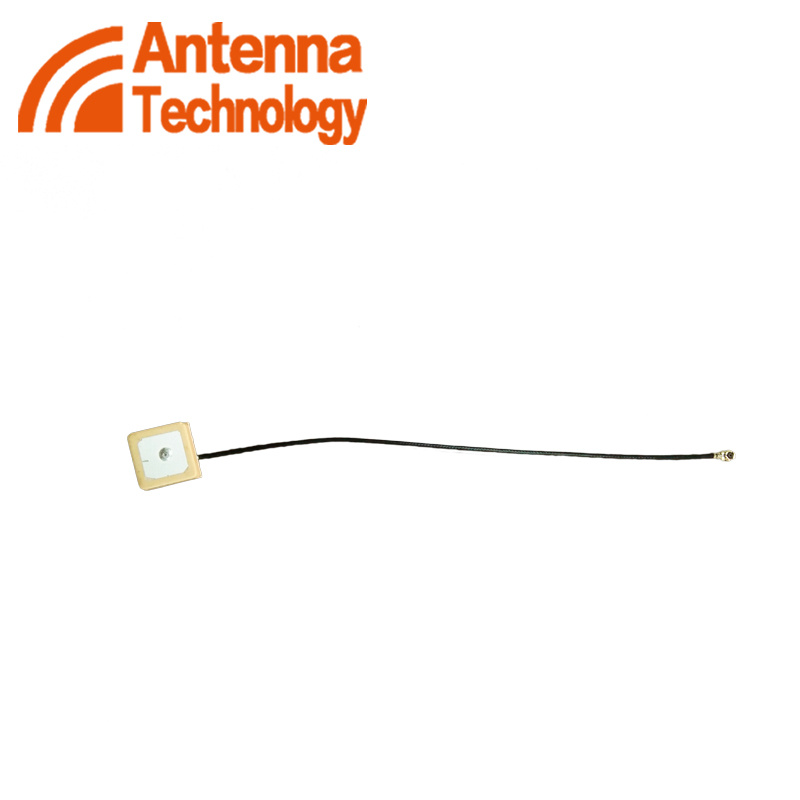

Patch Internal GPS Antenna with 1575.42MHz Frequency

Name: Patch Internal GPS Antenna with 1575.42MHz Frequency
Brand: all-electronics-online.com
SKU: 800521995
Availability: InStock
Rating: 4.6 (27 reviews)

Price:	US $ 1.25/Piece
Min Order:	3000/Piece
Pay Type:	T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	ATC-G005B
Frequency:	1575.42±1.023MHz
Gain:	28±2dB
Mounted With Car:	Sticked on Car Window by 3m Glue
Connector:	F Type/SMA/Fakra or Others
Usage:	Car Antenna
Directionality:	Directional Antenna
VSWR:	1.5~2
Operating Wavelength:	170-230MHz ,470-862MHz
Material:	Fr4/TPU/Copper/Rg174u
Sturcture Form:	Mounted on Rear Car Window by 3m Glue

Product Description

company information

Antenna Technology is a high-teach company in Guangdong Province. It is professionally engaged in designing, manufacturing and selling Car Antenna and mobile communication products, we always keep an eye on your demands and the developing trend of this industry, and have established a complete products system of car antenna.
Our company has 10 years experience in manufacturing car antenna.The superior engineers provide precondition for product innovation, perfect production and testing equipment provide the quality guarantee for our products.
As the international enterprise, we are aiming at bringing customers the highest quality products to satisfy your expectation and needs, a large group of skilled technician work hard in order to increase the benefit for customers.

specification

Origin	China
Brand	ATC
Model	ATC-G005B
Frequency	1575.42MHz±3
Polarization	RHCP
LNA Gain	28dB Typical
Noise Fingure	1.5dB
DC Voltage	3V , 5V, 3V to 5V and so on 2.7V/3V/3.3V/5V/3~5V
DC Current	5mA/10mA Max 20mA Max
VSWR	≤2.0
Impendance	50Ω
Bandwidth MHz	±5
Peak Gain	>3dBic Based on 7×7cm ground plane
Gain Coverage	>-4dBic at -90°<0<+90°(over75%Volue)
Filter Out Band Attenuation (f0=1575.42 MHZ)	7dB Min f0+/-20MHZ 20dB Min f0+/-50MHZ 30dB Min f0+/-100MHZ
Polarization	Vertical or Horizontal
Max power -W	100
Nominal Impedance-Ω	50
Packing	Poly Bag/Color Box/Double Blister
Warranty	3 years

packing

pratical application

Antenna Technology is a high-tech company in Guangdong Province. It is professionally engaged in designing, manufacturing and selling Car Antenna and mobile communication products; We always keep an eye on your demands and the developing trend of this industry, and have established a complete products system which is giving first to Car Antenna.

Provide the highest quality products and best service to create more value for customers. As the international enterprise, we are aiming at bringing customers the highest quality products to satisfy your expectations and needs, a large group of skilled technician work hard in order to increase the benefit for customers.

Product: Car AM/FM Antenna \GPS Antenna\GSM Antenna\TV Antenna\Shark fin Antenna\CB Antenna\T-DMB Antenna\DVB-T Antenna\Multi-Function Antenna\Antenna Cable and Accessories.

R&D: It has owned a R&D group of rich professional knowledge and practical experience, more designers have over 10 years R&D experience in SGM, Changan Suzuki, DongNan Mishubishi, Shanghai Automotive, VW, HaiMa Automotive, JMC, CHERY etc, They all have solid technical foundation and rich experience in production and guarantee the product quality, and the manager of company has operation skill in APQP, PPAP, DFMEA, PFMEA, CONTROL PLAN. And it has owned the design software for PRO/e, UG19.0, Catia V5r13, autocad 2006 and ADS2004, Protell99SE.

Our company owns advanced Network Analyzer, Signal Analyzer, Noise Figure Analyzer test equipments and 50 meters opened testing field. Environment Lab can process nature simulation testing of salt spray, aging, libration, pulling and High-low temperature.
