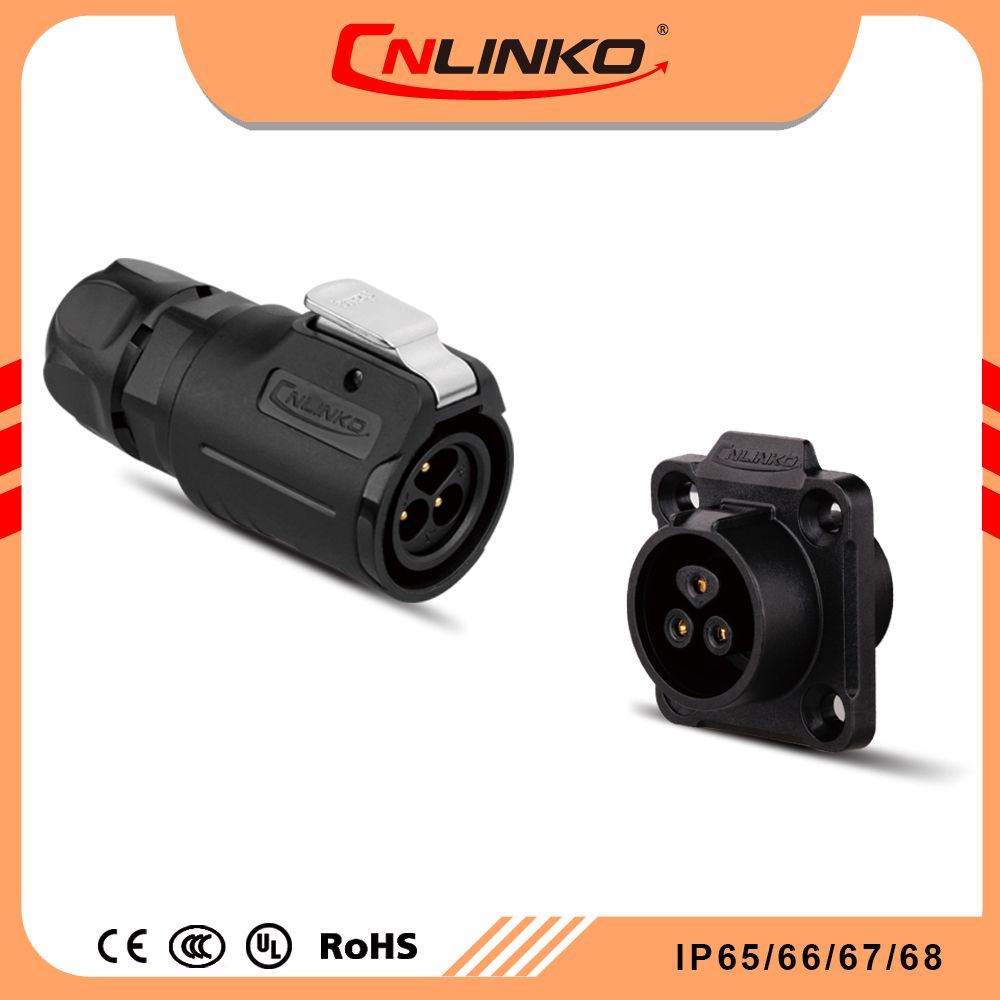

PBT Plastic M16 3 Pin Aviation Connector Powercon to Panel Mounting, Sodering Assembly Wire with Connectors

Product Description

CNLinko M16 5Pin Round Pin Plug Socket Waterproof Military Connector with Waterproof Cap Power Cable Assembly

LP-16 type connector are high quality and high precious with highest quality performance under harsh situation,be widely used in lighting system,Audio,Medical equipment,industrial control and testing measurement equipment and so on.

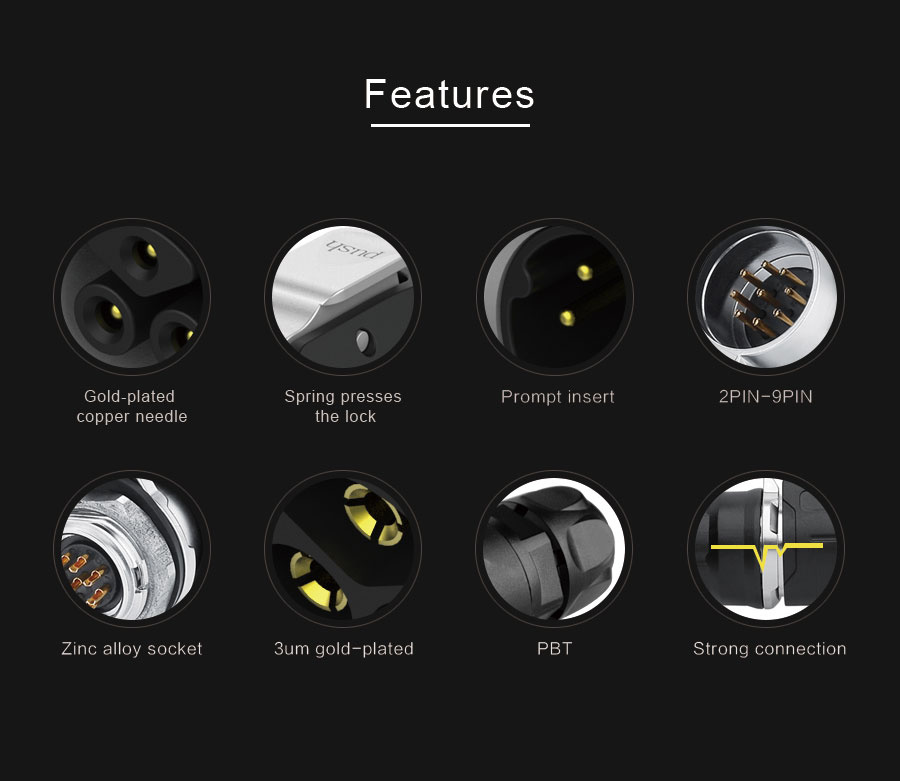

Features:

• multi-pins(2-9PINS) for varies industrial demands

• Zinc alloy material against high frequency noise and electromagnetic interference

• gold-plated contact, high performance of corrosion resistance and electrical conductivity effectively deal with temperature rise.

• PBT shell performance stable, compression, anti-explosion and anti-deformation

• rated current: 12A rms

• protection level:IP65/IP67









  Specifications
  Connecting mode	Latching Lock connect
  Protection level	IP67
  Cable specification	1.0mm2 ~ 1.5mm2 /14~12AWG
  Diameter range	Φ3mm ~Φ7mm
  Contact diameter×Qty	Φ1.5×4
  Current rating(A)	10A
  Operating voltage(AC.V.rms)	500V
  Withstand voltage(AC.V)1min	2500V
  Contact resistance	<2.5mΩ
  Insulation resistance	>500MΩ
  Durability	≥500 mating&unmating cycles
  Temperature rating	-40°C~80°C
  Method of connecting cable	Solder
  Prevent the combustion level	UL94-V0
  Material
  Shell&insulated parts	High performance engineering plastics
  Hardware metal	Zinc alloy(pearl hard chromium)
  Contact pin	Copper alloy(gold-plated)
  Spring	Stainless steel
  Sealing	Silica gel
  Main characteristics

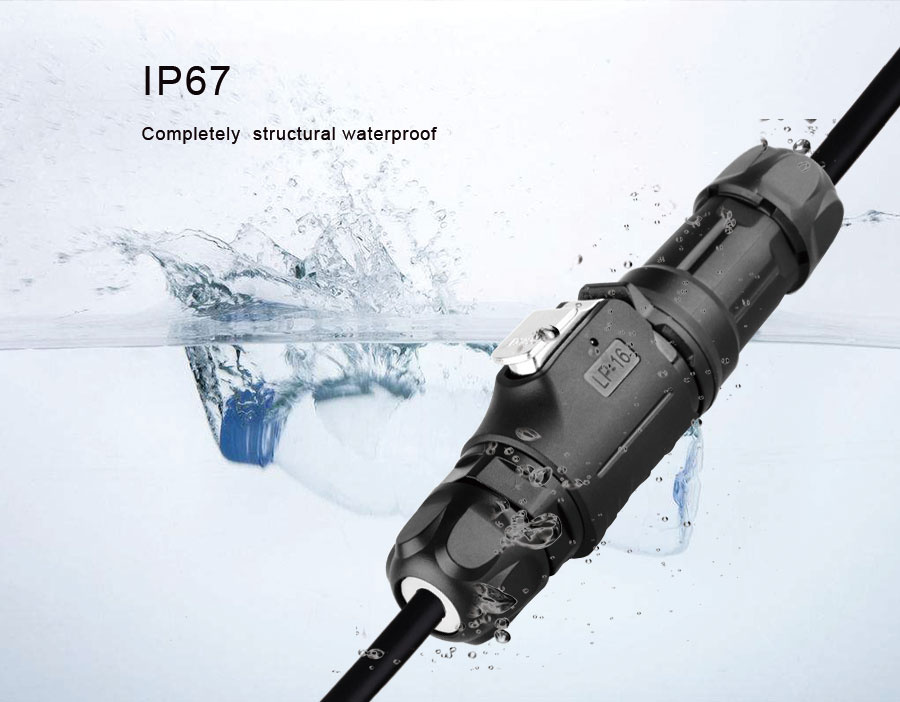

  Sealed against dust and fluid (IP65/IP67)
  Vibration resistance,impact resistance,stretching resistance
  1/4 bayonet connect; socket with cover
  Application industries
  Stage equipment - The smart grid
  Medical equipment - Server
  Solar energy equipment - Ship equipment
  Electric power equipment - Vehicle equipment
  Communications equipment - Heavy machinery
