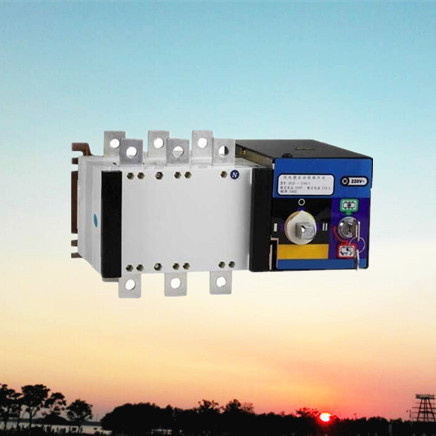

PC Class Double Power Change-Over Switch (GLD-250A/3P)

Name: PC Class Double Power Change-Over Switch (GLD-250A/3P)
Brand: all-electronics-online.com
SKU: 714848532
Availability: InStock
Rating: 4.8 (132 reviews)

Price:	US $ 78-120/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	GLD-250A/3P
Control Loop:	Using Insert Terminal Connection,Easy to Install.
Material:	DMC Shell, Red Copper Contact
Place Of Application:	Generator,Solar Panel,Wind Power Generation Sys
Class:	PC
OEM Or ODM:	Accepted

Product Description

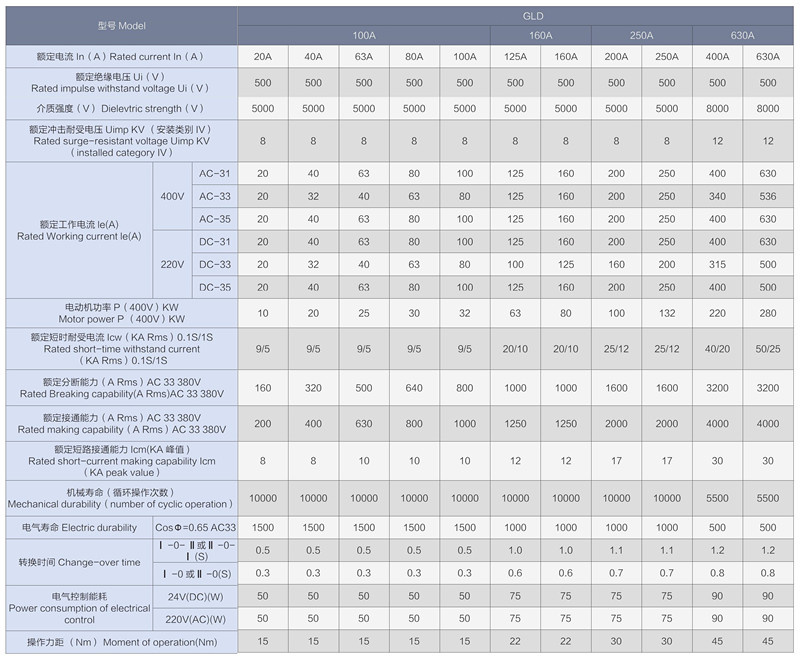

Rated Current: 16A~3200A
MGLD series  Automatic Changeover Switch is applicable for the three-phase four-wire power supply system of AC 50Hz, rated voltage AC 660V and below, DC 440V and below, rated current up to 3200A.
It can realize automatic and manual changeover between normal and backup power supply power, and stop power supplying too load when changeover process of power supply is carried out.
The switch is applicable for two circuits power supply and in the condition which requires high quality power supply
This product is in confirmity with standary GB14048.3 GB14048.11(GB14048.11) IEC60947-1,IEC60947-3,IEC60947-6

The solution for ATS
Main switchboard.
Distribution panel.
Emergency breaking.
Network coupling.
Local safety breaking.
Strong points of ATS
Reliability and performance.
Safety of property and personnel.
Simplicity.
Easy to install.

Enclosures of ATS
Can be easily fitted in enclosures and cabinets designed for electrical distribution.
