PC Plastic MTRJ Fiber Optical Connector

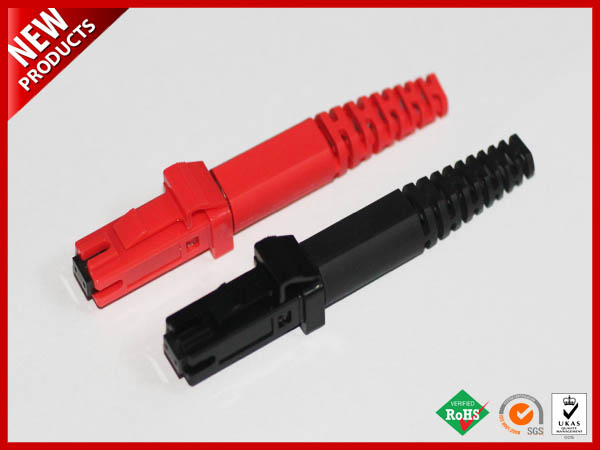

Name: PC Plastic MTRJ Fiber Optical Connector
Brand: all-electronics-online.com
SKU: 691514991
Availability: InStock
Rating: 4.5 (74 reviews)

Price:	US $ 1-5/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	0965
Transmission Medium:	Single-Mode
Structure:	MT-RJ
Number Of Cores:	Single-Core
Ferrule Endface:	APC
Light Source TYPE:	Fiber
Connector Type:	MTRJ

Product Description

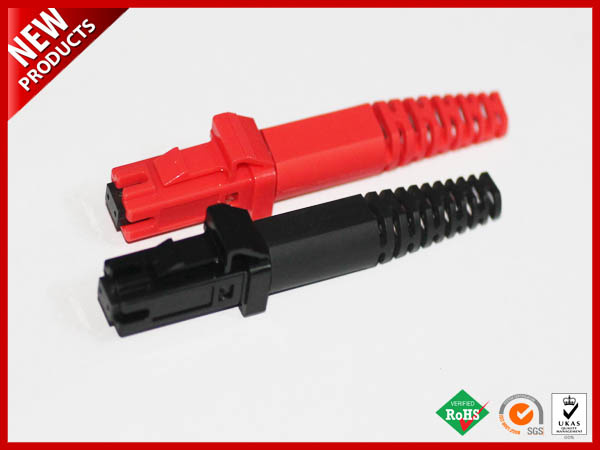

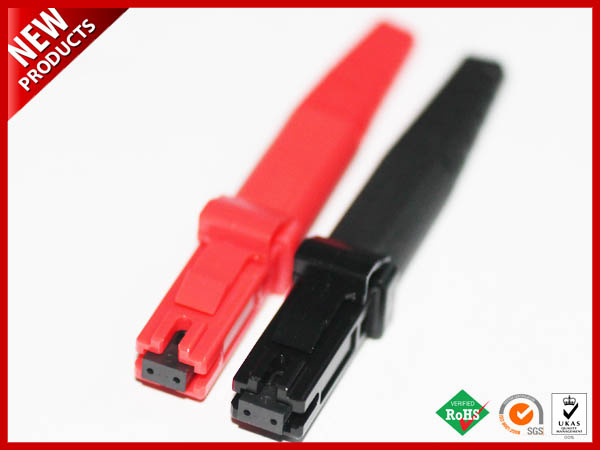

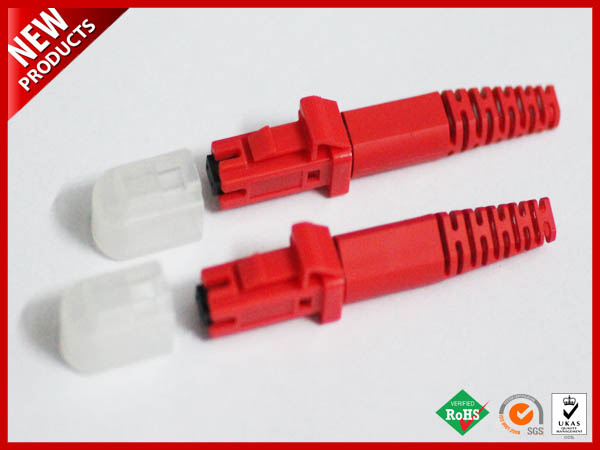

PC Plastic MTRJ Fiber Optical Connector

The fiber optic patch cords are mainly used on patch panel or for the connection between outlets and terminal equipment. The quality of connectors and fibers are mainly determined by the insertion loss and return loss. PUNO provide duplex D4-D4 Single-mode Duplex Fiber Optic Patch Cord, these patch cords are with 9/125 single mode fiber, and connector types in PC, UPC or APC polish are available. It's fully complied with IEC and Telcordia GR-326 standards; they are good prices, fast delivery and good looking and packing.

Applications

√ High bit rate data transmission;
√ Telecommunication networks;
√ Data processing networks;
√ Metro applications;
√ Testing instruments;
√ Military, medical and industrial;
√ Active device termination;
√ CATV system;
√ Active device terminations;
√ LAN / WAN;
√ FTTx (including FTTB, FTTC, FTTD, FTTH).

Keyed Characteristic

√ High Return Loss & Low Insertion Loss;
√ High reliability and stability;
√ Telcordia's GR-326-Core, IEC Standard;
√ Green Production, CE, RoHS Standard;
√ Excellent Polished and 100% tested;
√ High stability various environments;
√ Customize order is available.

Specification & Parameters

Fiber Type		SM		MM
Connector Tytpe		MTRJ	D4, FC, SC, ST, LC, E-2000, MU	D4, FC, SC, ST, LC, E-2000, MU	MTRJ
Insertion Loss (Typical)		≤0.4dB	≤0.2dB	≤0.4dB	≤0.2dB
Insertion Loss (Max)		≤0.5dB	≤0. 3dB	≤0.3dB	≤0.5dB
Return Loss (Typical)	PC		≥50dB
	APC		≥65dB
	UPC		≥55dB	≥55dB
Mating Durability	≤0.2dB
Durability	≥1000 times
Storage Temperature	- 40ºC~+ 85ºC

Dimensions

Cable Diameter	3.0mm
Jacket Color	Yellow
Connector 1	D4
Connector 2	D4
Polishing Type	APC
Fiber Type	G657A1, SM, Single-mode
Cable Length	1m / 10ft; or customized
Total Fibers, quantity	2

Environmental Specifications

Environmental Space	Plenum
Operating Temperature	-10 °C to +60 °C (+14 °F to +140 °F)

Ordering Guide

Part No.	Description	Length (m)
PC-D4SD-001	D4 - D4 SM Duplex Fiber Optic Patch Cord Plenum Cable	1
PC-D4SD-002	D4 - D4 SM Duplex Fiber Optic Patch Cord Plenum Cable	2
PC-D4SD-003	D4 - D4 SM Duplex Fiber Optic Patch Cord Plenum Cable	3
