| Prod Model: |
Fiber Optic Patch Cord |
| Repetition Test: |
Additional Loss≤0.1dB |
| Operating Temperature: |
-40ºC~+75ºC |
| Torage Temperature: |
-40ºC~+75ºC |
| Insertion Loss: |
≤0.15dB |
| Return Loss: |
≥65dB |
| Wavelength: |
850/1310/1550nm |
| Connector: |
FC, Sc, St, LC, Mu, MTRJ, DIN, MPO |
| Material: |
PVC, LSZH, Ofnp, Ofnr, etc. |
| Fiber Type: |
G657A/G652D |
| Payment: |
L/C, T/T, D/P, Paypal, Money Gram, etc. |
| Application: |
Communication |
| Type: |
Single-mode Fiber |
| Connection Structure: |
SC-SC |
| Certification: |
ISO9001 |
Product Description

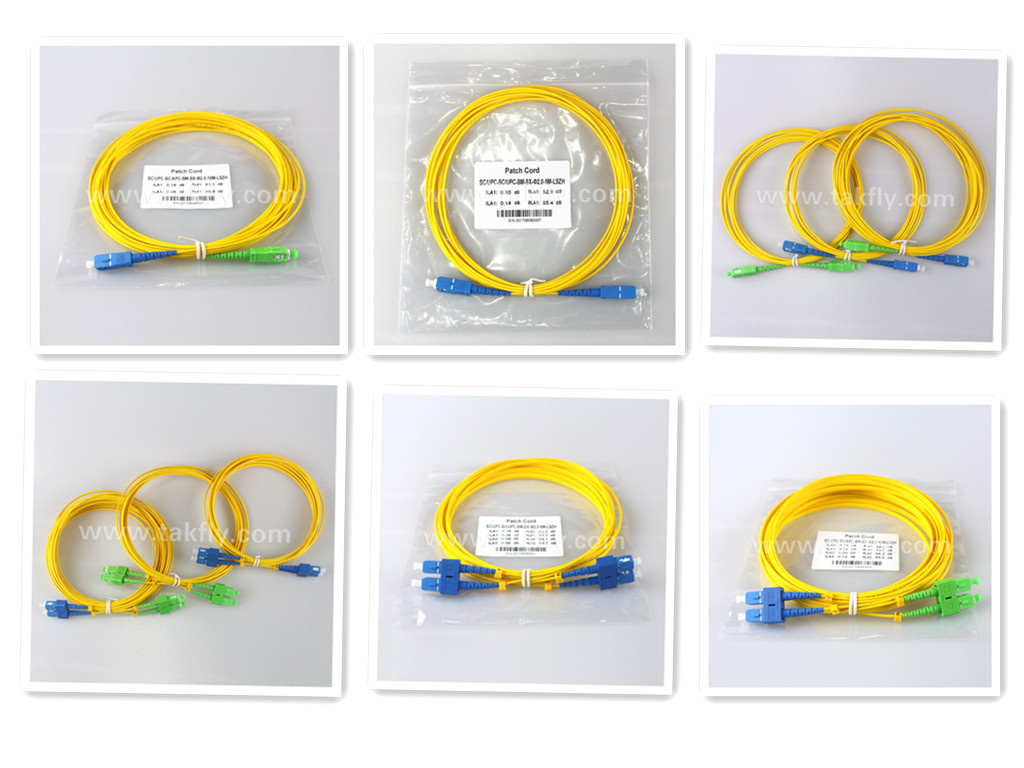

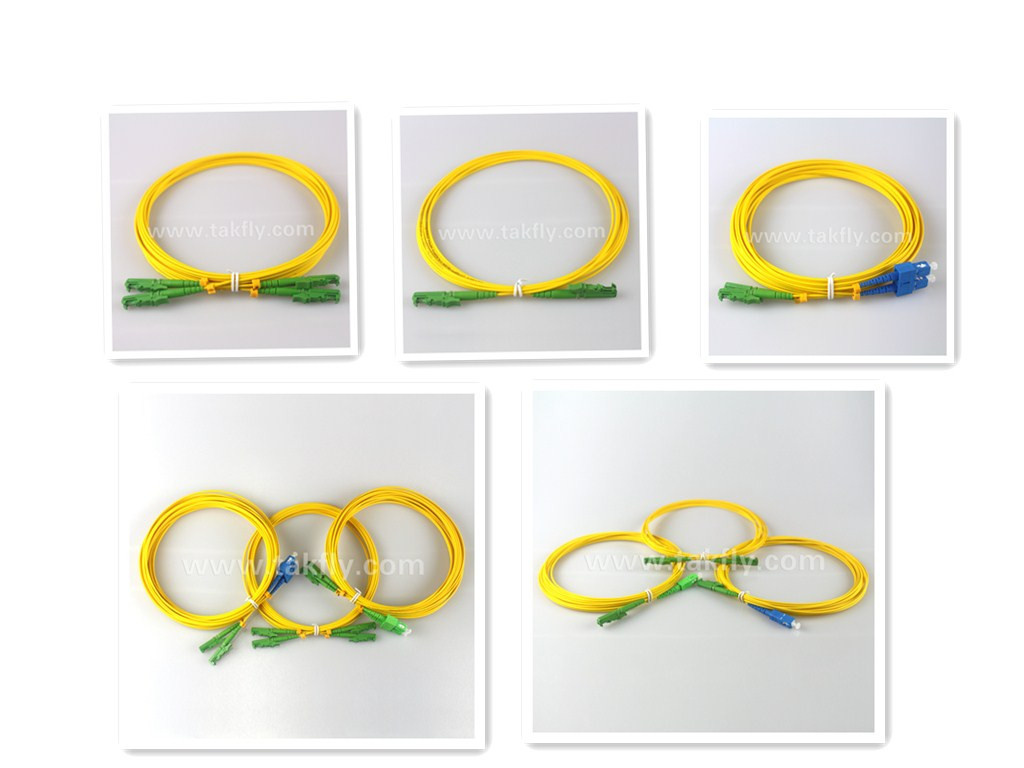

PC/UPC/APC SC/LC/FC/ST/MU/MTRJ/E2000 Simplex Duplex Singlemode Multimode Fiber Optic Patch CordProduct DescriptionWe offers a wide range of patch cords, designed and manufactured for demanding network applications. It comprises of multimode and singlemode. Both ends are terminated with a high performance hybrid or single type connector comprising of a SC, ST, FC, LC, MU, MTRJ, E2000, DIN connector in simplex and duplex.Comply with IEC and YD-T826/1996, NTT, YD/T826, YD/T895, YD/T896, RoHS Standard.
Connector type standard: IEC61574 series
Low Insertion Loss : IEC 61300-3-4, IL≤0.20dBHigh
Return Loss: IEC61300-3-6; RL≥60dB
Flammability:IEC60332-1Repeat Plug feature is good, good interchangeability Ceramic Ferrule, high-density docking, concentricity ≤0.5Can provide general PVC or LSZH cable.
Features. 100% tested on optical performance (Insertion Loss Customer specified length & Return Loss). Standard colour is Yellow, Orange, Aqua or Purple, other colours available upon request. Cable outer jacket available in PVC, Low Smoke Zero Halogen (LSZH). PC, UPC, APC connectors type available. High concentricity 2.5mm ceramic ferrule for FC, ST, SC and 1.25mm ceramic ferrule for LC and MU. Available in G652D, G657A, OM1, OM2, OM3 and OM4. Position A/Position B markings. Available in 0.9mm, 1.6mm, 2.0mm, 3.0mm sizesMechanical, Environmental & Material Data | Range of Mode | Singlemode or Multimode |
| Cable Type | Simplex or Duplex Zipcord |

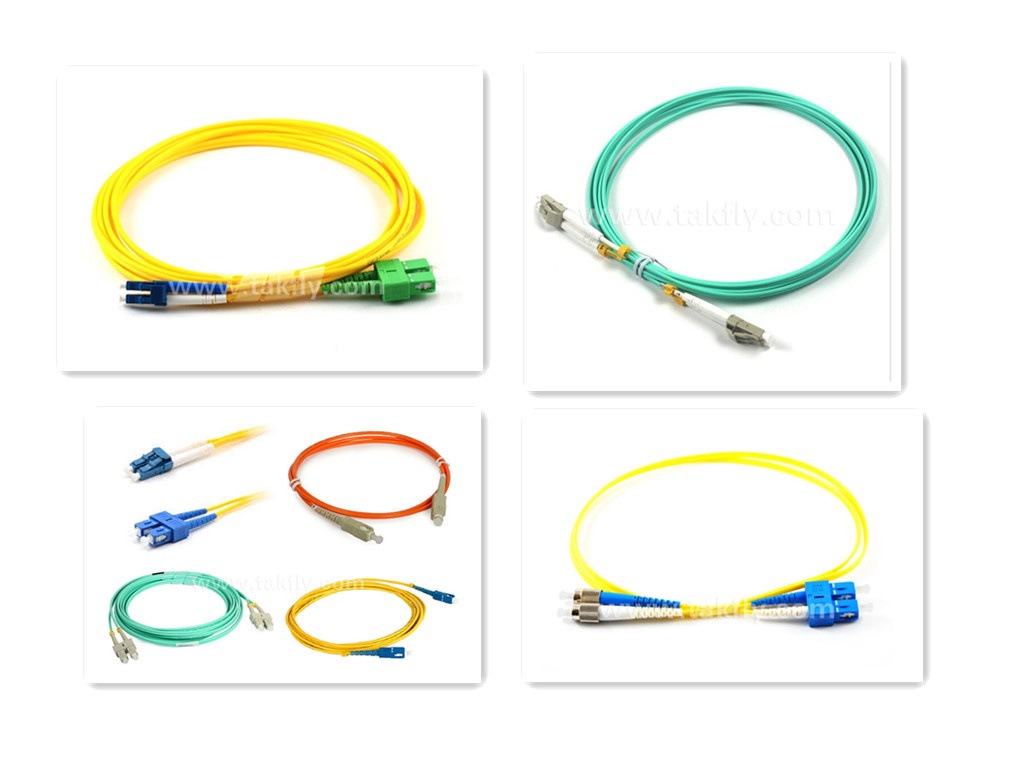

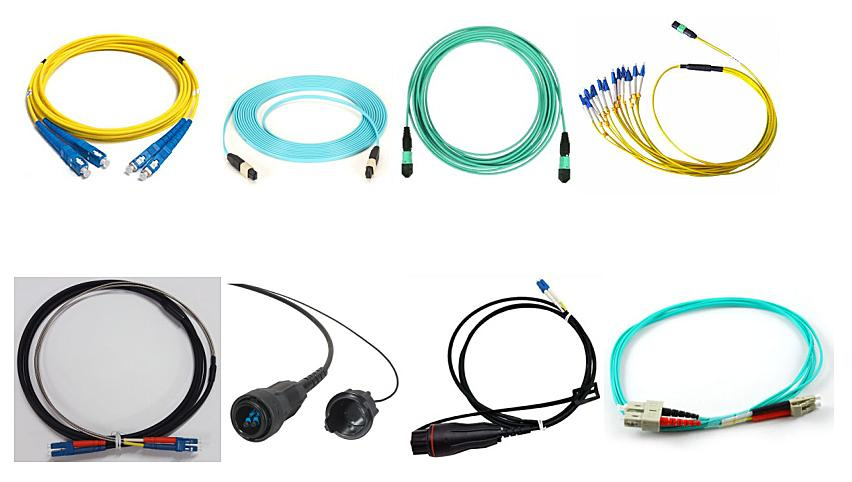

| Connector Style | SC, FC, ST, LC, MU, MTRJ, E2000, DIN |
| Polish or Ferrule Interface Type | PC, UPC, APC |
| Cable Diameter | 0.9mm, 1.6mm, 1.8mm, 2.0mm, 3.0mm |
| Lengths | Standard & Custom Lengths |
| Strength Member | Aramid Yarn |
| Outer Jacket | PVC or LSZH |
| Cable Assembly Length (<15 meter Tolerance) | -0/+100mm |
| Cable Assembly Length (>15 meter Tolerance) | -0/+10% |
| Jacket Color (Multimode: OM1 & OM2) | Orange |
| Jacket Color (Multimode: OM3) | Aqua |
| Jacket Color (Multimode: OM4) | Aqua or Purple |
| Jacket Color (Single Mode: G652D & Gb57A) | Yellow |
| Durability | 500 cycles(0.2 dB max increase),
1000 mate/demate cycles |
| Operating Temp. | -20 C to +70C/+85C (armoured) |
| Storage Temp. | -40 C to +85C |
| Ferrule Concentricity | < 1μm, Other Ferrule Concentricity < 1μm |
| Humidity (FOTP-5) | 90-95% at 40°C |
| Strength of Coupling Mechanism (FOTP-185) | 33 N at 0° for 5 sec |
| Cable Retention (FOTP-6) | 50 N at 0° for 5 sec. |
| Twist (FOTP-36) | 15 N at 0° 5 turns, 10 cycles |
| Flex (FOTP-1) | 0.5 Kg at 25 cm, +90° to -90°, 100 cycles |
Optical Characteristics| Fiber Type | Max. Attenuation(dB/km) | Min.Overfill Launch
Bandwidth (Mhz.km) | Min.Gigabit Ethernet
Link Distance (m) |
| Gigabit | 10Gigabit |
| 850nm | 1300nm | 1310nm | 1550nm | 850nm | 1300nm | 850nm | 1300nm | 850nnm |
| OM1 62.5/125µm | ≤2.7 | ≤0.6 | - | - | ≥500 | ≥600 | 275 | 550 | - |
| OM2 50/125µm | ≤2.3 | ≤0.6 | - | - | ≥500 | ≥500 | 750 | 600 | 150 |
| OM3 50/125µm | ≤2.3 | ≤0.6 | - | - | ≥1500 | ≥500 | 1000 | 600 | 300 |
| OM4 50/125µm | ≤2.3 | ≤0.6 | - | - | ≥3500 | ≥500 | 1100 | 600 | 550 |
| G652D 9/125µm | - | - | ≤0.30 | ≤0.18 | - | - | - | - | - |
| G657A 9/125µm | - | - | ≤0.35 | ≤0.21 | - | - | - | - | - |
Optical Performance Data| Item | Single mode | Multimode |
| PC | UPC | APC | 62.5/125 | 50/125 | 50/125 10G |
Insert Loss/connector
(single Fiber) | 0.2dB Max. (0.15dB typ.) | 0.3dB Max. (0.25dB typ.) |
| Return Loss | ≥45 dB | ≥50 dB | ≥60 dB | N.A |
| Insert Loss/MTRJ Connector | 0.5dB Max. (0.45dB typ.) | 0.5dB Max. (0.45dB typ.) |
| Pull Strength | ≥98N | ≥98N |
