| Prod Model: |
pcba |
| Key Words: |
Prototype Electronics Multilayer PCB Boards |
| MOQ: |
1PCS |
| Shipping: |
DHL,EMS,... |
| Service: |
Testing Service |
| Solder Color: |
as Your Request |
| Certificate: |
ISO |
| Other Service: |
PCB Assembly China Manufacture in Shenzhen |
| Engineering Service: |
Yes |
| Backing Repair: |
Yes |
| Basic Material: |
Fr-4 |
| Metal Coating: |
Copper |
| Mode Of Production: |
SMT |
| Layers: |
Double-Layer |
| Base Material: |
FR-4 |
| Certification: |
ISO |
| Customized: |
Customized |
| Condition: |
New |
Product Description
Welcome To Rigao Electronics
pcb board and pcb assembly from Shenzhen Rigao
ShenZhen Rigao Electronics Co., Ltd has been taking the corporate philosophy of "Be superior in
quality and efficiency, be united and conscientious, be responsible, be diligent", always adhering to
the brand sstrategy of "Foster brand, create brand, and promote brand through brand" and the
corporate spirit of "Quality, Brand, Profession, and Dedication", taking steps toward conceptual
innovation, technological innovation and management innovation to constrantly meet the
requiremtns of the repid development of PCBs and PCBA.
1.PCB&PCBA Service
2.UL,SGS,Rohs Certificated
3.OEM PCBA are welcome
4.Quick turn pcb and pcb assembly
5.PCBA Leadtime:15 days

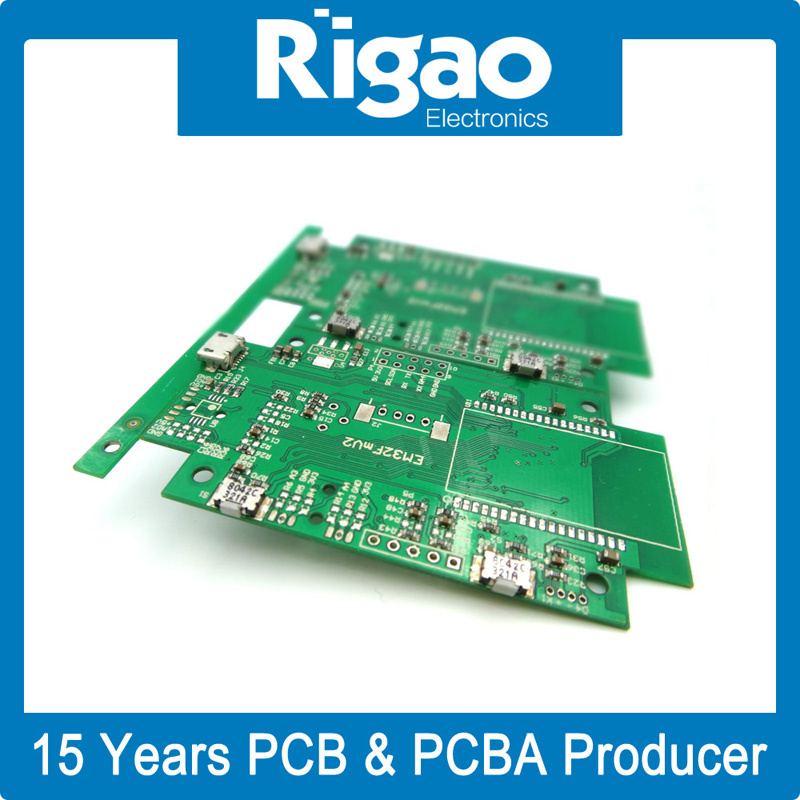

pcb assembly china manufacture in Shenzhen
PCB Assembly Specification
| Item | Capability |
| Min Annular Ring | 0.076mm(3mil) |
| Min Finish Hoke Size | 0.2mm |
| Min Solder Mask Tolerance | ±0.076mm(3mil) |
| Punching Outline Tolerance | ±0.10mm |
| Min Hole Size | 0.2mm(8mil)-Mechanical drill |
| | 0.075mm(3mil)-Laser drill |
| Min Trace/Space | 0.1mm(4mil) |
| Board Thickness | 0.2-6.4mm |
| Flame Rating | 94v-0 |
| Peel Strength | ≥12.3n/cm |
| Layer | 2-58L |
| Working Panel Size | 1150mm* 560mm |
| Quality Standards | IPC-A-600G,IPC-TM-650,IPC-6012B |
| Lamination Evenness | ±0.013mm |
| Min Core Thickness | 0.076mm |
| Drilling Accuracy | ±0.05mm |
| PTH Hole Diameter Tolerance | ±0.05mm |
| Aspect Ratio | 18:01:00 |
| Layer to Layer Registration | ≤0.076mm |
| Surface Finishing | HASL,Imersion Gold,OSP...... |
Other products
Packaging Details:
Anti-static,
vacuum packing,
corrugated export carton,
bubble
Delivery Detail: two weeks after we receive customers' payment
FAQ
1. What kind of payments do you accept ?
A. T/T, Western Union, Paypal,...
2. What kind of PCB file format I need to submit for the production?
A. Gerber files and BOM
3.Can you produce it for me,if we dont have the PCB file/Gbr file, only a sample?
A. Send us the sample, and we will work out the gerber files and clone the pcb for you.
4.Which countries have you worked with?.
A: We have built cooperation with customers from all over the world, mostly America and Europe
5.Are my PCB files safe when I submit them to you for manufacturing?
A:We respect customer's copyright and will never share these files with any other 3rd parties without your permission.
Shenzhen Rigao Electronics Co., Ltd. is a newly company which founded in 2008. At beginning we were only focus on manufacturing Printed Circuit Boards. But now we has become a rapidly growing worldwide provider of solutions in three principal areas Printed Circuit Boards, PCB Assembly and Components Procurement. We are dedicated to building solid partnerships and providing flexible solutions to enable our customer's success.
As an experienced PCB and PCBA manufacturer, we provide prototypes, small volume, medium volume, and high volume projects. We are able to guarantee a complete service with comprehensive technical backup, offering acost advantage and scheduled delivery.
Our main services include offering
Rigid PCB (up to 64 Layers)
Flexible PCB/FPC (1~6 Layers)
Rigid-Flex (3~18 Layers)
Aluminum-based PCB (1~6 Layers)
High Density Interconnection/HDI PCB
High frequency material PCB
DIP, COB, SMT assembly Services
Components Sourcing
We have since successfully completed over 5, 500 projects and have nearly 300 satisfied repeat customers. Our customers are from over 30 countries in various industries, including computer, home appliances, consumer products, telecom, scientific research institutes, etc.
Our manufacturing and quality control processes are ISO 9001: 2000 certified and conform to IPC-A600(PCB) and IPC-A610 (PCB Assembly) standards. All our PCB/PCBA are UL certified and RoHS compliant.
Our Principle is simple, "Act by heart, Make the best. "
Our strength is distinct, "Years of experiences in PCB and PCBA field"
Our Goal is achievable, "To be the most reliable supplier of PCB and PCBA. "
Our orientation is clear, "Focus on prototypes and low to medium volume business "
Your trust and support would be a solid back-up for our business. We sincerely hope to provide you with high-quality products and satisfactory services.
We are look forward to working with you!
