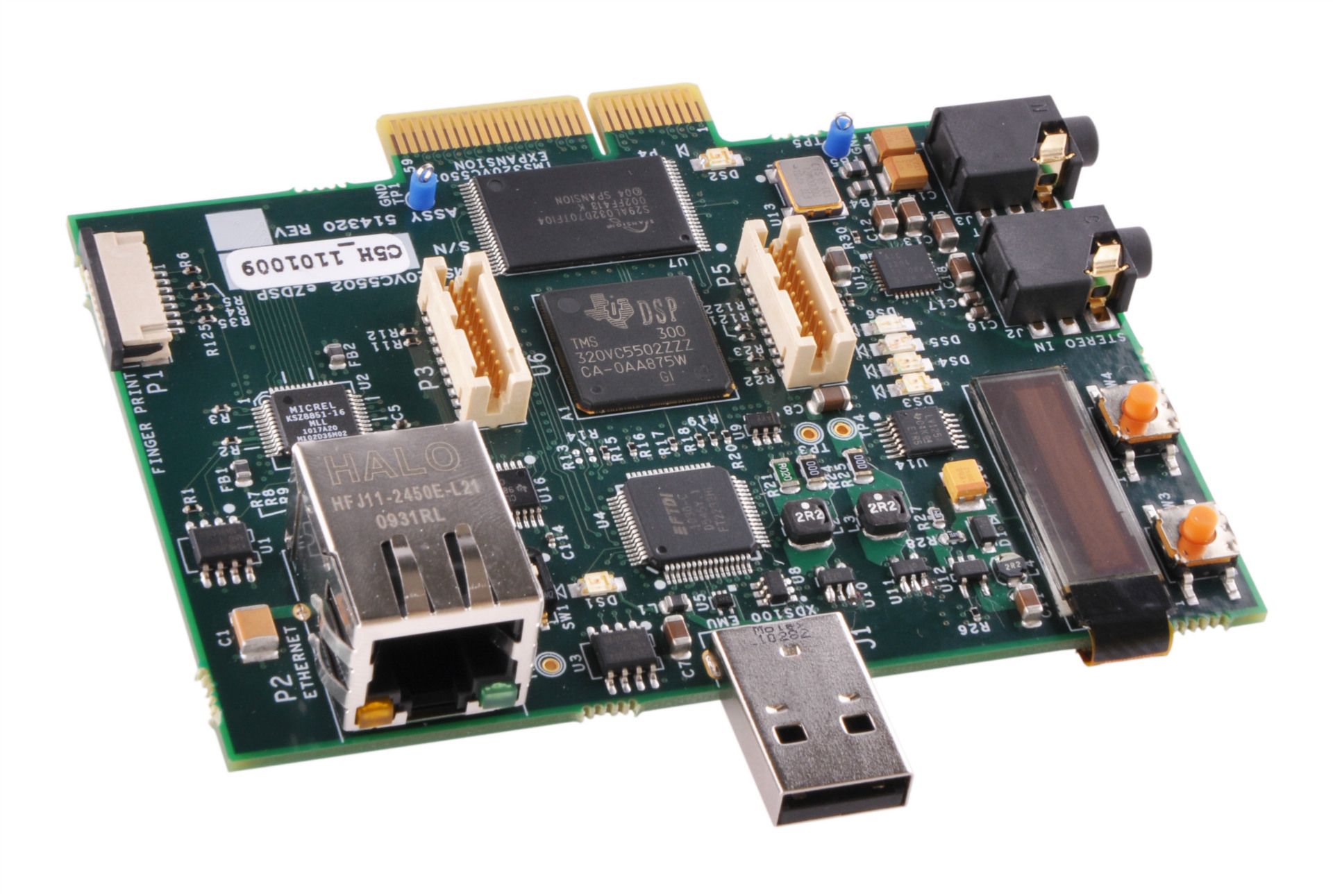

PCB Assembly for Industrial Control

Name: PCB Assembly for Industrial Control
Brand: all-electronics-online.com
SKU: 818578235
Availability: InStock
Rating: 4.7 (82 reviews)

Price:	US $ 0.08-0.4/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Size:	158mm*128mm
Min. Hole Size:	0.2mm
Min Line Width And Distance:	3mil/3mi
Soldermask:	Green
Silkscreen:	White
Dielectric:	FR-4
Material:	Fiberglass Epoxy
Flame Retardant Properties:	V0
Type:	PCB Assembly
Brand:	Xzg

Product Description

1. Normal Specification:

Layer:1~16layer
Material:FR4
value:tg135
board thickness:1.6mm
copper thickness:1oz
Surface treatment:HASL or OSP

2. Our main process capability:

Items	Standard	Advanced
Layer Count	1-20	1-24
Board Thickness	0.2-5.0mm	0.2-7.0mm
Max. Panel Size	520X660mm	680X1200mm
Min. Mechnical Drill	0.2mm	0.15mm
Min. Line width&space	0.1/0.1mm	0.076/0.076mm
Max. Copper Thickness	6 oz	8oz
Max. Aspect Ratio	8:1	10:1
Solder Mask Color	Green,Black,White,Blue,Red,Matt Green, Matt Black
Silkscreen Color	White,Black,Yellow,Grey,Orange
Base Material	CEM1,CEM3,FR4,IMS,aluminum
Surface Treatment	HASL(Lead Free),OSP,ENIG, ENEPIG,Immersion Silver,Immersion Tin, Hard Gold Plating,Tin Plating, Silver Plating

3. Our Lead time:

layers	1~2layers	4layers	6layers	8layers
sample	3~4 days	5 days	6 days	7 days
Volume production	7~9 days	11 days	14 days	15 days

4. We offer:
    PTH PCB,
    Aluminum PCB,
    buried/blind via PCB,
    high frequency PCB,
    Heavy copper PCB-max 8oz
    One stop PCBA service

5. Why us:
     UL (E246887), ISO9001/14001,ISO/TS16949certified.
     Staff of 1000+.
     13+years experience,annual turnover USD 80Million.
     Full-process workshop--more guaranteed quality and lead time
     All exported PCB have double-check before sending out.
     One-stop EMS service,pcb assembly and SMT are available.

6.FAQ:

Q1:Are you a manufacturer or trading company?
A:XZG is a PCB manufacturer, specialized in PCB for over ten years.

Q2:What kind of PCB file you need before production?
A:Gerber, or files like PROTEL 99SE, PROTEL DXP, POWER PCB, CAM350.etc.
b. Dimensional Specifications
c. BOM List (only for PCBA)

Q3: How long will you send us quotation ?
A: After all files were sent, 2 to 8 hours as per your file.

Q4:No PCB file/Gbr file, only have the PCB sample,can you produce it for me?
A: Yes, we could help you to clone the PCB. Just send the sample PCB to us, we could clone the PCB design and work out the PCB/PCBA

Q5: How to find you?
A: Please click the button "send" at the end of each page, or contact our sales on Trade Manage online!

Xingzhiguang Technology, established in 2002, with factory area of 25, 000 sqm, total staff about 1200 and overall investment nearly USD 50 million, is a professional PCB manufacturer with factory located in Huizhou.

Through more than 10-year experience in PCB production, Xingzhiguang Technology is supporting an annual capacity of more than 900, 000 sqm, among which 30% is 1~2 layer and 70% is multi-layer, with the maximum layer count up to 20 layers; We can process many different kinds of laminates, such as FR4, high-Tg FR4, metal-based laminate (includes aluminum-based), Isola, Rogers and so on. In addition, we have started producing PCBA (PCB assembly) and FPCB (flexible PCB) as well since the end of 2014. We have passed a lot of authorized certification, including but not limited to UL(E246887), ISO9001: 2008, ISO/TS16949 and ISO 14001: 2004, and this ensures us to be capable to provide high-quality products to meet different customers' requirements.

Our products are widely used in fields of telecommunication, power supply, security surveillance, automotive, industry control, LED lighting & etc

Finally, as our commitment to the environment protection, we have also invested about USD 600, 000 in water-recycling system construction. This is the best witness to certify that xingzhiguang technology is a responsible enterprise.
