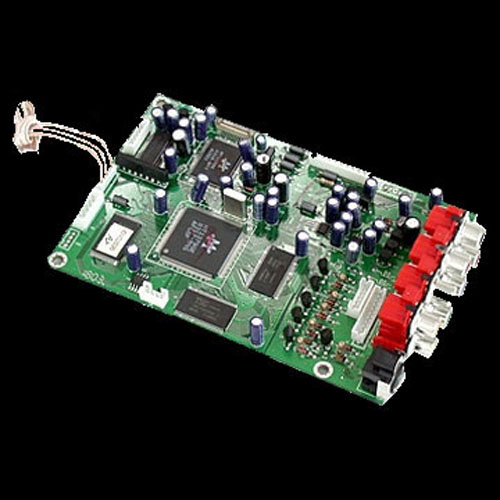

Name: PCB Assembly (PCBA3)
Brand: all-electronics-online.com
SKU: 610567034
Availability: InStock
Rating: 4.7 (144 reviews)

Price:	Negotiable/Square Meter
Min Order:	5/Square Meter
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	PCBA3
Metal Coating:	Gold
Mode Of Production:	SMT
Layers:	Double-Layer
Base Material:	FR-4
Certification:	SGS
Customized:	Customized

Product Description

The following information is requested for this service:
Gerber files of the bare PCB
Bill of materials to include: Manufacturer's part number, type of part, type of packaging, component locations listed by reference designators and quantity
Dimensional specifications for non-standard components
Assembly drawing, including any change notices
Final test procedures (if available)
In order to shorten the lead time, please advise us acceptable components for substitution (same specifications but different brand name) estimated order quantity
If possible, please send prototype/sample board to us for further reference (use FedEx/DHL to expedite the process)

		Capabilities
Number of Layers		From 4-layer to 22- Layer
Material		FR-4,HighTg, Rogers Halogen Free
PCB Thickness	Min.thickness	0.4mm(16mil)
	Max.thickness	3.2mm(128mil)
Surface finished		Gold Plating
		Immersion Gold(Silver)
		HAL Lead Free
		Hot Air Solder Leveling(HASL)
		Entek Coating (OSP)
Solder Mask		Green,White,Black,Yellow,Red,Blue
Other printing		Gold Finger
		Carbon Print, Peelable Mask
		Solder Mask Plugged Hole
Copper thickness		1/ 2 oz (18 μm) - 4 oz (140 μm)
Min. Finished Hole Size		0.2mm(8mil)
Hole Size Tolerance (PTH)		+/ -0.076mm (3 mil)
Hole Size Tolerance (NPTH)		+/-0.05mm (2 mil)
Min. Line Width and Spacing		0.1mm (4 mil)
Min. Solder Mask Clearance		0.05mm (2 mil)
Min. Annular Ring		0.076mm (3mil)
Profile and V-Cut		CNC-Routing, Stamping and Beveling,V-CUT,CNC
Special Process		Micro-section, Chamfer for Gold Finger
File format		Gerber file , CAM350 ,Protel,PowerPCB
E-TEST		Flying Prob , E-test ,Fixture
Other Test		Impedance , Slice up
Warp & Twist		≤0.7%
