PCB Connector 5.08mm Terminal Blocks

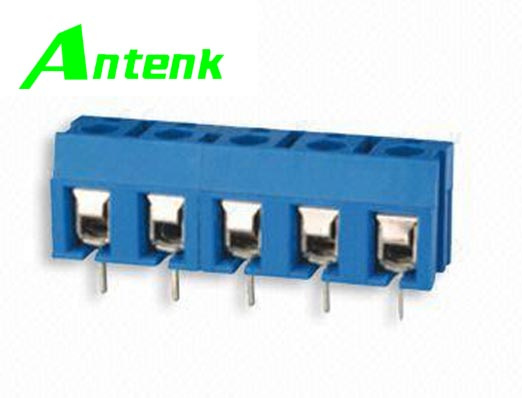

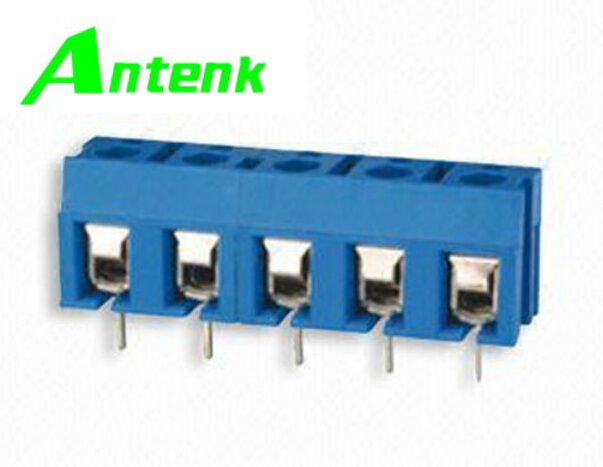

Name: PCB Connector 5.08mm Terminal Blocks
Brand: all-electronics-online.com
SKU: 609257124
Availability: InStock
Rating: 4.5 (94 reviews)

Price:	US $ 0.1-0.4/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	1000/Piece
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	PCB Terminal Block, pitch 5.00 and 7.50mm
Markets:	North America,South America,Eastern Europe,Southeast Asia,Oceania,Mid East,Eastern Asia,Western Europe
Rated Voltage:	300V
Rated Current:	10A
Screw:	M2.5, Steel and Zinc-Plated
Pin Header:	Brass and Tin-Plated
Application:	PCB
Environmental Protection:	General
Shape:	Rectangle
Contact Termination Form:	Welding Connection
Brand:	Antenk

Product Description

Terminal Block with Phosphorous Bonze Wire Guard and +250º C Maximum Soldering Temperature

Materials:
Screw: M2.5, steel and zinc-plated
Wire guard: Phosphorous bronze and Ni-plated or stainless steel
Pin header: Brass and tin-plated
Housing: PBT and UL94V-0
Rated voltage: 300V
Rated current: 10A
Contact resistance: 20MΩ
Insulation resistance: 5, 000MΩ /1, 000V
Withstand voltage: 1, 500V AC/1 minute
Wire range: 24 to 18AWG, 2.5mm2
Torque: 0.5Nm
Strip length: 4.5 to 5mm
Maximum soldering temperature: +250º C
Temperature: -30 to +120º C
