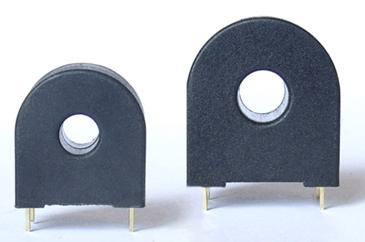

PCB Current Transformer

Name: PCB Current Transformer
Brand: all-electronics-online.com
SKU: 700395955
Availability: InStock
Rating: 4.8 (121 reviews)

Price:	Negotiable/Piece
Trade Terms:	others
Min Order:	500/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	5A/2.5mA
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Phase:	Single
Type:	Current Transformer

Product Description

Feature:
1. Epoxy resin wrapped package, high dielectric strength
2. Core is ferrite, silicon steel or permalloy, reliable performance
Working environment
3. Ambient temperature: -25~+85celsius;
4. Relative Humidity: When the temperature is 40celsius not more than 90%
5. Atmospheric pressure: 860~1060mbar
Dielectric strength: 2500V/min.
Frequency: 20Hz-20kHz
Accuracy: For IEC 60044-1 0.1, 0.2, 0.5%

model	input (A)	output(mA))	resistance (Ω )	Linear range	accuracy (%)	size(mm)
model	input (A)	output(mA))	resistance (Ω )	Linear range	accuracy (%)	A	B	C	D	E	F
WCT 202\ CC	10	5	10	2	± 0.1 ± 0.2	18	19.2	9.8	5.1	12	--
WCT 102\ CA	10	10	10	3		18.9	20	10.1	5.4	15.2	6.4
WCT 172\ CA	5	3	83	4
WCT 202\ CA	5	2.5	20	5
WCT 401\ CA	1	2.5	10	2
WCT 252\ CA	5	2	30	6
WCT 202\ CB	10	5	51	4		23.4	25	11.5	7.2	18	8
WCT 252\ CB	5	2	100	6
WCT 202\ CB	5	2.5	40	8
WCT 252\ CE	5	2	50	12		31	31	18	8.4	24	13

Welcome to JIANGYIN SPARK

Jiangyin Spark Electronic Technology Co., Ltd. is a professional manufacturer in China devoted in research, design, and production of electromagnetic products. We commonly provide split core current transformer sensor, mini current transformer, and mini voltage transformer, but also develop and design all kinds of energy saving modules and instruments. The well trained production and QC staff can assure all the current transformers perfect performance.

Since the company is founded in 1995, we have registered many Invention and practical Utility Model patents. We have passed the ISO9001: 2008 quality management certification system and UL and CE certification. In 2010, our company was awarded the second prize of Jiangsu Province Engineering Industry Improvement Award, and won the title of Wuxi City High and New Technology Enterprise. Located near the Port of Shanghai, the domestic logistics cost can be effectively saved.

For all of our products, samples are provided for free, but the purchaser has to endure the freight. The delivery cycle is generally 1 or 2 weeks depending on the product models. We can design products according to your requirements. OEM is also available.

In the principle of unity, efficiency, development, and mutual benefit, we are striving to provide you with better services.
