PCB for 2s Li-ion Li-Polymer LiFePO4 Battery Pack

Name: PCB for 2s Li-ion Li-Polymer LiFePO4 Battery Pack
Brand: all-electronics-online.com
SKU: 735008845
Availability: InStock
Rating: 4.3 (76 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,EXW
Min Order:	5/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	PCM-Li02S6-209(2S)
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Voltage:	4.2V/Cell
Current:	5A
Over Charge Detection Voltage:	4.1 V -4.6 Mv
Over Charge Detection Delay Time:	0.73s~1.35s
Over Charge Release Voltage:	4.1-4.2V
Over Discharge Detection Voltage:	2.22-2.38V
Over Discharge Detection Delay Time:	68~138ms
Over Discharge Release Voltage:	2.9V-3.1V
Over Current Detection Voltage:	125mv-175mv
Over Current Detection Current:	14~18A
Metal Coating:	Silver
Mode Of Production:	SMT
Customized:	Non-Customized
Condition:	New

Product Description

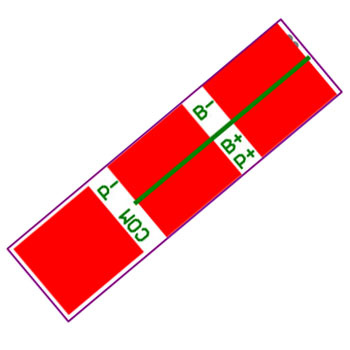

Protection Circuit Module For 2S Li-ion/Li-polymer/LiFePO4 Battery Pack

Maximal continuous charging and discharging current is 5A

No.	Test item		Criterion
1	Voltage:	Charging voltage:	DC:8.4V CC/CV ( 4.2V/cell )
1	Voltage:	Balance voltage for single cell
2	Current	Balance current for single cell
		Balance current for single cell	≤25μA
		Maximal continuous charging and discharging current	5A
3	Over-charge Protection	Over charge detection voltage	4.35 V ±25 mV
		Over charge detection delay time	0.73S~1.35S
		Over charge release voltage	4.15 V ±50 mV
4	Over-discharge Protection	Over discharge detection voltage	2.30 V ±80 mV
		Over discharge detection delay time	68~138mS
		Over discharge release voltage	3.00 V ±100 mV
5	Over-Current Protection	Over current detection voltage	0.300 V ±20 mV
		Over current detection current	16±2A
		Detection delay time	6.7ms~13.9ms
		Release condition	Cut load
6	Short Protection	Detection condition	Exterior short circuit
		Detection delay time	200-500us
		Release condition	Cut load
7	Resistance	Protection circuitry ( B- to P- )	≤50mΩ
8	Temperature	Operating temperature range	-40 ~ +85
8	Temperature	Storage temperature range	-40 ~ +125
9	Size		L30W8T2.5mm

Packaging & Delivery
. Netural labels, Polybag, PVC, Color box, Customised package
. Netrual packing/Cartoon box with less than 10KGS
. Delivery Detail: Sample within 3 work days, 7~15 days for bulk order
