PCB Manufacturing 10s 36V BMS

Name: PCB Manufacturing 10s 36V BMS
Brand: all-electronics-online.com
SKU: 807247195
Availability: InStock
Rating: 4.6 (97 reviews)

Price:	US $ 12.8-13.5/Piece
Min Order:	200/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	PCM-L13S15-B36
Warranty:	One Year
Delivery Date:	15days
Metal Coating:	Copper
Mode Of Production:	SMT
Layers:	Double-Layer
Base Material:	FR-4
Customized:	Customized
Condition:	New

Product Description

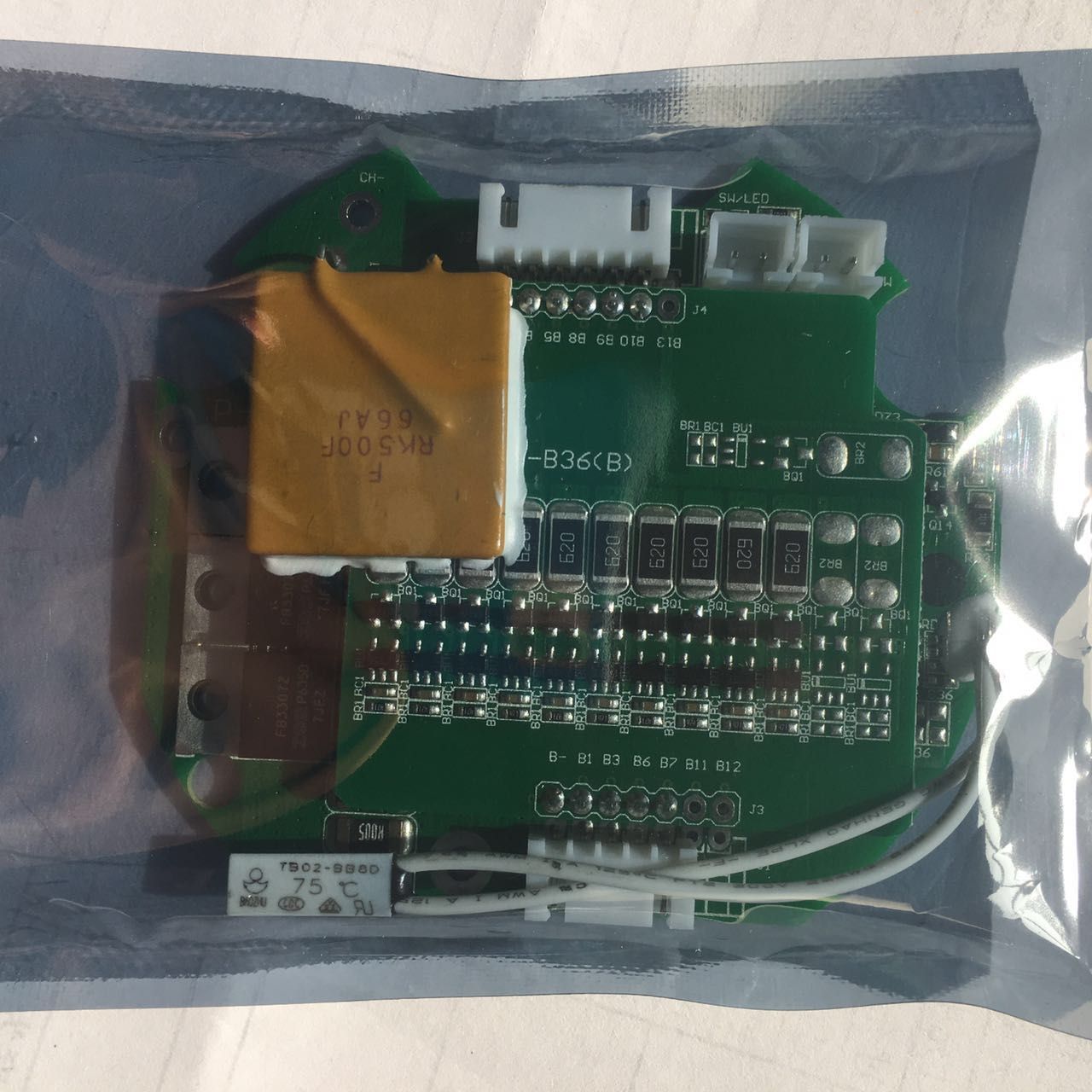

36V(10S) Li-ion Battery Packs Quick turn PCB/pcm/bms

Protection Circuit Module Specifications For 10S 36V/37V Li-ion/Li-PO Battery Pack
Model: PCM-L13S15-B36
No.	Test item		Criterion
1	Voltage	Charging voltage	DC:42V CC/CV(4.2V/1Cell)
		Balance voltage for single cell	4.20V±0.025V
		USB out
2	Current	Balance current for single cell	85mA±5mA
		Current consumption for single cell	≤20μA
		Maximal continuous charging current	7A
		Maximal continuous discharging current	20A
3	Over charge Protection	Over charge detection voltage	4.250 ± 0.025 V
		Over charge detection delay time	0.5S-2.0S
		Over charge release voltage	4.190 ± 0.050 V
4	Over discharge protection	Over discharge detection voltage	2.80 ± 0.050 V
		Over discharge detection delay time	100-250mS
		Over discharge release voltage	3.00 ± 0.050 V
5	Over current protection	Over current detection voltage	0.15 ± 0.015 V
		Over current detection current	50±5A
		Detection delay time	15ms-35ms
		Release condition	Cut load
6	Short protection	Detection condition	Exterior short circuit
		Detection delay time	100-600us
		Release condition	Cut load
7	Resistance	Protection circuitry(B- TO P-)	≤30mΩ
8	Temperature	Operating Temperature Range	-40~+85ºC
		Storage Temperature Range	-40~+125ºC
		Discharging Temperature protection	65±5ºC

We have over six hundreds of PCM/BMS series products for your choice,most of them widely used for Li-ion battery pack, Li-Polymer battery pack, LiFePO4 battery pack and so on.
Main components for our PCB/BMS normally adopt imported raw material for relaible quality control and zero RMA.

PCM for 1-5S Li-ion/Li-Polymer/LiFePO4 battery pack
PCM for 6-35S Li-ion/Li-Polymer/LiFePO4 battery pack(With balancing function can be added)
PCM for high rate/high power Battery Pack
PCM for E-bike/E-scooter/E-motorcle/E-tool etc battery pack
Battery fuel guage/Battery charging management system
All kinds of customized PCM/BMS OEM/ODM welcome

Quality is our priority, win by quality" which is the origin of the our company name --Quawin.

We always highly focus on Quality Assurance and completed After-Sales Service which based on competitive price. Our QA/QC Department performs strict quality control measures on all incoming main boards, spare parts and throughout our entire production process to ensure the high quality of each products. Pursuing the goal of 'No Defect on Quality, No Claim from Customers, ' we will continue to follow international standards to provide customers with satisfactory products.

As an eight years experience manufacture, we have built a powerful R&D team which has abundant knowledge and operational experience that can develop new products and improve existing models in order to meet growing market demands. This high efficient and energetic team is good at overcoming all kinds of obstacles.

We strive for 100% customer's satisfaction through continuous improvement and now our high quality products and thoughtful services have got good reputation from customers in the North America, South America, Europe, Asia and other countries and regions.

We currently rolls out thousands of products such as E-bike battery, golf car battery, UPS battery, BMS, solar battery, backup power battery and all kinds of matched chargers etc.

To keep ahead of the competition, you need a supplier who can keep up with your demands. Please contact us and let our excellent sales team to provide perfect service to you at once.
