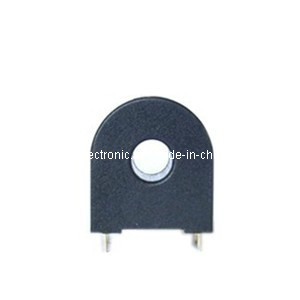

PCB Mini Current Sensor (Current Transformer)

Name: PCB Mini Current Sensor (Current Transformer)
Brand: all-electronics-online.com
SKU: 735722795
Availability: InStock
Rating: 4.9 (39 reviews)

Price:	US $ 0.8-3/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10/Piece
Pay Type:	Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	WCT
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Dimensions:	as Customers' Requirements
Color:	Blue or as Customers' Requirements
Size:	as Customers' Requirements
Weight:	as Customers' Requirements
Packaging Detail:	Bubble Sheet or as Customers' Requirements
Usage:	Welding Assistant Machine

Product Description

PCB Mini Current Transducer(Current Sensor)

Features
Low cost. Low profile for PCB mounting
High accuracy, wide linear range, low phase shift error
Burn-resistant case and filler

Specifications
Accuracy Class: 0.1
Dielectric strength: 2500V/min
Dielectric Resistance: 1000M Ohms @ 500 VDC
Working frequency 50-400Hz
Ambient temperature: -25degrees~+85degrees
RoHS Compliant
CE-approved
Customer specifications are available

Application
Electronic energy meter, power transducer, precision power meter and other power and energy monitoring devices
Over current protection circuit of motor and other electrical appliances.

Drawing size

Pls contact me for much more information by TradeMessenger

Please contact me for more information by Trademesseger

model	input (A)	output(mA))	resistance (Ω )	Linear range	accuracy (%)	size(mm)
model	input (A)	output(mA))	resistance (Ω )	Linear range	accuracy (%)	A	B	C	D	E	F
WCT 202\ CC	10	5	10	2	± 0.1 ± 0.2	18	19.2	9.8	5.1	12	--
WCT 102\ CA	10	10	10	3		18.9	20	10.1	5.4	15.2	6.4
WCT 172\ CA	5	3	83	4
WCT 202\ CA	5	2.5	20	5
WCT 401\ CA	1	2.5	10	2
WCT 252\ CA	5	2	30	6
WCT 202\ CB	10	5	51	4		23.4	25	11.5	7.2	18	8
WCT 252\ CB	5	2	100	6
WCT 202\ CB	5	2.5	40	8
WCT 252\ CE	5	2	50	12		31	31	18	8.4	24	13
