PCB Mount RF Connector SMA Female Connectors

Name: PCB Mount RF Connector SMA Female Connectors
Brand: all-electronics-online.com
SKU: 724299105
Availability: InStock
Rating: 4.5 (103 reviews)

Price:	US $ 0.3/Piece
Trade Terms:	FOB,EXW,others
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	RHT-612-0001
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
RF Connector:	SMA Connector
Impedance:	50ohm
Connector Plating:	Gold Plating
Orientation:	Right Angle/90 Degree
Connector Application:	for PCB
Small Order:	Yes
OEM:	Weclome
Factory Direct Sale:	Yes

Product Description

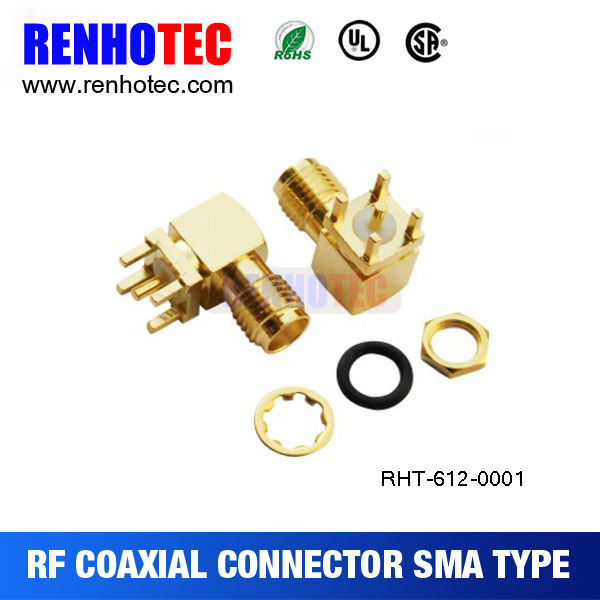

PCB Mount RF Connector SMA Female Connectors

Using a threaded interface, SMA 50 Ohm connectors are semi-precision units that provide excellent electrical performance from DC to 18 GHz and outstanding mechanical durability. SMA female gold connectors feature stainless steel or brass construction and ¼ - 36 threaded coupling, which offers high performance in a compact design.

Major Technical Characteristics
Temperature Range	-5 degree to +155 degree (PE cable -40 degree to +85 degree )
Vibration	100m/S² (10 to 2000 Hz), 10G
Impendance	50ohm
Frenquency Range	DC-12.4GHz( Semi-Rigled Cable DC-18GNz)
Working Voltage	335V r.m.s at sea level
Workstandinging Voltage	1000V r.m.s at sea level
Center Contact Resistance	≤3Mohm
Outer Contact Resistance	≤2.5Mohm
Insulation Resistance	≥5000Mohm
Center conductor Retention Force	≤0.28N
Coupling Nut Retention Force	≥180N
Insertion Loss	≤0.15dB/6GHz
VoltaggeStanding Wave Ratio :
Straight	≤1.10+0.02f
Right Angle	≤1.20+0.03f
Dutability (Mating)	≤500(cycles)
Materials
Body	Brass
Contact	Brass
Insulator	PTFE
Suitable cable
RG6, RG58, RG59, RG174, RG179, RG316. (More Option, please contact US)

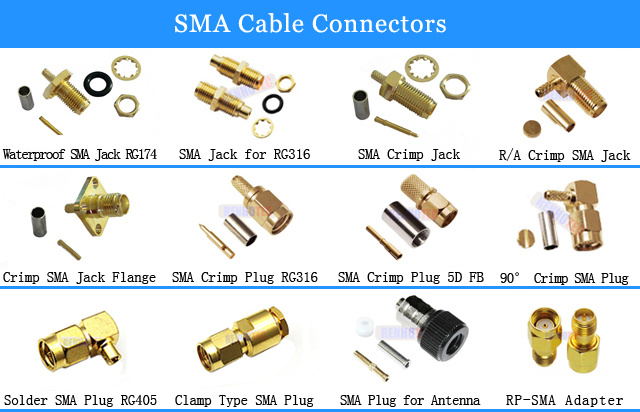

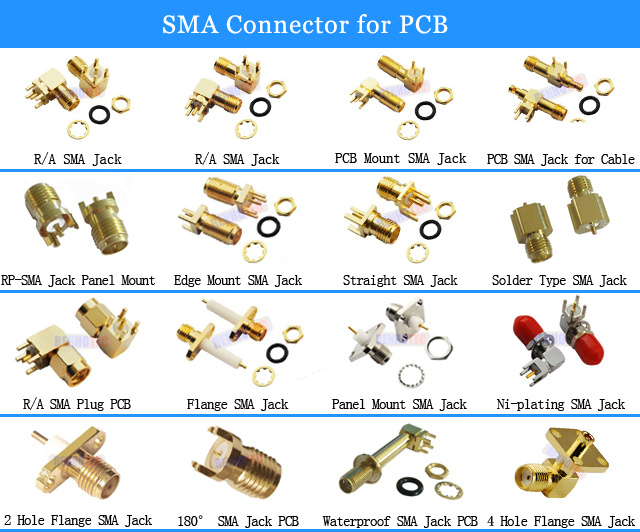

More SMA Female Male Connectors

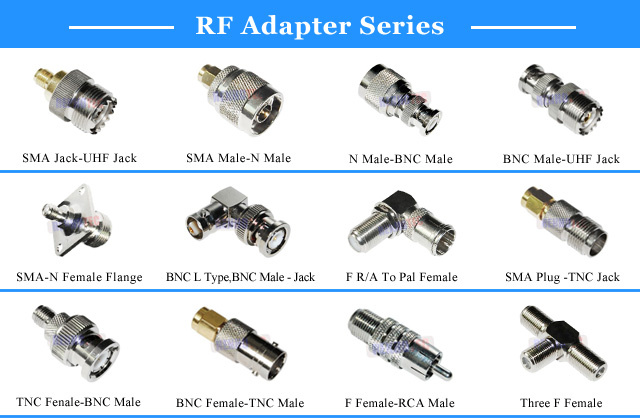

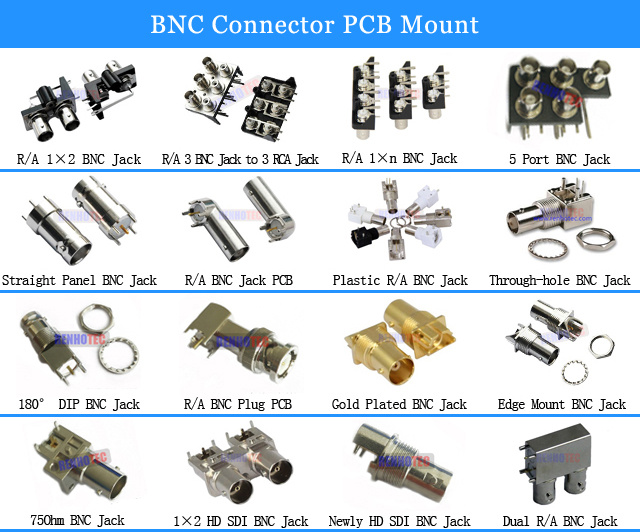

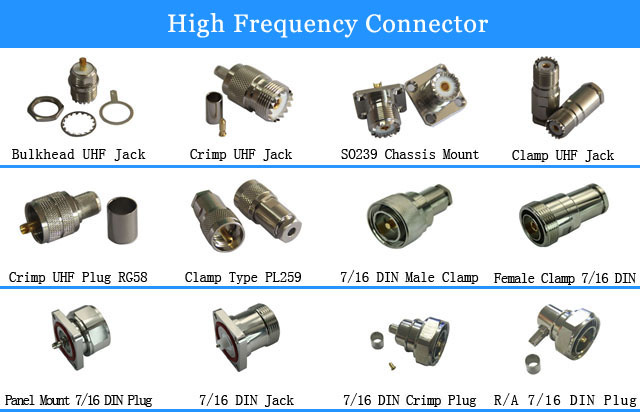

Related RF Coaxial Connectors
