| Prod Model: |
PS-LA6 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Medium: |
Non-Hazardous Gas Only (Air) |
| Electrical Rating: |
250 Ma 250 V~ |
| Pressure Range: |
Positive: 5 ~800 Mbar; Negtive: 10 ~ 800 Mbar |
| Type: |
Mechanical |
| Application: |
Industrial |
| Explosion-proof Type: |
Flameproof |
| Brand: |
Bingo |
Product Description

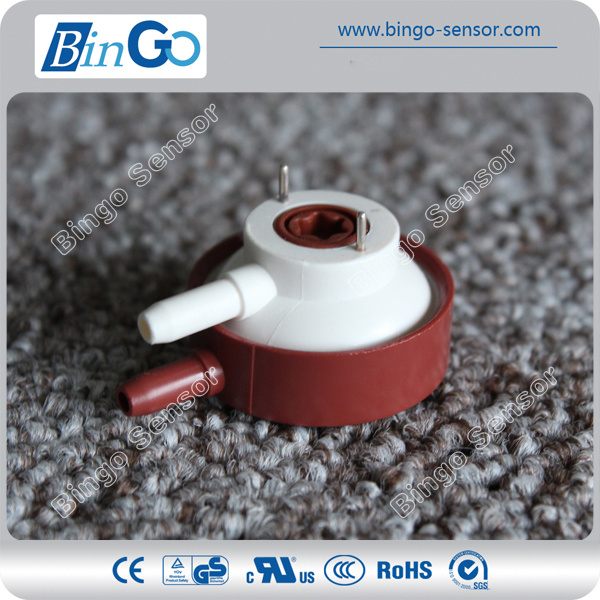

Low Pressure Switch for Cleaner
1. Introduction:
PS-LA5 is designed as an economical interface between pressure systems and Printed Circuit Boards. This switch can be used as a gauge for differential pressure with almost no hysteresis. It is applied to detect both positive and negative pressure. Rotatable pressure port and various terminal styles with wire leads are the main feature.
2. Technical Parameter:
| Model | PS-LA5 |
| Medium | Non-hazardous gas only (air) |
| Electrical feature | 1 Pole NO |
| Electrical rating | 250 mA 250 V~ |
| Ambient temperature | -10°C~+90°C |
| Pressure Range | Positive: 5 ~800 mbar (Max. 1000 mbar) |
| Negtive: 10 ~ 800 mbar (Max. 1000 mbar) |
| Membrane material | Silicone (Nitrile, EPDM, Perbunan on request) |
| Electrical connections | Solder pins 1.0 mm, 12.5mm distance between each other pin; or with different type wire leads and terminals on request. |
| Pressure connections | Inlet 4.0 mm or 5.0 mm for tube connection |
3. Our service:
1. Delivery in time,delivery time is 7 days for sample and 15 working days for bulk order;
2. Strong production capacity and strict quality control system;
3. Your inquiry and problems related to our products or prices will be replied in 24 hours;
4. Well-trained and experienced staffs to answer all your inquires;
5. After-sale tracking service for all of our clients;
6. OEM is available; small quantities, mixed bulk orders are also welcome;
7. Payment: L/C, D/A, D/P, T/T, Paypal , Western Union, MoneyGram;
8. Delivery way: UPS, DHL, TNT, FEDEX, EMS, CHINA POST.
4. Guarantee:
1.12 months warranty for most of our products;
2. We will arrange delivery of the goods on time;
3. Within the warranty period, we will bear all the quality problem of our products;
4. Beyond the warranty period, we will despatch the replacement parts to help fix the products, but the parts will be charged;
5. Without any problem, we will gain the feedbacks of our products to help improve better products.
5. How to get latest price from us quickly:
The following technical data is need you to show to us.
1. The working temperature:
2. The workiing pressure:
3. The quantity you want to purchase:
4. Where you use the products to:
