Yueqing Winston Electric Co., Ltd. >> PCB Output Open Frame Power Supply with CE

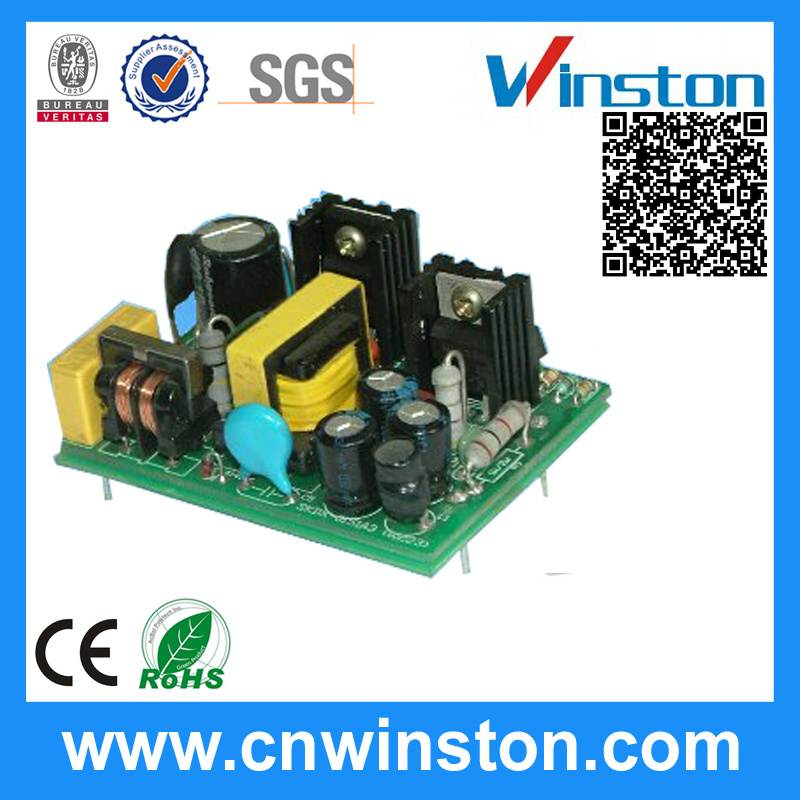

PCB Output Open Frame Power Supply with CE

PCB Output Open Frame Power Supply with CE
Price: US $ 2-7/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 10/Piece
Pay Type: L/C,T/T,Paypal,Western Union
Prod Model: NFM-05-15
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Eastern Asia,Western Europe
Output Frequency: 47-63Hz
Output Current: 0.33A
Size: 58*45*19.1mm (W*H*D)
Certificates: CE,Rhos
Antistop: Power Supply
Workmanship: The Exquisite German Technology
Manufacturer: OEM
Condition: Original New
Output Type: Single
Warranty: 2 Years
Output Power: 1 - 50W
Input Voltage: Full Range
Connection Mode: Parallel Switching Power Supply
Starting Mode: Self-excited Switching Power Supply
Voltage Regulating Mode: Width Modulation Type
Power Supplying System: Terminal Power Distribution Equipment
Certification: RoHS
Brand: Winston

Product Description

Features:

1.Universal AC input / Full range
2.Protections: Short circuit / Overload / Over voltage / Over temperature
3.Ultra-miniature size, light weight
4.Cooling by free air convection
5.Isolation class 2
6.Medical safety approved (2 × MOPP between primary to secondary) (Note.7)
7.No load power consumption < 0.5W
8.100% full load burn-in test
9.Fixed switching frequency at 67KHz
10.High reliability
11.2 years warranty




MODEL

NFM-05-15

OUTPUT

DC VOLTAGE

15V

RATED CURRENT

0.33A

CURRENT RANGE

0 ~ 0.33A

RATED POWER

4.95W

RIPPLE & NOISE (max.)    Note.2

150mVp-p

VOLTAGE ADJ. RANGE

13.5 ~ 16.5V

VOLTAGE TOLERANCE   Note.3

±1.0%

LINE REGULATION

±0.5%

LOAD REGULATION

±0.5%

SETUP, RISE TIME

1000ms, 20ms/230VAC         1000ms, 20ms/115VAC at full load

HOLD UP TIME (Typ.)

100ms/230VAC   24ms/115VAC at full load

INPUT

VOLTAGE RANGE

85 ~ 264VAC         120 ~ 370VDC

FREQUENCY RANGE

47 ~ 440Hz

EFFICIENCY (Typ.)

74%

AC CURRENT (Typ.)

0.12A/115VAC         0.08A/230VAC

INRUSH CURRENT(Typ.)

COLD START 25A/115VAC         45A/230VAC

LEAKAGE CURRENT   Note.5

Touch current < 80µ A/264VAC

PROTECTION

OVERLOAD

Above 105% rated output power

Protection type : Hiccup mode, recovers automatically after fault condition is removed

OVER VOLTAGE

17.25 ~ 20.25V

Protection type : Shut off o/p voltage, clamping by zener diode

OVER TEMPERATURE   Note.5

Tj 145°C typically (U1) detect on main control IC

Protection type : Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.

-20 ~ +70°C (Refer to Derating curve)

WORKING HUMIDITY

20 ~ 90% RH non-condensing

STORAGE TEMP., HUMIDITY

-40 ~ +85°C , 10 ~ 95% RH

TEMP. COEFFICIENT

±0.03%/°C (0~50°C)

VIBRATION

10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC (Note 4)

SAFETY STANDARDS

ANSI/AAMI ES60601-1, TUV EN60601-1, IEC60601-1 approved

WITHSTAND VOLTAGE

I/P-O/P:4KVAC

ISOLATION RESISTANCE

I/P-O/P: 100M Ohms / 500VDC / 25°C/ 70% RH

EMC EMISSION

Compliance to EN55011(CISPR11) ,EN55022 (CISPR22) Class B, EN61000-3-2,-3

EMC IMMUNITY

Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, EN60601-1-2, EN61204-3, medical level, criteria A

OTHERS

MTBF

738.7Khrs min. MIL-HDBK-217F (25°C )

DIMENSION

58*45*19.1mm (L*W*H)

PACKING

0.03Kg; 120pcs/4.6Kg/0.97CUFT

NOTE

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance: includes set up tolerance, line regulation and load regulation.
4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directive.
5. The over temperature protection (OTP) is the built-in function of the control IC (U1). The activating level described above is based on the specification provided by the IC manufacturer.
6. Touch current was measured from primary input to DC output.
7. Suitable for BF application with appropriate system consideration

PS:If you can't find the exact type of your product.Please don't rush to go away.Contact me and your questions will be replied ASAP.Thank you for your time.
