| Prod Model: |
Rigao PCB&PCBA |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Copper Thickness: |
0.5oz-4oz |
| Board Thickness: |
0.15mm |
| Min. Line Width: |
0.1mm |
| Min. Line Spacing: |
0.1mm |
| Engineering Support: |
Support |
| PCB Testing: |
E-Testing |
| Color & Page: |
Multicolor |
| Color Of Silk-Screen: |
White,Black,Silver |
| Coler Of Solder Mask: |
Green, Black, Blue, White, Y |
| Samples Run Acceptable: |
Mass Production Welcome |
| Type: |
Flexible Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Aluminum Covered Copper Foil Layer |
| Flame Retardant Properties: |
V0 |
| Brand: |
Rigao |
Product Description
Welcome To China Visit Our Company Wesbite !

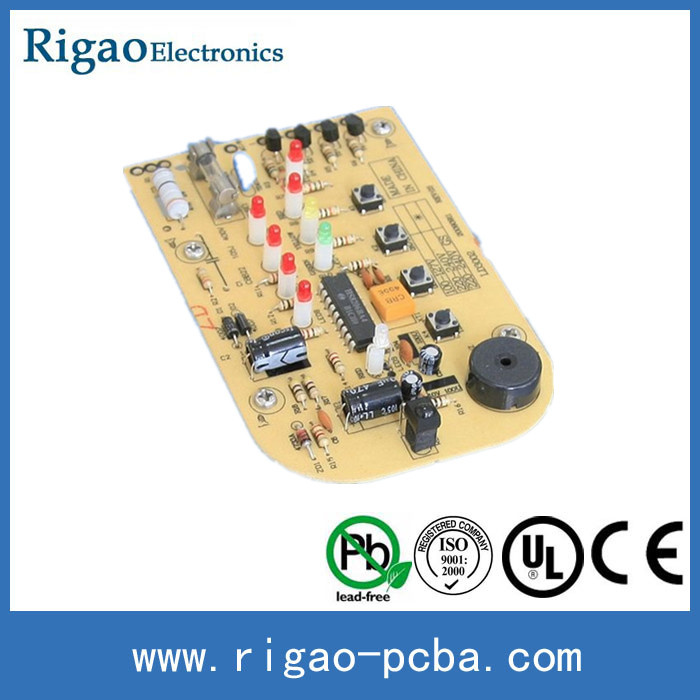

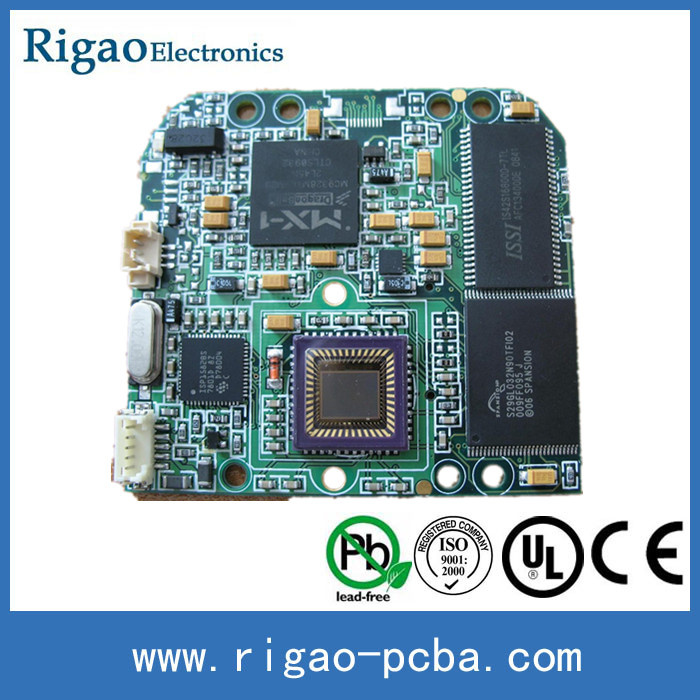

PCB&PCBA Board Assembly Design In China
Company Information
Shenzhen Rigao Electronics Co., Ltd apply itself to the manufactures and productions of printed circuit boards and flexible Printed Circuit Board(PCB) including buried blind via as well as Printed Circuit Boards(PCBs) SMT assembly for over years with our seasoned teamwork, the company now occupies a 5000sq.m manufacturing facility which our team provides world class expertise in PCBs, flexible PCBs and flex-rigid circuits design and manufacture across a broad base of technologies here. We understand the importance of our role in your product's success. From initial product conception to prototyping to full production, Rigao Corporation Limited can truly be your reliable manufacturing partner.
Specifications
Quick turn quality printed circuit board PCB
1. RoHS & Lead Free
2. UL & ISO certified
3. Quality & service
4. Quick turn
Product Description
Item | Technical Index |
Layer | 1-22 layers(Rigid Board) |
1-10 layers(Flexible Board) |
Multi-layer |
Base Material | FR4, PI, PET |
Cooper Thickness | Rigid PCB | 0.5Oz to12Qz |
Flexible PCB | 18μm-105μm |
Min. Hole Size | 0.2mm |
Min. Line Width | Rigid PCB | 0.1mm |
Flexible PCB | 3mil |
Min. Line Spacing | Rigid PCB | 0.1mm |
Flexible PCB | 3mil |
Surface Treatment | OSP/HASL Lead Free/ ENIG/Immersion Gold/Immersion Tin |
External Treatment | Precise V-cut, externally pressed or milled, laser appearance |
External Tolerance | ±0.05mm |
Solder Mask Color | Blue/White/Green/Red/Yellow |
Welding Resistance Film | Covered in layers with PI and PET film |
Sensitive welding resistant oil/ welding resistant dry film/silk printing oil/separable welding resistant oil |
Type of oil | Applicable to silk printing in multi-colors |
FAQ:
Q: Why don't person reply to me?
A: Our person is 24hours on-line. When nobody reply you , please leave your requirements on e-mail or chat tool, we will reply you as soon as possible.
Q:Can you guarantee your quality?
A:Of course. We are the manufacture factory. More important, we put a high value on our reputation. Best quality is our principle all the time. You can be assured on our production completely.
Q:How do you make your price?
A: We make the price according to our comprehensive costing. And our price will lower than the trade company because we are manufacture. You will get competitive price and better quality.
Q:What does anytcl need for a customized Electronic pcb assembly order?
A:When you place a Electronic pcb assembly order, the customers need to provide Gerber or pcb file. If you do not have the file in the correct format, you can send all the details related to the products.
Q:How do you ship the goods and how long does it take?
A: We usually ship by UPS, TNT ,DHL, FEDEX.
Our Services
1. Your inquirey related to our products or price will be replied within 24 hours.
2. All your inquireies will be well explained by our experienced staff.
3. OEM&ODM,also provide customized service
4.Distributorship is available for your unique design and some our current
models.
5.We will keep secret for customer sale area,design ideas and all other private information
We have NO MOQ,all of your order, we will be attention.Even 1 piece, we care!
Shenzhen Rigao Electronics Co., Ltd. is a newly company which founded in 2008. At beginning we were only focus on manufacturing Printed Circuit Boards. But now we has become a rapidly growing worldwide provider of solutions in three principal areas Printed Circuit Boards, PCB Assembly and Components Procurement. We are dedicated to building solid partnerships and providing flexible solutions to enable our customer's success.
As an experienced PCB and PCBA manufacturer, we provide prototypes, small volume, medium volume, and high volume projects. We are able to guarantee a complete service with comprehensive technical backup, offering acost advantage and scheduled delivery.
Our main services include offering
Rigid PCB (up to 64 Layers)
Flexible PCB/FPC (1~6 Layers)
Rigid-Flex (3~18 Layers)
Aluminum-based PCB (1~6 Layers)
High Density Interconnection/HDI PCB
High frequency material PCB
DIP, COB, SMT assembly Services
Components Sourcing
We have since successfully completed over 5, 500 projects and have nearly 300 satisfied repeat customers. Our customers are from over 30 countries in various industries, including computer, home appliances, consumer products, telecom, scientific research institutes, etc.
Our manufacturing and quality control processes are ISO 9001: 2000 certified and conform to IPC-A600(PCB) and IPC-A610 (PCB Assembly) standards. All our PCB/PCBA are UL certified and RoHS compliant.
Our Principle is simple, "Act by heart, Make the best. "
Our strength is distinct, "Years of experiences in PCB and PCBA field"
Our Goal is achievable, "To be the most reliable supplier of PCB and PCBA. "
Our orientation is clear, "Focus on prototypes and low to medium volume business "
Your trust and support would be a solid back-up for our business. We sincerely hope to provide you with high-quality products and satisfactory services.
We are look forward to working with you!
