| Prod Model: |
W19 |
| Certification: |
UL TUV CQC |
| Installation Type: |
PCB |
| Contact Material: |
Agsno2 Agni |
| UL Insulation Class: |
F |
| Operate Time: |
Max.10ms |
| Release Time: |
Max.5ms |
| Weight: |
3G |
Product Description
Basic Info

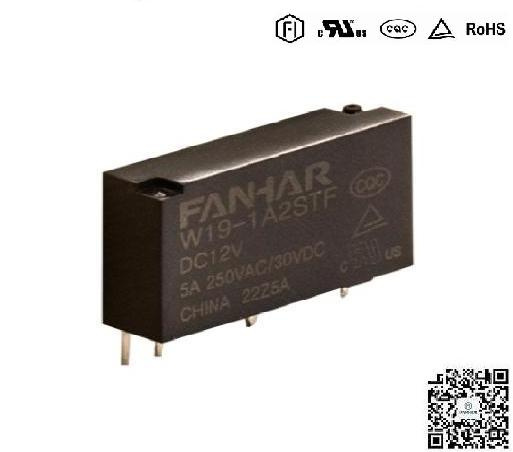

Model NO.: W19
W19 = Vertical installation W19F = Horizontal Installation
PCB: 1 = type1 2 = type 2
Contact Form: 1A = 1 OPEN
Product protective: S=Sealed Nil= Soldered
Contact material: T=AgSnO2 Nil:= AgNi
Coil Power: Nil= 120mW H = 180mW
Insulation System:Nil:B grade F= F grade
Dimension: 20*5*12.5 MM
Weight: Approx 3g
Trademark: FANHAR
Origin: China
Product Description
1. 5A contact switching capability
2. Creepage distance and spacial distance are greater than 3.2mm.
3.UL insulation class : F grade.
4. High sensitivity, coil power is only 120mW.
Contact Data:
| Contact Form | 1A |
| Rated load | 3A 250VAC/30VDC
5A 250VAC/30VDC |
| Max Switching Voltage | 277VAC/30VDC |
| Max Switching Current | 5A |
| Max Switching Capacity | 1250VA/150W |
| Min Allowing load | 5VDC 100mA |
| Contact Resistance | 100mΩ (at 6VDC 1A) |
| Insulation Resistance | 1000MΩ (at 500VDC) |
General Data:
| Withstand Voltage Between open contacts | 1000VAC 1min |
| Between coil and contacts | 3000VAC 1min |
| Withstand impact voltage | Between coil and contacts 6kv(1.2X50us) |
| Operate Time | Max.10ms |
| Release Time | Max.5ms |
| Mechanical life | 20,000,000 ops ON/OFF = 0.1s/0.1s |
| Electrical life | 3A 250VAC/30VDC 100,000 ops ON/OFF=1s/9s
5A 250VAC/30VDC 50,000 ops ON/OFF=1s/9s |
Impact Resistance Misoperation
Durability | 100m/s² Approx10G
1000m/s² Approx100G |
Vibration Resistance Misoperation
Durability | 10 - 55 Hz 1.5mm Double Amplitude
10 - 55 Hz 1.5mm Double Amplitude |
| Temperature Range | -40ºC to +85ºC |
| Humidity | 5% to 90% |
| Installation type | PCB Mounting |
| Certification | TUV:R50346402
CQC:CQC16002144390 |
Coil Data:
Standard:
| Coil rated voltage | Operating
voltage | Releasing
Voltage | Coil rated
Current
(±10%) | Coil resistance(±10%) | Rated consumed power | Allowing voltage |
| DC 3V |
Below 75%
rated voltage (initial) |
above 5%
rated voltage (initial) | 40mA | 75Ω |
120mW |
90-130 %
Rated voltage |
| DC 5V | 24mA | 208.3Ω |
| DC 6V | 20mA | 300Ω |
| DC 9V | 13.3mA | 675Ω |
| DC 12V | 10mA | 1200Ω |
| DC 15V | 8mA | 1875Ω |
| DC 18V | 6.7mA | 2700Ω |
| DC 24V | 5mA | 4800Ω |
Sensitive:
| Coil rated voltage | Operating
voltage | Releasing
Voltage | Coil rated
Current
(±10%) | Coil resistance(±10%) | Rated consumed power | Allowing voltage |
| DC 3V |
Below 75%
rated voltage (initial) |
above 5%
rated voltage (initial) | 60mA | 50Ω |
180mW |
90-130 %
Rated voltage |
| DC 5V | 36mA | 139Ω |
| DC 6V | 30mA | 200Ω |
| DC 9V | 20mA | 450Ω |
| DC 12V | 15mA | 800Ω |
| DC 15V | 12mA | 1250Ω |
| DC 18V | 10mA | 1800Ω |
| DC 24V | 7.5mA | 3200Ω |
