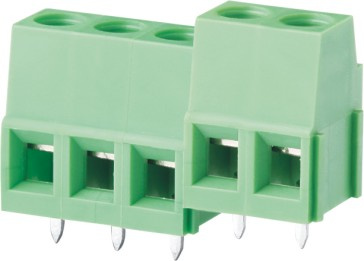

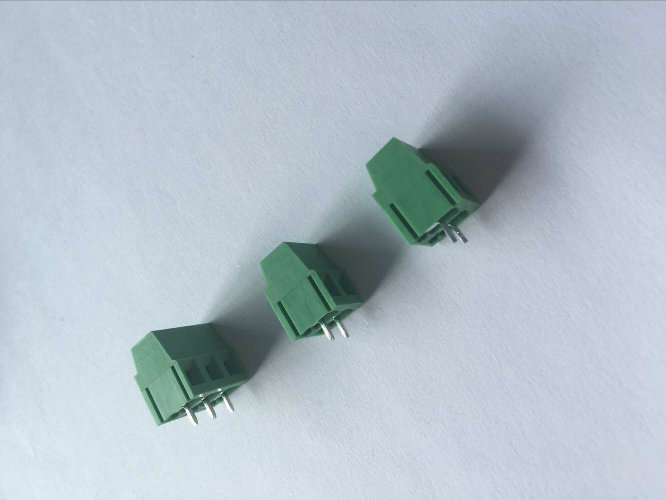

PCB Screw/Rising Clamp Terminal Block Can Be Spliced (WJEK508-5.08)

Name: PCB Screw/Rising Clamp Terminal Block Can Be Spliced (WJEK508-5.08)
Brand: all-electronics-online.com
SKU: 794807985
Availability: InStock
Rating: 4.4 (52 reviews)

Price:	US $ 0.01-0.05/Piece
Min Order:	2000/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	WJEK508-5.08mm
Pitch:	5.08mm
Rated Voltage:	300V
Rated Current:	15A
Strip Length:	6-7mm
Application:	PCB
Environmental Protection:	Resistance to Environmental
Connection Mode:	In-Line Connector
Shape:	Rectangle
Contact Termination Form:	Welding Connection
Brand:	Wanjie

Product Description

Why choose us:
1. Good reputation
2. The quality of the products
3. Competitive price
4. Quality of Service
5. Free samples
6. Quick feedback

CIXI WANJIE ELECTRONIC CO., LTD was founded in 1992 and specializes in the production of terminal blocks. The company have passed the ISO9001:2008, ISO14001, OHSAS18001 quality management system and our products have passed UL, VDE, TUV, RoHS, CQC, CB, CE certification.

For better service to the customers, we can also design, develop and produce according to customer's requirement for OEM/ODM products.With the advanced administration system, good quality, competitive price and good service, our products are sold far to America, Europe, Middle East, Asia, Africa etc and get good comment from the customers.

Hope to cooperate with you!
www.china-wj.com

WJEK508-5.08

Material
Screws	M2.5 Steel Zn plated
Clamp	Brass, Ni plated
Wire guard	Brass, Sn plated
Housing	PA66, UL94V-0

Electrical
Rated voltage	300V
Rated current	15A
Wire range	30-14AWG 2.5mm²
Contact resistance	20mΩ
Insulation resistance	500mΩ/1000V
Withstanding voltage	AC 2000V/1 Min

Mechanical
Temp. Range	-40º C~ +105º C
MAX Soldering	+250º C, for 5 Sec
Torque	4.08kgf-cm/0.4Nm/3.54Lbin
Strip length	6-7mm

If you can't find the exact product you need in the pictures, please don't go away.

Just contact me freely or send your sample and drawing to us.

We will reply you as soon as possible.

Cixi Wanjie Electronic Co., Ltd., is founded in 1992 and specializes in making terminal block and solderless breadboard. We have passed the ISO9001: 2000 quality management system and the products have been approved by VDE, UL, CE, SGS, CQC, RoHS and TUV.

With many years development, we have built an excellent management team and have our own R & D center, mould production, plastic injection, hardware stamping and assembling workshop. So we will give you the best offer also we can design, develop and produce the products according to customers' Request.

We have adopted advanced production and test equipment, so that we could offer good quality and more competitive products. For better service to the customers, we can also design, develop and produce according to customer`s requirement for OEM/ODM products.

With the advanced equipment and production line, good quality, competitive price and good service, our products are sold far to America, Europe, Middle East, Africa etc and receive good comments from the customers. So the company shows warm welcome to consult the business with all the customers both at home and abroad.

All the staff of company will strive together for a better tomorrow and show warm welcome to the customers of allover the world.
