| Prod Model: |
KF127S-3.5/3.81 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Green |
| Current: |
10A |
| Voltage: |
300V |
| Wire Range: |
26-16AWG |
| Poles: |
2p-24p |
| Pin Spacing: |
3.5/3.81mm |
| Certificate: |
CE,RoHS |
| Environmental Protection: |
General |
| Shape: |
Rectangle |
| Application: |
Battery |
| Contact Termination Form: |
Screws Fixed |
| Connection Mode: |
Threaded Connection |
Product Description
1.Product specifications

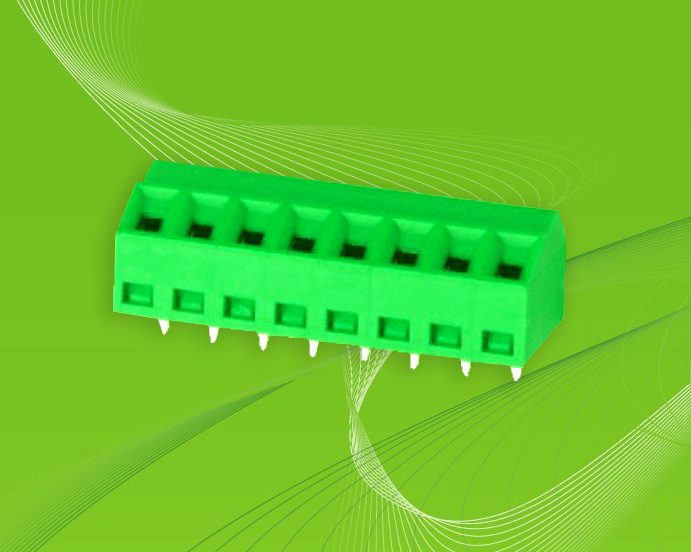

KF127S-3.5/3.81
A wide selection of industry standard and unique terminal blocks to support a wide range of wire-to-board configurations.
This Terminal Block is preferred for applications where the direction of connections are 45deg .
Wiring can be done with the help of screws .
2.How to order
A. Part number + Poles + Color + Screw type + Quality type + Quantity , + other requirements
B. Sample order available
C. Product test and custom design available.
3.Payment
A. T/T, L/C, Western Union, Paypal, Escrow
B. EXW, FOB, CFR, CIF, DDU, FCA
C. ≤USD10,000 , 100% deposit ; ≥USD10,000 , 30-50% deposit
4.Packing
A. Plastic bag + box + carton, desiccant available
B. Special package requirements available
5.Shipping
A. DHL, TNT, UPS, Fedex, EMS, ARAMEX, SF, other service available
B. Small order delivered within one week, bulk order within one month
6.Certificate
ISO 9001, ISO14001, CE,ROHS
7.About us
Cixi Kefa Electronics Co., Ltd is a manufacturer Founded in 1990 which is a new products development, mass-producing and branding sales' electronic components company, specializing in Terminal block, connectors and precision moulds.
Kefa covers an area of 10000sqms with a building area of 1500sqms, having more than 500 employees, including research and development staff 80.Kefa have established a series of strong departments, like R&D center, Mould workshop, Auto-tapping and Auto assembly. Our R&D center is equipped with advanced CIMS system, Mould workshop equipped with hundreds of high precision devices, like Mitsubishi, etc. to maintain and enhance the workmanship of precise injection, punching, die casting, and cutting. Meanwhile to upgrade the competitiveness in keeping the quality, cost reduction from Computerize working and auto production artwork.
We owned professional laboratory acknowledged by VDE, UL. Our factory have been granted ISO9001, ISO14001 management system certification and we have developed more than 400 types and 5000 specifications of products, our products have been approved by CE,TUV,ROHS,CQC,CB,UL and VDE. We well cooperating with more than 1000 clients in the world, some are the top of world 500 enterprises.
The company pays more attention on the innovation management, and the tenet of the company lies in creating a harmonious situation with the related people and things. Self-discipline and social commitment would embrace everything.
|
Electrical |
|
|
|
|
|
|
|
Wire Range |
|
28-16AWG |
|
Rated Current |
|
10A |
|
Rated Voltage |
|
300V |
|
With Standing Voltage |
|
AC1250V/1min |
|
Mechanical |
|
|
|
|
|
|
|
Temperature Range |
|
-40deg~+105deg |
|
Max Soldering |
|
+250deg for 5 sec. |
|
Torque |
|
0.2Nm(1.8 lb.in) |
|
Strip Length |
|
5-6mm |
|
Material |
|
|
|
|
|
|
|
Housing |
|
PA66.UL94V-0 |
|
Pin Header |
|
Tin-plated brass |
|
Wire Cage |
|
Ni-plated brass |
|
Screws |
|
M2,Zinc-plated steel |
|
Demension |
|
|
|
|
|
|
|
Poles |
|
2P-24P |
|
Pitch |
|
3.5/3.81mm |
