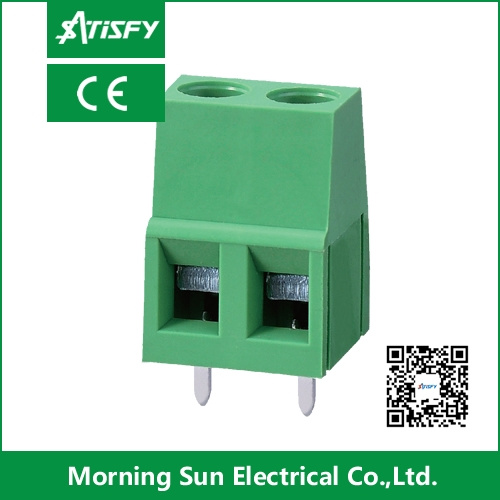

PCB Screw Terminal Block

Prod Model:	LT128
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
High Quality Competiivei Prices:	9.50mm Pitch,5.00mm Pictch,8.25mm Pictch
Application:	Wer Supply
Environmental Protection:	General
Connection Mode:	Push-Pull Connection
Shape:	Rectangle
Contact Termination Form:	Screws Fixed
Brand:	Satisfy

Product Description

Our barrier terminal block can be OEM or Non-standard order,customized for different requirement.
Widely used in communication devices,instruments,meters,compter,program-control devices,alarm,lighting,elevator controller,AC devices and appliance etc.
we specialize in the production of the barrier terminal block,PCB terminal,AC-DC switching power converter and kinds of fuse have a complete industrial chain from mold design,copper processing,quality controlling and timely After-Sales services.On the base of super quality,competitive prices, we are gaining good credit among our customers and gettting repeated orders from our old and new customers.

Pitch	5.0/7.50mm
Poles	2P,3P
Srews	M2.50 Steel Ni plated
Reed	Phosphor bronze ,Ni plated Or Stainless steel
Pin Herder	Brass,Sn plated
Housing	PA66,UL94V-0
Electrical data
Rated voltage	300V
Rated current	10A
Wire range	24-12AWG
Withstanding voltage	AC1500V/Min
Mercanical data
Temp.range	from -30ºC to 120ºC
Max soldering	250ºC 5 Sec
Torque	0.4N.m/3.6Lb.in
Strip length	5-6mm
