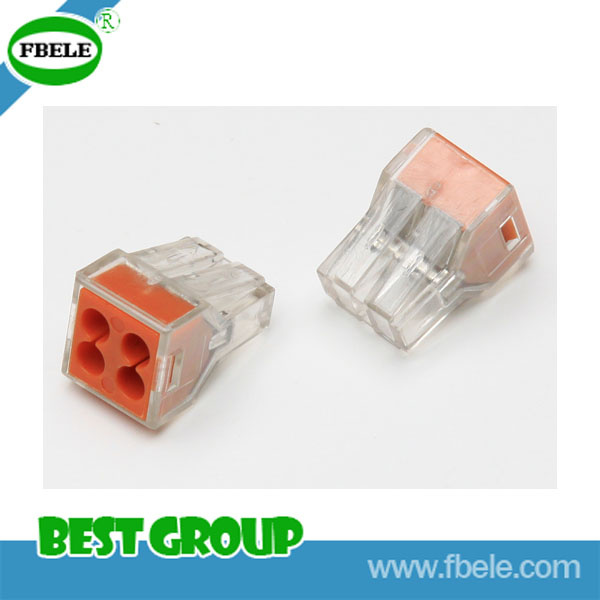

PCB Screw Terminal FB218-4

Prod Model:	FB218-4
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	Battery
Environmental Protection:	General
Connection Mode:	Push-Pull Connection
Shape:	Rectangle
Contact Termination Form:	Welding Connection
Brand:	Fbele

Product Description

Material
screws:m2 steel zinc plated
wire guard:phosphor bronze,ni plated
pin header:brass,tin plated
housing:PA66,UL94V-0

Electrical
rated voltage:300V
rated current:10A
contact resistance:20mΩ
insulation resistance:5000MΩ/1000V
withstanding voltage:AC2000V/1Min
wire range:24-18AWG 1.0mm2

Mechanical
temp.range:-40c~+105c
max soldering:+250c for 5 sec
torque:0.2nm(1.7lb.in)
strip length:4.5-5mm
20 years experience on electronic components included:
1. Ultrasonic sensor   2. BUZZER  3.SPEAKER 4. Electret Condenser Microphone 5. USB Connectors
6. Fuse & Fuse Holders 7. Switches 8. Battery Holder and Battery Clips 9. Siren 10. Terminal Blocks
Major market : North America, South Asia, Europe, Eastern Asia
who we are,and what we can do for you:
 1: we can supply over 2000 kinds of products, new products updated every month!!
 2: Good quality :85% of products have UL CE ROHS certificate. ISO9001:2008.
 3: Competitive price:  we can help you to reduce 20% cost in the following 3 month.
 4: Delivery time 3-15 days, On-Time delivery.
 5: we have high ability to make new mould for non-standard products
 6: OEM/ODM acceptable!
 7: Free samples will be sent for your evaluation.
8: 20 years' industry experience with over $50 million in annual exports.
 9: Top Supplier of electronic components in the world.
