| Prod Model: |
hc1268r2w |
| Circuit Resolution: |
50um/50um |
| Exposer Size: |
1240*680mm |
| Basic Panel Thickness: |
0.075~10mm |
| Energy Informity: |
90% |
| Application: |
Dry Film, Wet Film, Solder Mask |
| Vacuum Degree: |
Less Than -90kpa |
| Optical Glass: |
Mylar to Glass |
| Exposure Control: |
Adjustable |
| Exposure Time: |
Adjustable |
| Light Resource: |
Cold Light |
| Page: |
Double Faced |
| Automatic Grade: |
Semiautomatic |
| Product Type: |
Daily Use |
Product Description

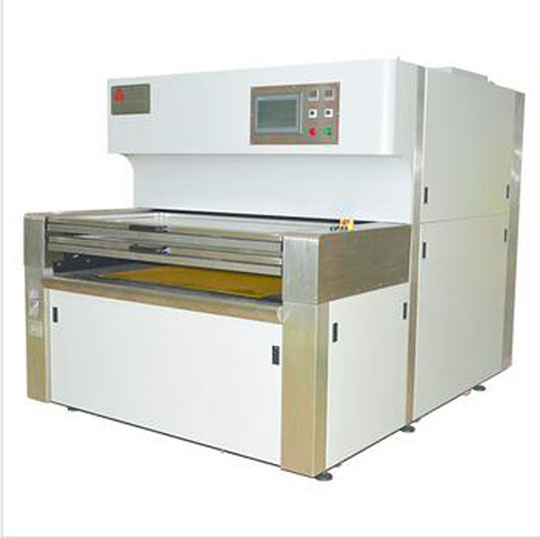

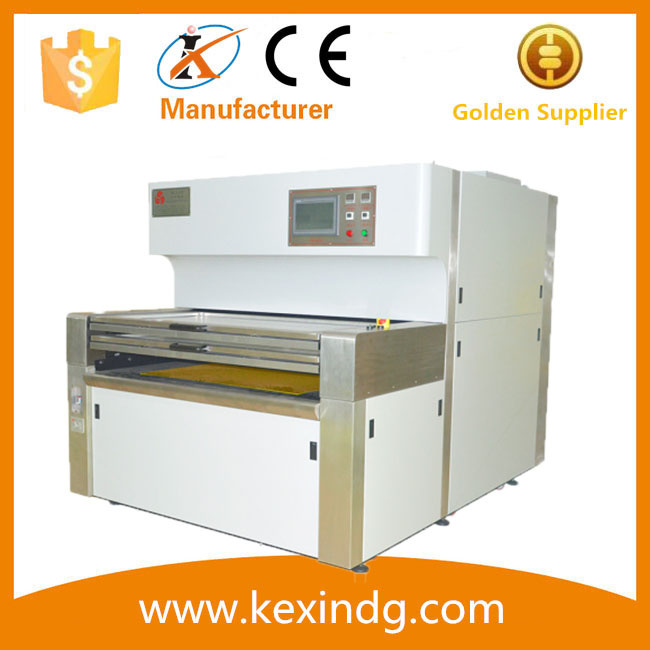

pcb solder mask uv led exposure machine
| Specification: | | | | | | | | | |
| 1. light source style: cold light LED | | | | | | | |
| 2. Exposure Energy Control: adjustable in the range of 1~100% | | | | |
| 3. Exposure time: 10~35 Seconds adustable | | | | | | |
| 4. Effective exposure area: 1300mm*680mm | | | | | | |
| 5. Cooling system: constant temperature ice water cooling and efficient air cooling cycle system |
| 6. Machine size: 2450*1840*1700mm | | | | | | | |
| 7. Optical glass: Mylar film and glass | | | | | | |
| 8. Machine weight: 1100KG | | | | | | | | |
| 9. Vacuum degree: ≤-90Kpa (agjustable) | | | | | | |
| 10. Base board thickness: 0.075~3.2mm | | | | | | | |
| 11. Operation interface: 10" touch screen, A8 core, | | | | | |
| 12. Exposure mode: double side exposure | | | | | | |
| 13. Worktable temperature: environment temperature+5ºC | | | | | |
| 14. Solder Mask Processing ability: 75μm/75μm | | | | | | |
| 15. Protection Function: LED temperature warning and short & overload protection | | |
| 16. energy uniformity: more than 90% | | | | | | | |
| 17. Power requirement: 40A/220V/50HZ | | | | | | | |
| 18. Power consumption: 3.5~5.5 KWH per hour, counting by 80A Ammeter | | | |
| 19. Environment requirment: class 1000th dust-free plant, humidity:55%+/-5%, temperature:20ºC±5ºC |
| 20. Warranty: 1 year | | | | | | | | |
